Pace MTS 200 - Electrical Specification; Parts Identification

MTS Systems Operation Manual
©2004 PACE Inc., Annapolis Junction, Maryland Page 4 of 11
All Rights Reserved
Electrical Specifications
MTS 200 1.3 Amp 115 VAC, 60 Hz Max OR .7 Amp, 230 VAC, 50 Hz Max
Fuse: 2 Amp, SloBlo 115 V System - 1 Amp TimeBlo, 230 V System
MTS 300 1.3 Amp 115 VAC, 60 Hz Max OR .7 Amp, 230 VAC, 50 Hz Max
Fuse: 2 Amp, SloBlo 115 V System - 1 Amp TimeBlo, 230 V System
MTS-350 1.3 Amp 115 VAC, 60 Hz Max OR .7 Amp, 230 VAC, 50 Hz Max
Fuse: 2 Amp, SloBlo 115 V System - 1 Amp TimeBlo, 230 V System

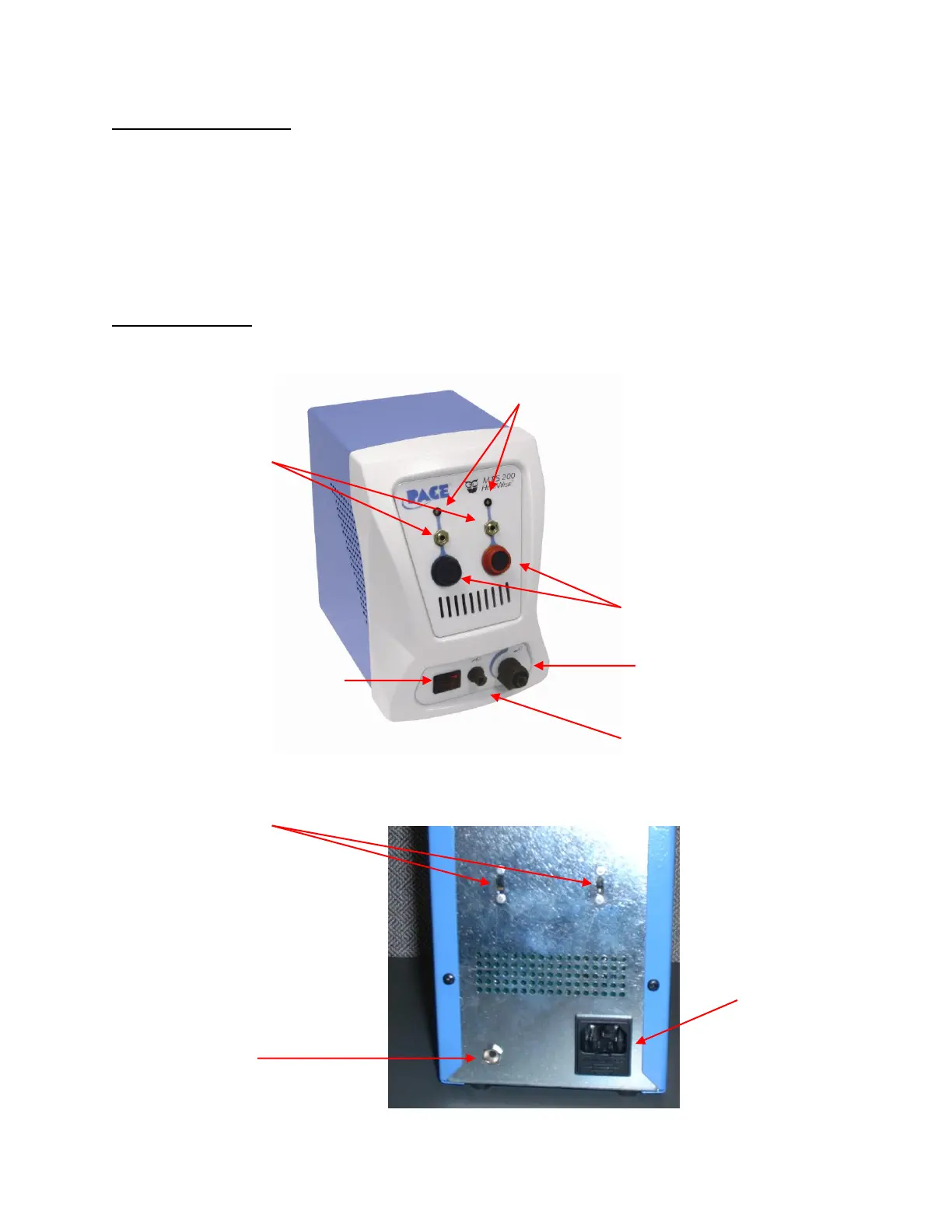

Parts Identification
Power Switch
Power Module Ports
Power Receptacles
LED Indicators
MTS 200 Shown
Setback/Auto-
Off Switches
Earth Ground Receptacle
AC Power Receptacle/Fuse
Holder
Auto Snap-Vac Port
Controllable Pressure
Port
