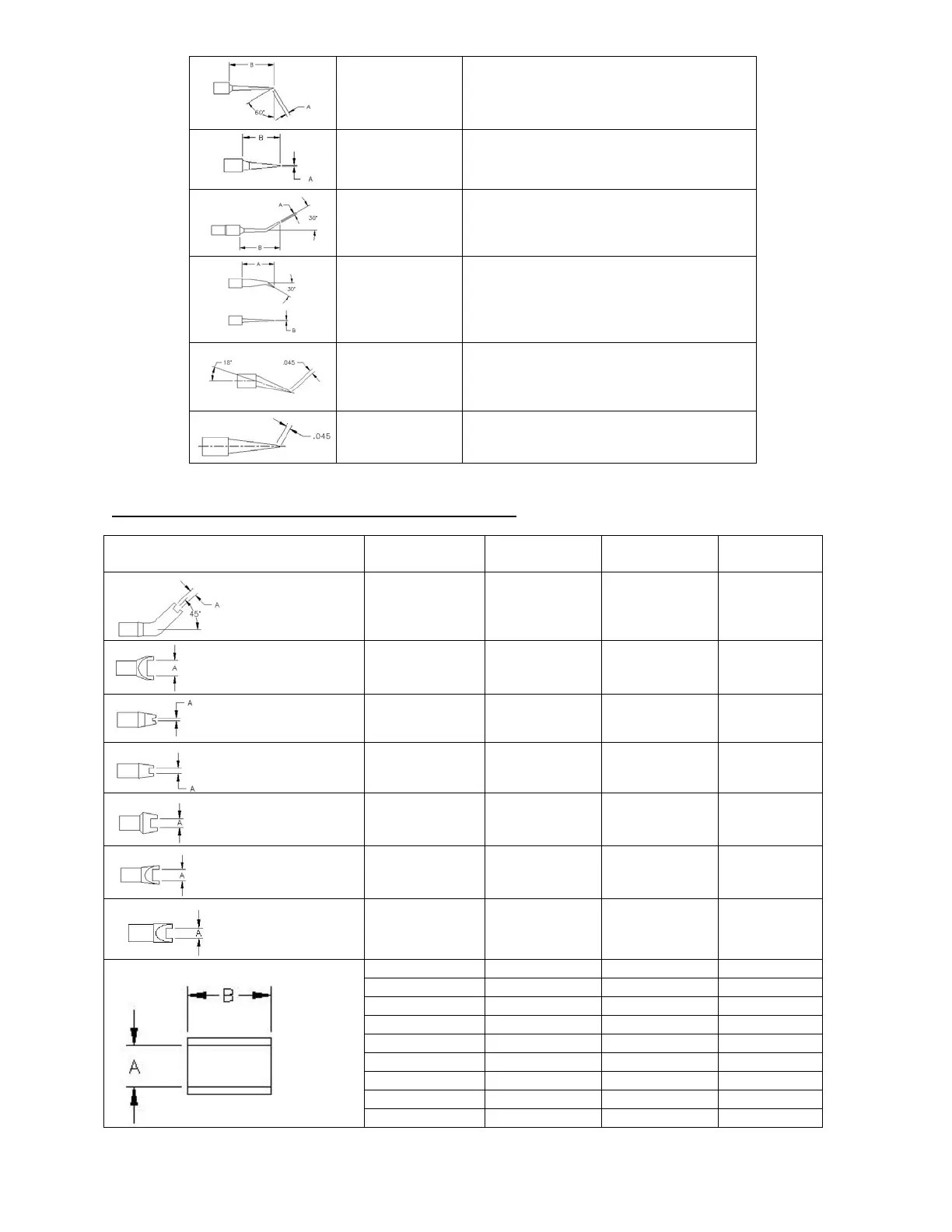

Pace TD-100 - MicroFine and Micro-Wave Tips; Surface Mount Removal Tips; TD-100 Soldering Iron Tips

©2012 PACE Inc., Southern Pines, North Carolina Page 7 of 11
All Rights Reserved
1124-0041-P1
MicroFine Single Sided Chisel, 1.1mm
(.045”)
1124-0042-P1 MicroFine Conical, 0.25mm (.01”)
1124-0043-P1 MicroFine Bent Conical, 0.75mm (.03”)
1124-0044-P1 MicroFine Bent Conical, 0.5mm (.02”)
1124-0045-P1 Angled Micro-Wave Tip
1124-0046-P1 Micro-Wave Tip
Surface Mount Removal Tips for TD-100 Soldering Iron
Component
Type
Dimension A Dimension B Part
Number
Chip 402
Angle
2.2mm (.085”) 1124-0518-P1
Chip 1808
5mm (.195”) 1124-0520-P1
Chip 402
1mm (.04”) 1124-0521-P1
SOT 23
1.8mm (.07”) 1124-0522-P1
SOT 89
2.8mm (.11”) 1124-0523-P1
Chip 1206
3.6mm (.142”) 1124-0524-P1
Chip 0805
2.4mm (.095”) 1124-0525-P1
SOIC 14/16
5.2mm (.205”) 10.5mm (.415”) 1124-0504-P1
SOIC 20
9.6mm (.377”) 13.6mm (.535”) 1124-0505-P1
SOP 28
10.8mm (.426”) 18.6mm (.734”) 1124-0506-P1
SOP 40
11.9mm (.467”) 25.7mm (1.01”) 1124-0507-P1
SOP 44
13.1mm (.516”) 28.4mm (1.12”) 1124-0508-P1
TSOP 56
18.8mm (.739”) 14.1mm (.557”) 1124-0509-P1
TSOP 28
12mm (.471”) 8.5mm (.333”) 1124-0510-P1
SOIC 8
5.1mm (.202”) 4.65mm (.183”) 1124-0519-P1
TSOP 40
18.8mm (.74”) 10.4mm (.410”) 1124-0526-P1
