BOSS 4.5, RF, P3 & P4 OWNERS MANUAL 31
Troubleshooting
If the power wheelchair will not move, check the following.
1. Turn the power switch OFF and then back ON.
2. Check to see that the joystick console is not locked. Refer to unlocking instructions.

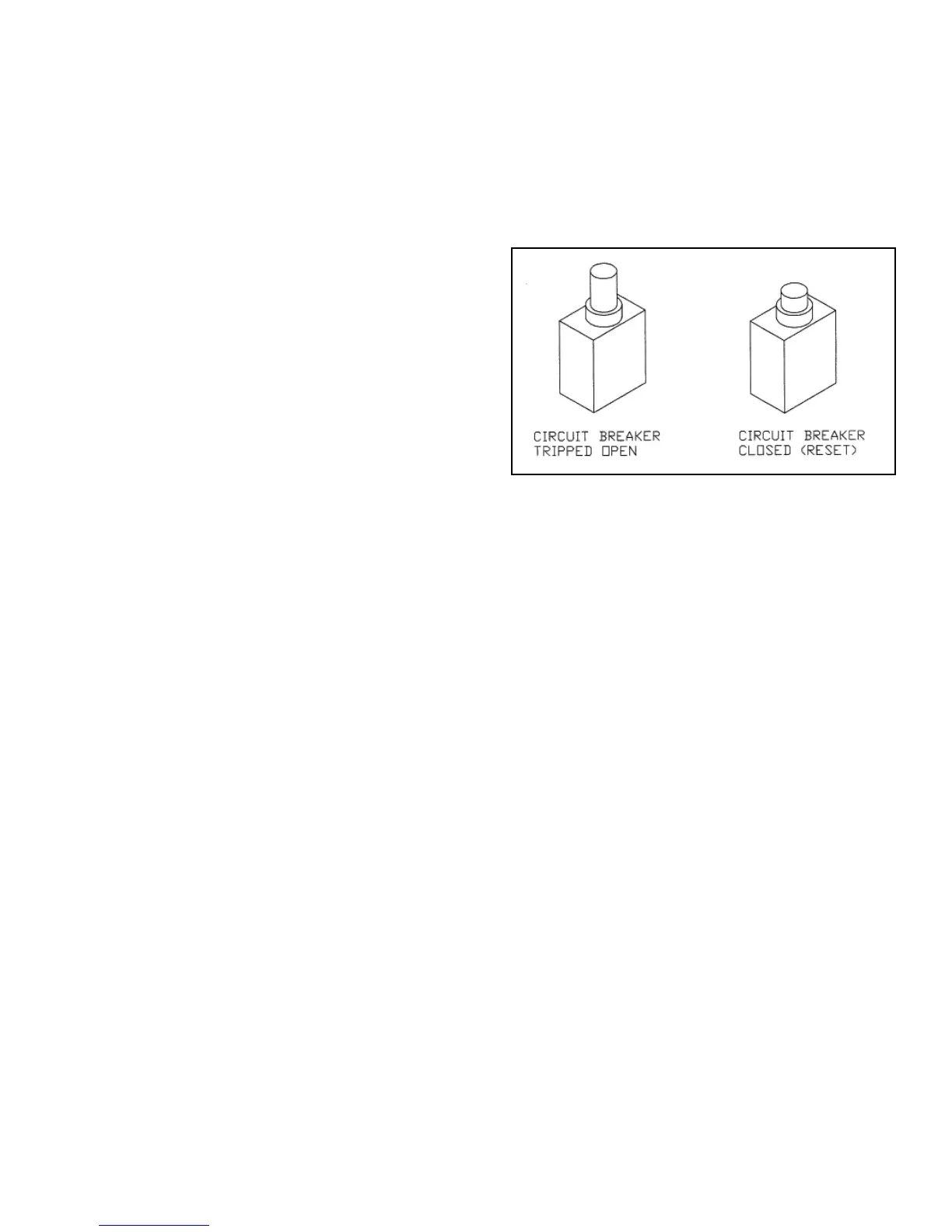

3. There is a visible circuit breaker. It is located on the
front of unit under the seat. You will not see any white
on the button when it is set in the correct operating position.
Also check to see that all of the wires are securely attached
to the box.
4. Check the joystick console plug (located at the rear of
the seat) for proper connection.
5. Check the battery plugs for proper connections.
6. Check the BATTERY indicator for discharged batter-
ies.
7. Turn the power switch OFF and then back ON a second time.
8. If the wheelchair still will not move, check the LED status indicator to see if it indicates a fault and consult
the diagnostic section of this manual or contact your dealer.
