PacketFront CPS 200 - The Status Indicators

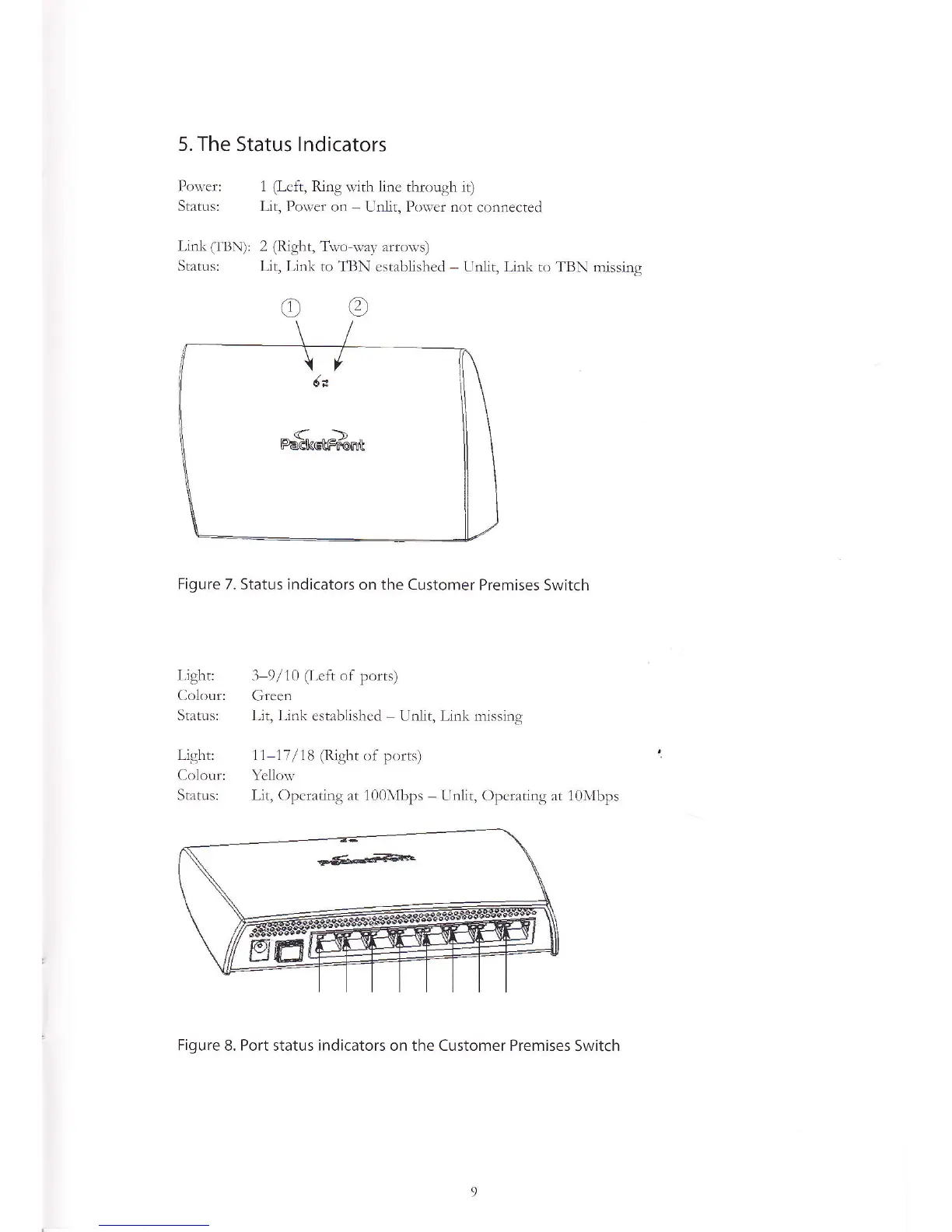

5. The
Status lndicators
Pov,er: 1 (I-cft, Ring
with Lrne through it)
Status: Lit,
Pou'er on
-
Unlit, Po§-er not
connected
L:ink (l'BN): 2 (Right,
Two,rvay affows)
Status: Lit, I
ink to TBN estabLished
-
Unlit, Link to
TBN missing
Figure 7.
Status indicators on the
Customer Premises Switch
Light:
3 9/i0
(l-eft
of ports)
Colour:
Green
Status: lit, I-ink
established UnJrt, Itnk missing
Light:
11-17
/18
(tught
of ports)
Colour; Yeliov
Status: Lit, Operating at 100X{bps
-
Unlit, C)perating at l0Nlbps
o@
Figure
8. Port status indicators on the Customer Premises
Switch
