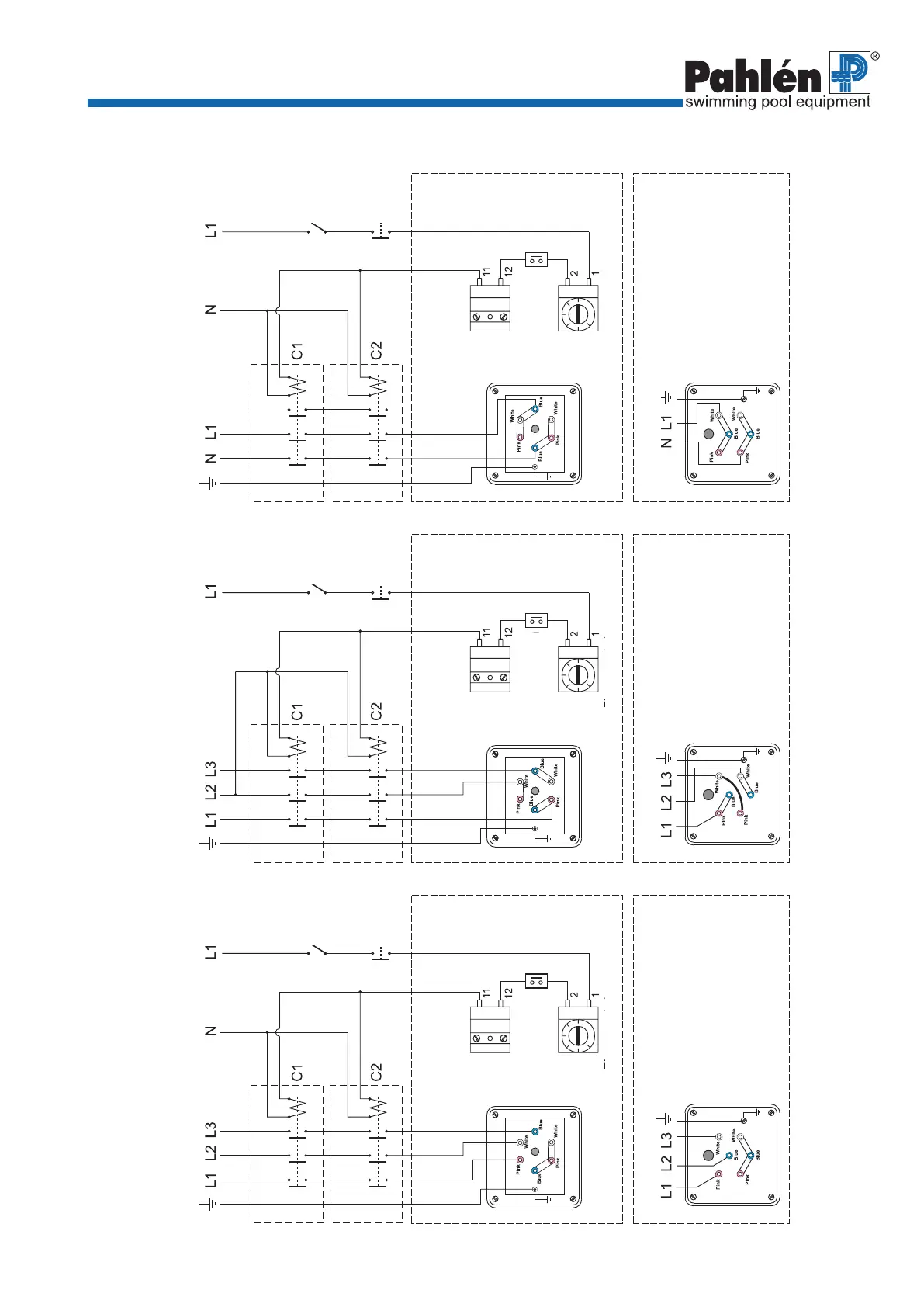

1~230V3~230V3~400V
1~230V3~230V3~400V
Supply from pump motor
On/Off
Motor protection
Flow switch
Thermostat
Over heating limit control
Heating element 3-6kW Type A
heating element 3-6kW Type B
Electric heater
Supply from pump motor On/Off
Motor protection
Flow switch
Thermostat
Over heating limit control
Heating element 3-18kW Type A
Heating element 3-18kW Type B
Elelctric heater
Supply from pump motor On/Off
Motor protection
Flow switch
Thermostat
Over heating limit control
Heating element 3-18kW Type A
Heating element 3-18kW Type B
Electric heater
Electric heater plastic
Item no. 141600(-02) - 141605(-02)
ENGLISH
Installation instruction
MA45-25E
