pakite PAT-580 - Hardware and Installation Instructions; Transmitter Panel Description; Receiver Panel Description

HDMI EXTENDER
HDMI EXTENDER

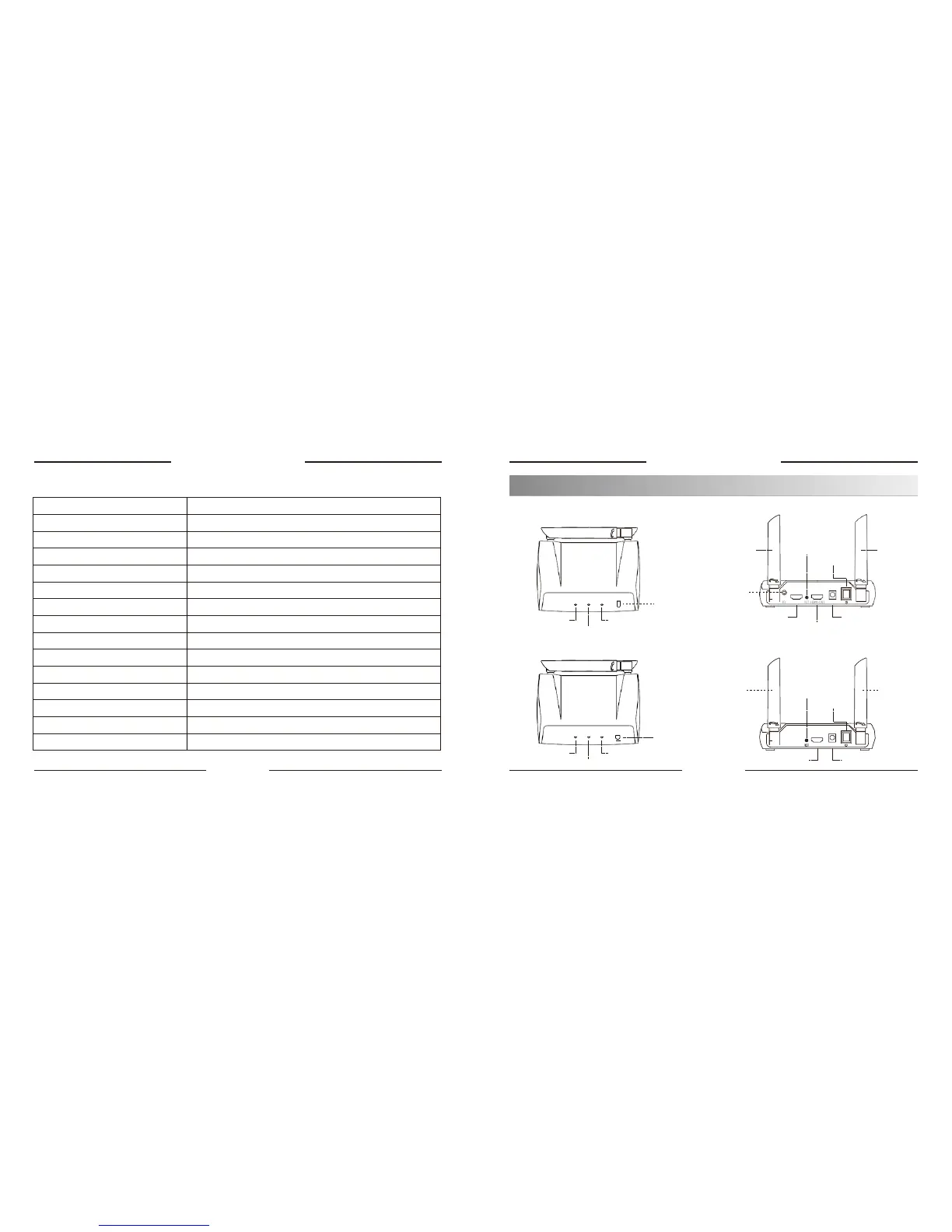

3. Specifications
1. Transmitter panel description
5.2G
Antenna
Reset Button
Power Switch
5.2G
Antenna
Transmission
IR Signal
Transmitter
Power
IR Extension
Interface
HDMI Signal Input
HDMI-IN DC-IN
Power Input
Indicator
Indicator
Video Indicator
HDMI Signal Output
2. Receiver panel description
5.2G
5.2G
Reset Button
Transmission
Antenna
IR Receiver
Power
Power Switch
HDMI-OUT DC-IN
Antenna
Indicator
Indicator
Video Indicator
HDMI Signal Output Power Input
3 4
II.Hardware and Installation Instructions
Input/Output Jack
HDMI1.4/HDCP1.4
Output Image Resolution
720/1080P@50/60Hz
HDMI Audio Format
1080P HQ
HDMI Max Transmission Rate
6.75Gbps
Wireless Transmission Standard
IEEE 802.11n40
Operating Frequency
5150MHz ~ 5250MHz
Max wireless transmission rate
5G 300Mbps
Wireless transmitter power (IPEX)
TX：22.67dBm,RX:22.27 dBm
Transmission Distance
50-100m(open space accessibility)
IR Frequency Range
38KHz
DC Input
AC 100V-240V 50/60Hz
DC Output
DC 5V/2A
Operating Temperature
-10 ~ +50°C
Operation Humidity
10-80%RH(Non-condensing)
Product Dimension
158x128x37mm
