OM 601 pag 19 Cap 6
Wear on the side chain
This wear is caused by improper interaction with the chain pulleys or guide elements
side.
If it is found that consumption over the heads of pins over 25% of the projection of
rewriting or on the outside of the plate more than 20% of the thickness (see Fig. 6.14),
and the chain must be replaced before applying the new , must be sought the cause of
this malfunction.

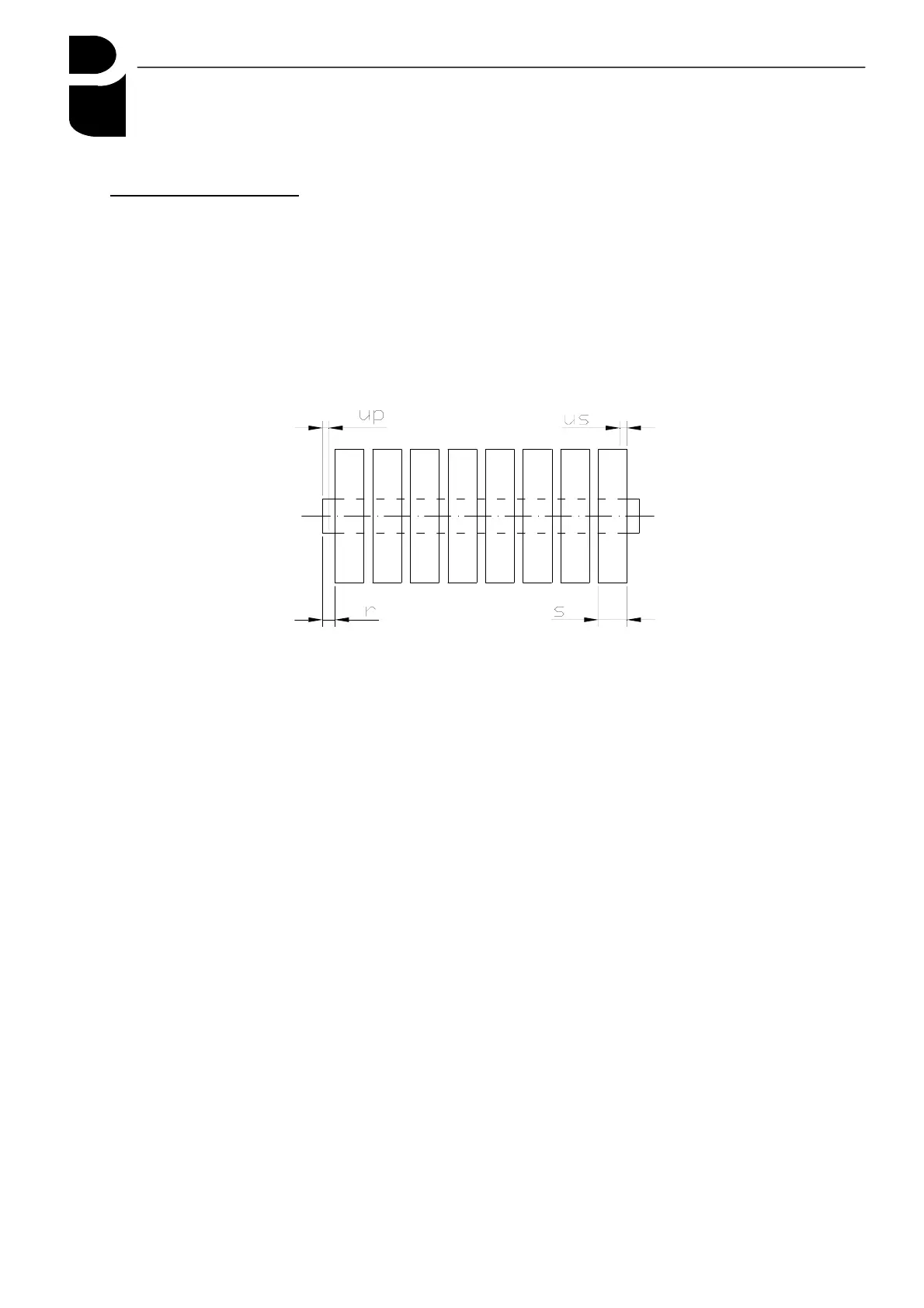

Fig. 6.14
Consumption rate head pin up / r x 100 < 25%
Consumption percentage edge plate us / s x 100 < 20%
These checks should be performed every 3 months.
After four years of the chains must be dismantled and inspected in the attacks on the
arm and in areas not normally accessible and, if damaged, replace.
