Palazzani
Palazzani Industrie spa
OM 761 pag 4 Cap 7
transporting in narrow spaces.
The other four possibilities are all usable (the most external hole in the frame limits
consistently the work area and thus it is to be used when the work area is narrow).
It is obvious that if the positions chose are symmetrical the machine will operate at
the same distance in both sides.

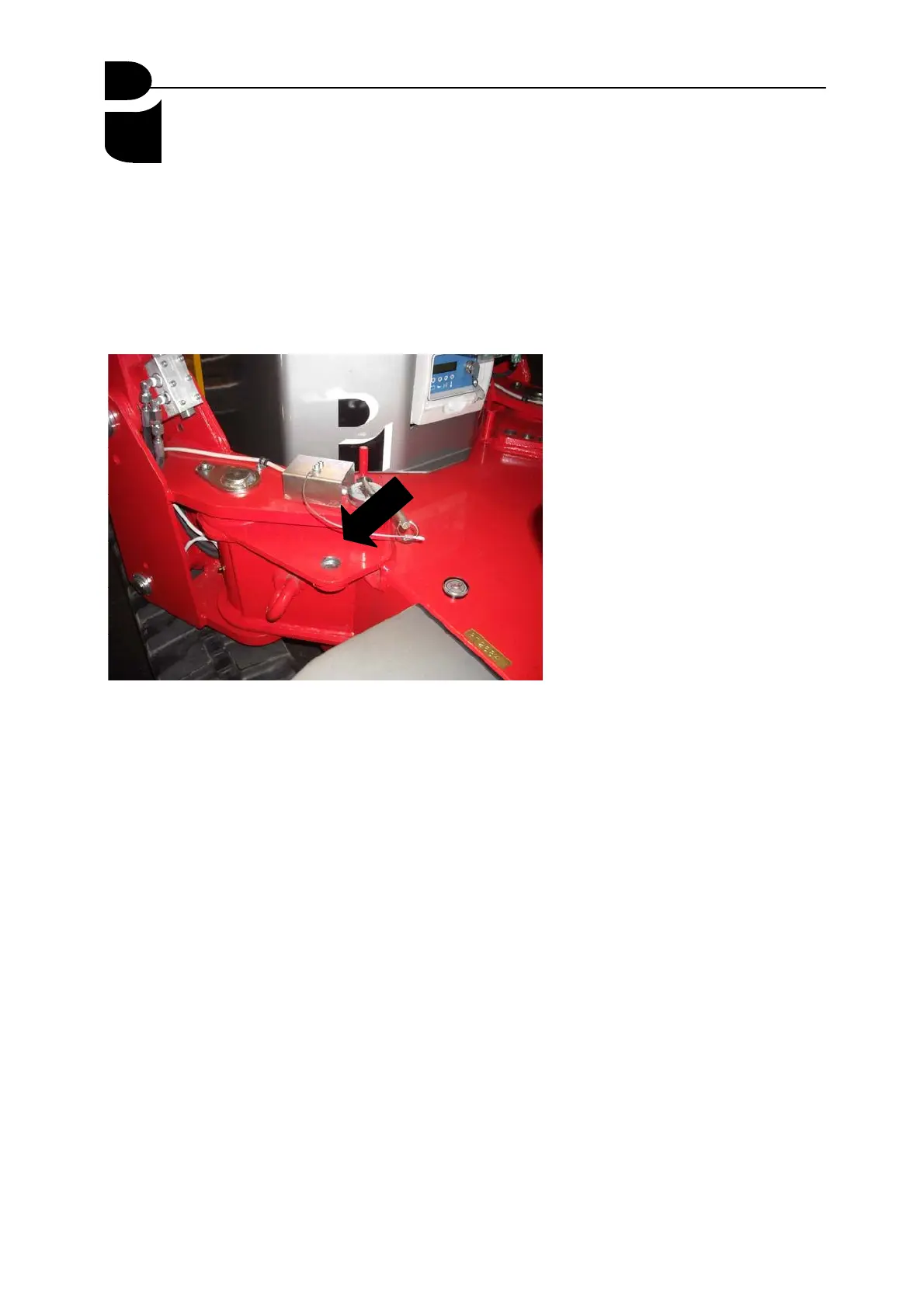

Forgetting to insert a locking pivot does not allow to use the boom
Fig. 7.6
