3.2 MAIN CONTROL DESK

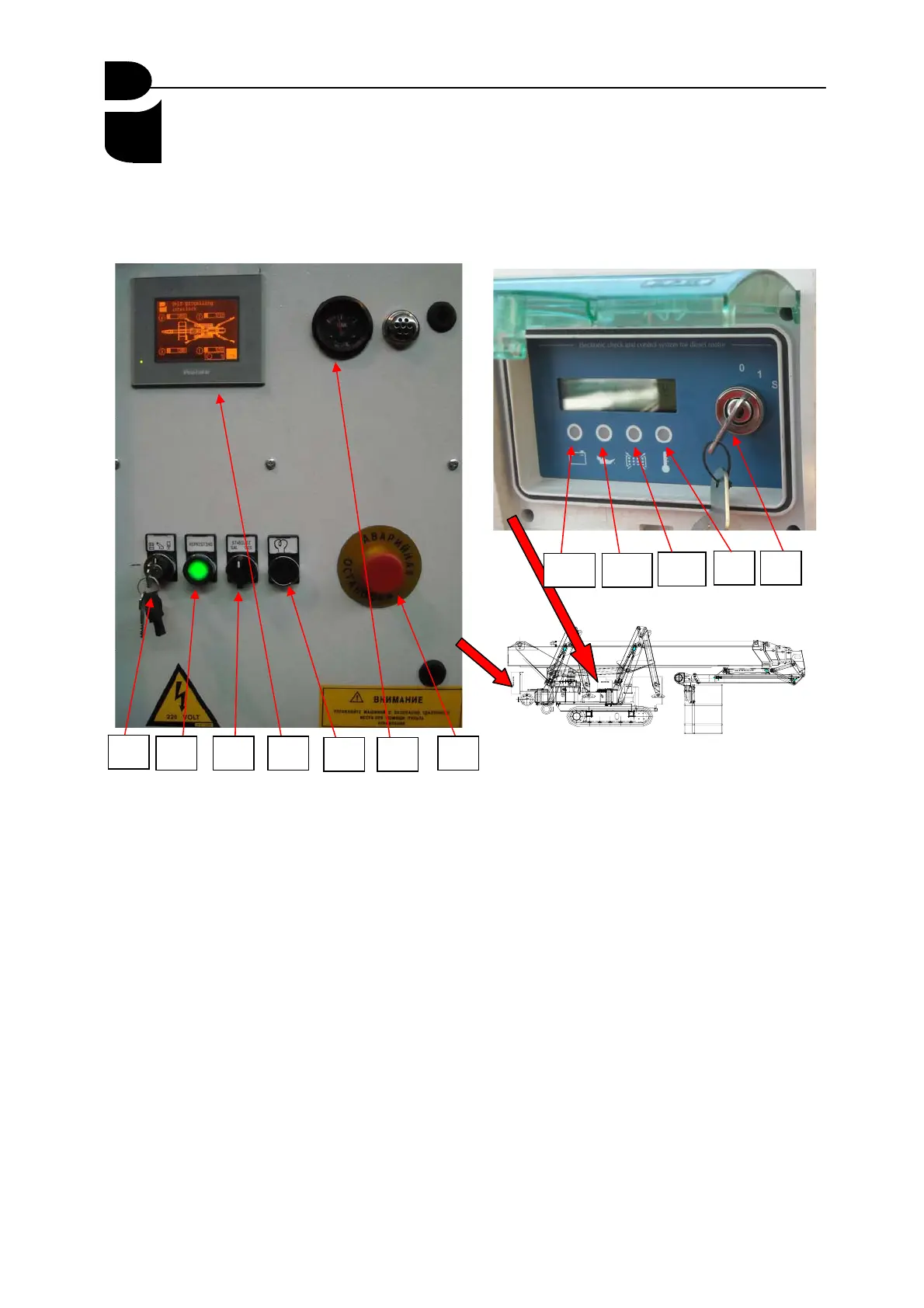

Fig. 3.2
1) Switching controls key. 2) Boom lifting up in travel condition
3) Lift up/lower stabilizer 4) Programmable Logic Control (PLC)
5) Heating diesel engine glow plug 6) Fuel level
7) Emergency stop button 8) General key
9) Overheating diesel engine 10) Air filter barred
11) Low oil pressare diesel engine 12) Low tension generator of the diesel
engin
1
2 4 3
5 6
7
8
12 11
10
9
