Palazzani
Palazzani Industrie spa
OM 386 pag 25 Cap 3
3.19 CAGE LOAD LIMITING

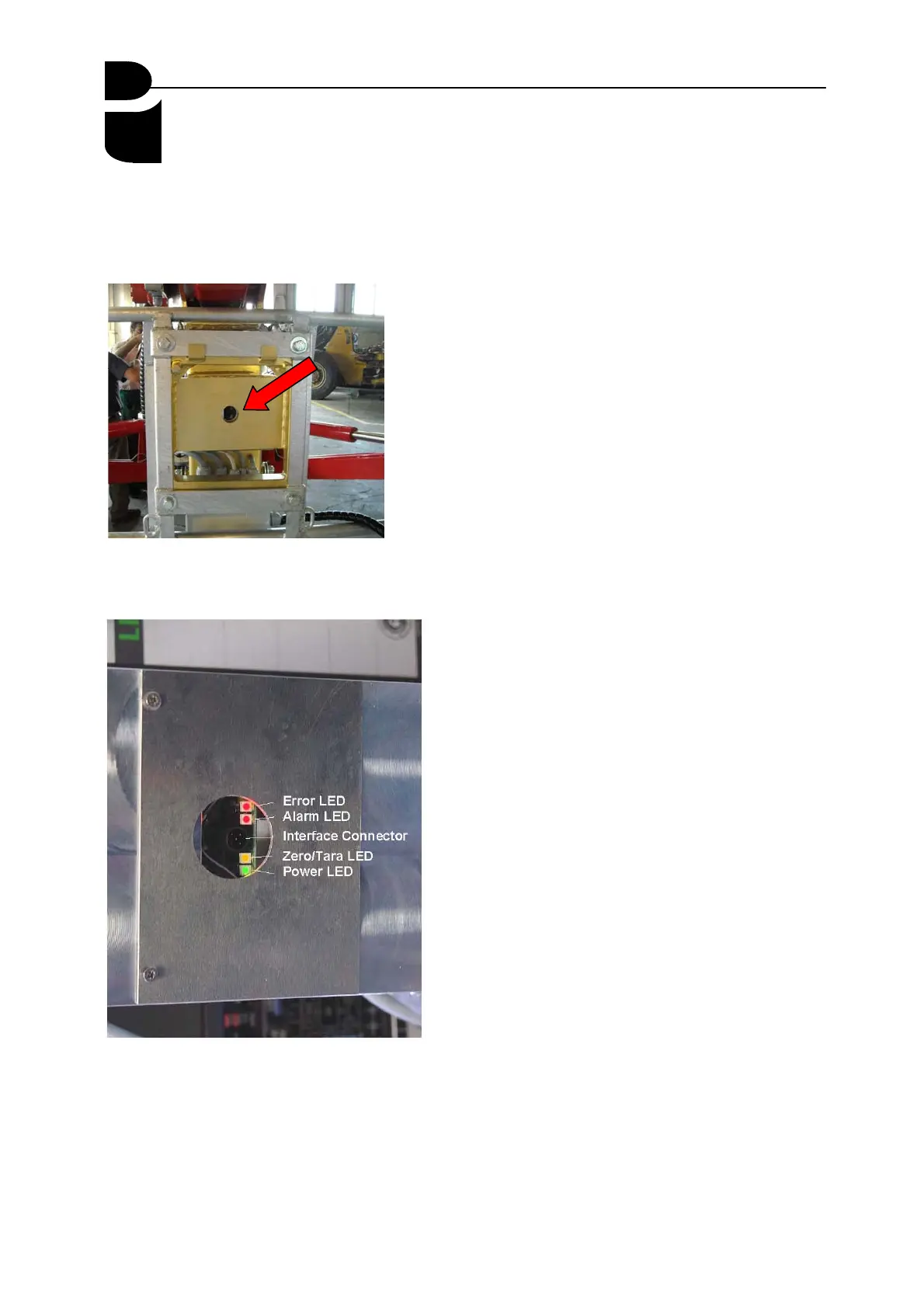

On the machine is fitted a sensor to evoid an overload of the cage (Fig.3.28).
If the weight in the cage is over the maximum
admissible, all the movements of the machine are
stepped and there i san acoustic and optical
warning on the cage control panel. Before stop all
the movements, there is a countinuous acoustic
worning setted at the 80% of the maximum
admissible load.
When the maximum load is reached there is an
alternate acoustic worning.
Fig. 3.28
In the pictures 3.29 there is a short diagnostic
of the load sensor.
Error LED. Red color. If on, there is
an anomaly in the sensor.
Alarm LED. Red color. If on, there i
san overload in the cage.
Zero/Tara LED. Orange color. If on,
the sensor works correctly and the
measure is inside a tollerance +15kg -
15kg.
Power LED. Green color. If blinking,
there is electrical power to the sensor.
Fig. 3.29
