Palfinger PTV - Page 18

18
HAND REMOTE
IN PUMP BOX
POWER PACK
GROUND for
PC BOARD
FROM BATTERY
NEGATIVE POST
FUSED BATTERY
POWER TO PC BOARD
FUNCTIONS
*BL- blue * BR- brown * SW-black * GE-yellow * GN-green * - Negative * + 12 Volts
18
8
REMOVE FUSE FOR FULLTIME
DUAL MOTOR OPERATION
15 AMP
Voltage
gauge
Primary controls
column & runner
Open
Close
Down
Up
9190
DIAGNOSTIC
PORT
FUSED BATTERY
POWER TO PC
PRCESSOR
MOTOR SOLENOID PIN #3
15 AMP
AT BAT
SWITCHED POWER
CAN INSTALL CAB
SWITCH IN PLACE OF
JUMPER
TO S-2 DOWN VALVE
#6 ON J-30 MAIN SWITCH
#6.2 ON J-31 HH REM
TO S-1 UP VALVE
#5 ON J-30
#5.2 ON J-31
TO S-3 OPEN VALVE
#14 ON J-30 MAIN
#14.2 ON J-31 HH REM
TO S-4 CLOSE VALVE
#3 ON J-30 MAIN
#3.2 ON J-31 HH REM
12v
12v
UP
UP
OPN
OPNDWN
DWN
CLS
CLS
NOT USED ON ILD+
NOT USED ON ILD+
NOT USED ON ILD+
❖ ALL NUMBERS ON THE
BOARD
ARE PLUG POSITION
NUMBERS
❖ 2 DIGIT LETTER MARKINGS
INDICATE WIRE COLOR
PER LEGEND.
❖ “E” NORMALLY INDICATES
EMPTY SLOT OR PIN
❖ “+” INDICATES 12V WITH
BOARD POWERED
❖ “-” INDICATES GROUND
WITH BOARD GROUNDED
TO BATTERIES (J-2) “-” PINS
❖ ALL #2 PINS ARE 12v WITH
BATTERY POWER TO J-1
PLUG PIN #2
❖ ALL #4 PINS ARE HOT WITH
J-11 JUMPER FROM
#2 to #4
GATE WILL NOT FUNCTION
WITHOUT :
❖ GROUND AT J-2
❖ 12v AT J-1 #2 AND #27
❖ JUMPER J-11 #2 TO #4
❖ 12v AT ALL #4 PINS
S1
S4
S3

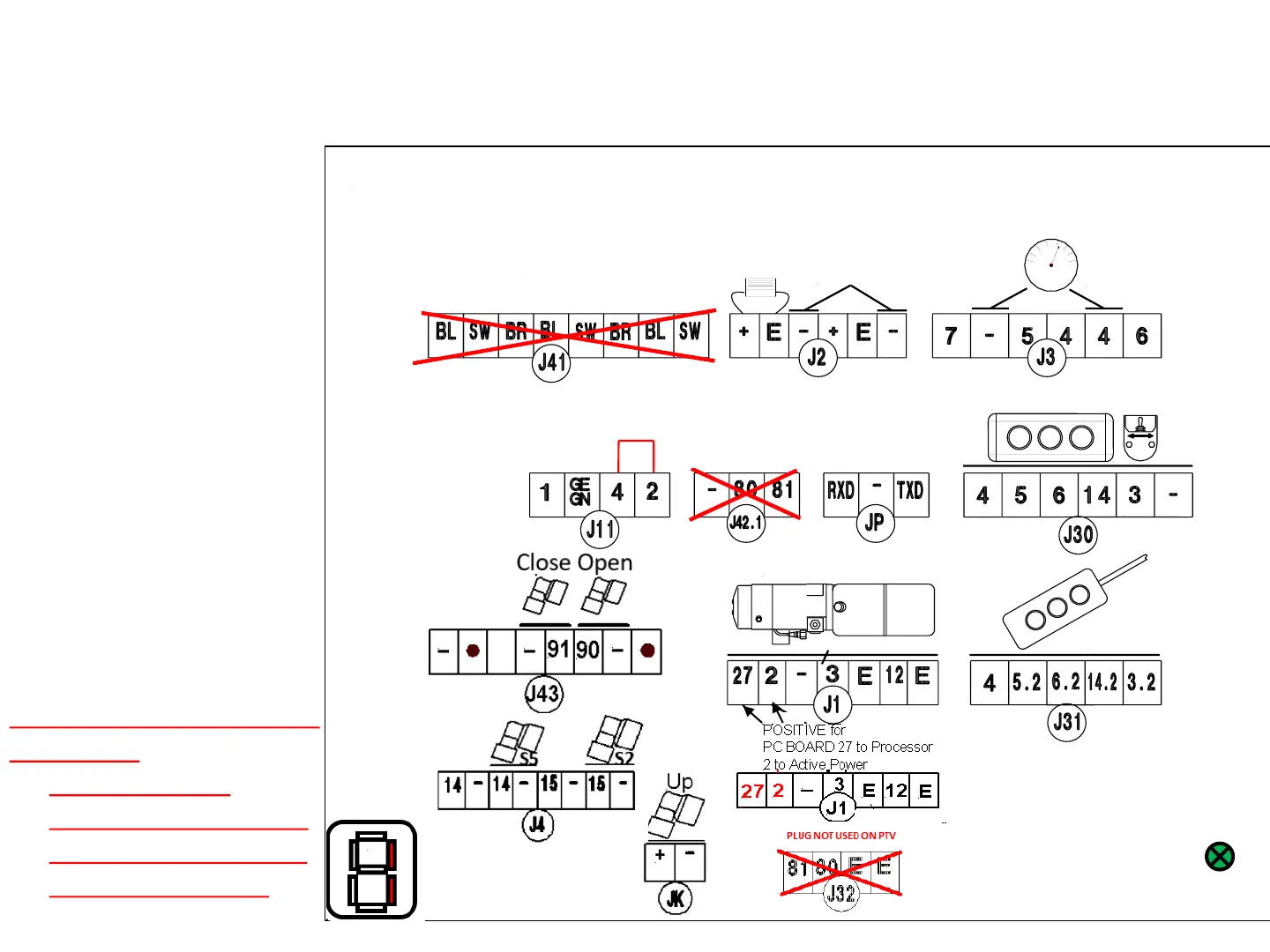

Circuit Board Overview - PTV
PLUG NOT USED ON PTV
PLUG NOT USED ON PTV
