PTV-PREVENTIVE MAINTENANCE GUIDELINES
47

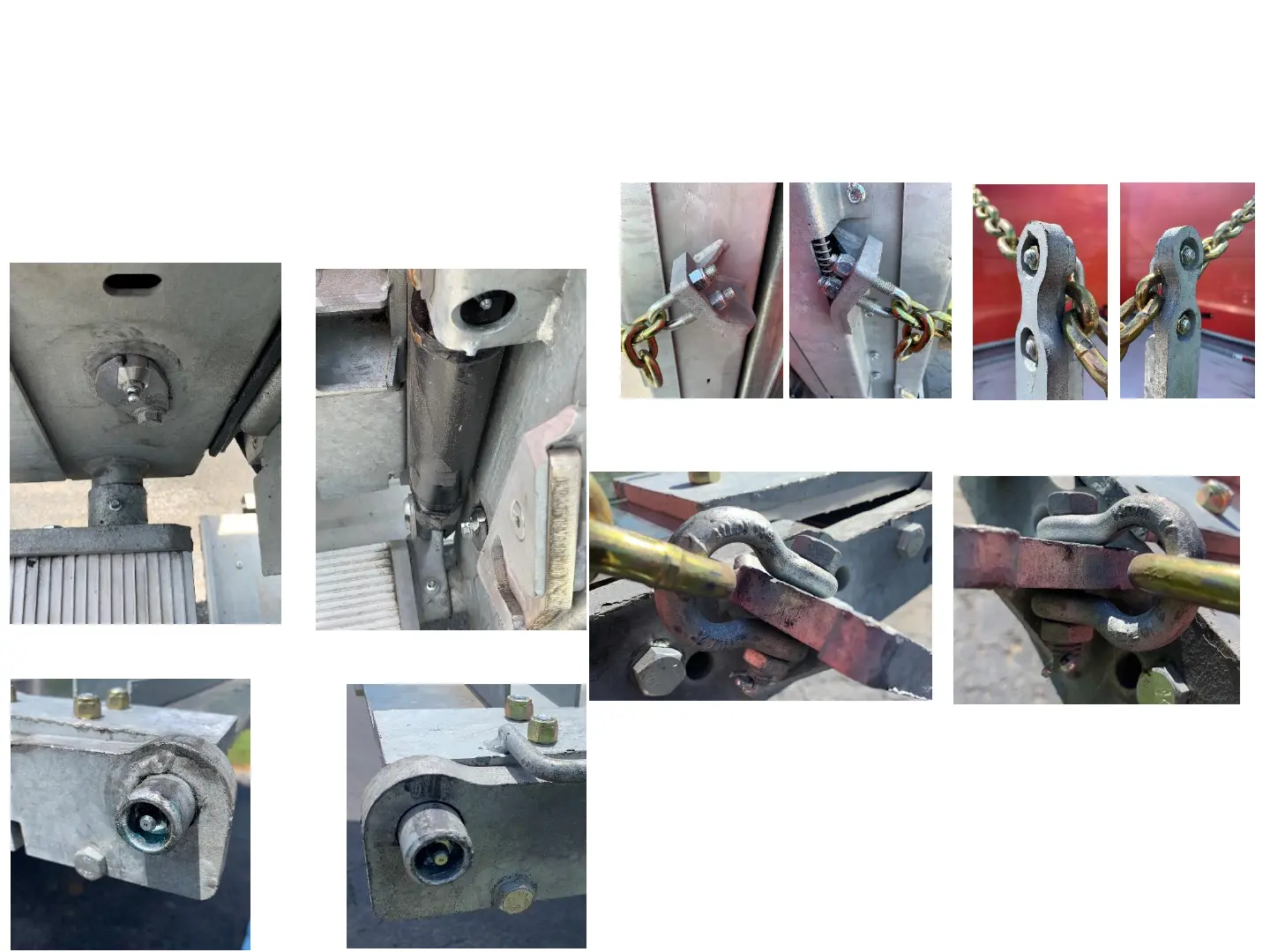

Grease Fitting Locations
12) Check all chain attachment points make sure chains are adjusted even.
Road Side Top
Chain U-Bolt
Road Side Bottom Cylinder
Grease fitting & Platform Main Pin
Grease Fitting
Curb Side Bottom Cylinder Grease
fitting & Platform Main Pin Grease
fitting & Top Open & Close Grease fitting
Road Side Retention Ramp
Grease fitting
Curb Side Retention Ramp
Grease fitting
Curb Side Top
Chain U-Bolt
Road Side
U-Link
Curb Side
U-Link
Always Check that Lock nut and Cotter Pin are tight and Cotter Pin not damaged
