CONNECTING THE MONICON

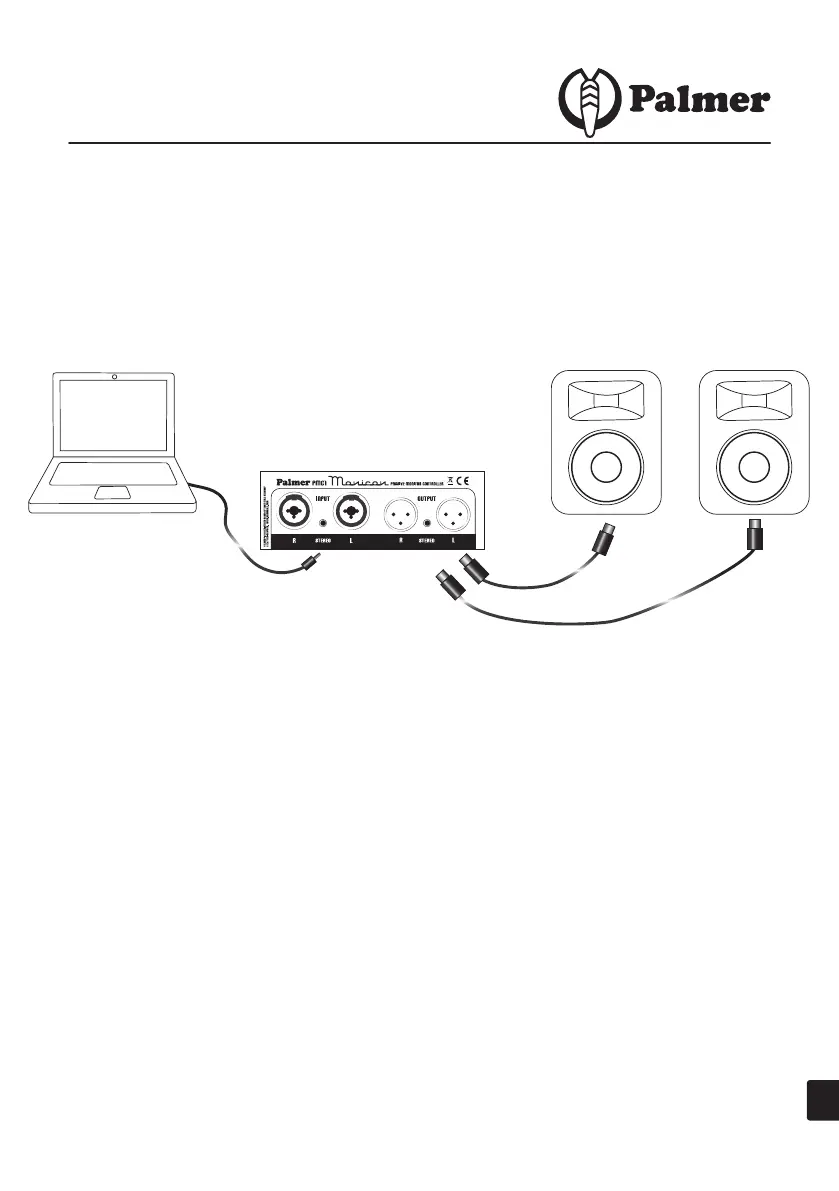

CONNECTING A DESKTOP OR LAPTOP COMPUTER
NOTE: TO PREVENT POPS AND CRACKLING NOISES MAKE SURE YOUR MONITOR SPEAKERS ARE SWITCHED
OFF BEFORE CONNECTING THE MONICON.
Use a 3.5 mm male to male stereo cable to connect the standard 3.5 mm line or headphone out of your
desktop or laptop to the Monicon’s 3.5 mm input.
• Connect the Monicon L/R outputs or 3.5 mm output jack to your monitors.
• Set your computer’s audio output level to maximum.
• Set the Monicon’s attenuation control fully counterclockwise.
• Switch on your monitors.
• Make sure the Monicon’s mute function is deactivated and slowly bring up the volume by rotating the at-
tenuation control clockwise.
NOTE: FOR OPTIMUM SIGNAL-TO-NOISE RATIO YOUR COMPUTER’S AUDIO OUTPUT LEVEL SHOULD
ALWAYS BE SET TO MAXIMUM. REDUCE THE LEVEL OF YOUR MONITORS IF THE MONICON PROVIDES
TOO MUCH OUTPUT OR ATTENUATION RANGE.
EN FRDE ES
9
3.5 mm Stereo
XLR / f
XLR / m
Computer / Audio Source
