Back Panel

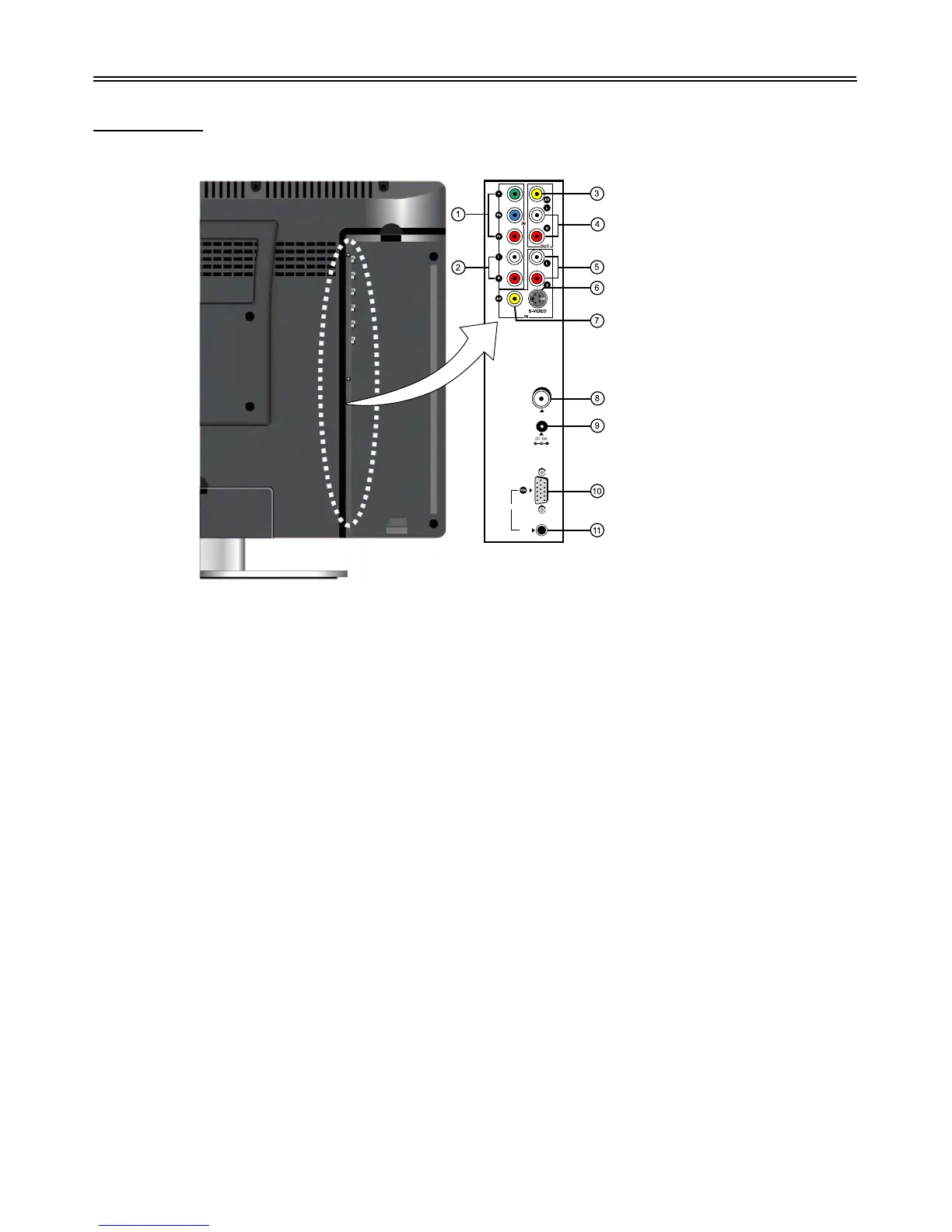

Open the back cover on the right side of the unit's rear panel, and you will see all jacks, as shown
below:
1.
2.
3.
4.
5.
Y/Pb/Pr Input Jacks
Connect Y/Pb/Pr signal source in
COMPONENT mode.
L/R Audio Input Jacks (for Y/Pb/Pr)
Connect L/R audio signal source in
COMPONENT mode.
AV Output Jack
Output TV or COMPOSITE signals to
external AV input device.
L/R Audio Output Jacks
Output L/R audio signal to external AV
input device.
L/R Audio Input Jacks (for composite
and S-video)
Connect L/R audio signal source in
COMPOSITE or S-VIDEO mode.
6.
7.
8.
9.
10.
11.
S-Video Input Jack
Connect S-Video signal source in
S-VIDEO mode.
Composite Video Input Jack
Connect composite video signal source in
COMPOSITE mode.
TV Signal Input Jack
Connect TV aerial.
DC 12V Input Jack
Connect supplied adaptor.
PC Input Jack
Connect VGA signal source.
PC Audio Input Jack
Connect VGA audio signal source.
