Panasonic AG-5700 - Specifications

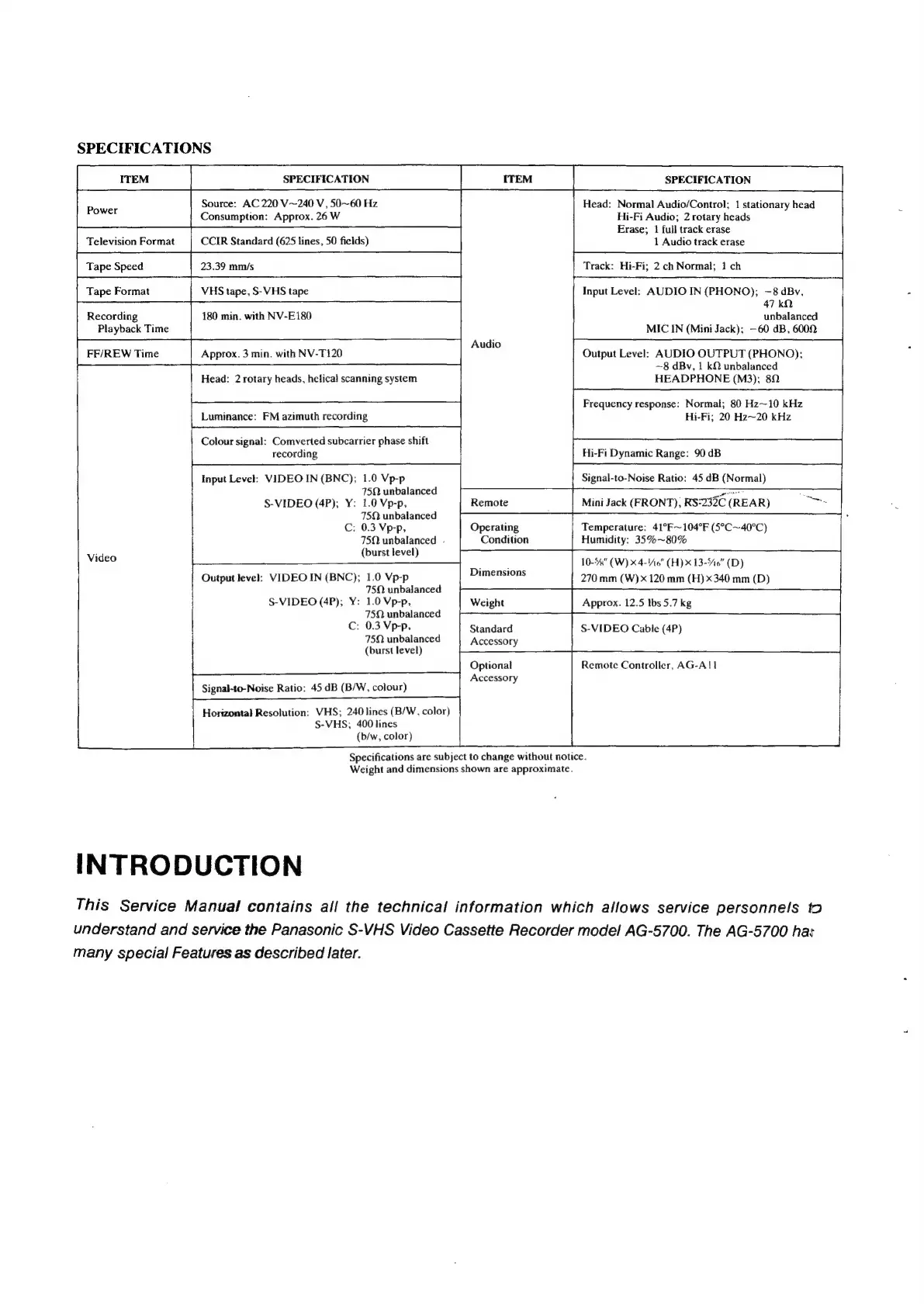

SPECIFICATIONS
ITEM SPECIFICATION | orem |
Power
Television Format
Tape Speed
Tape Format
Recording
Playback Time
FF/REW Time
Video
Source: AC 220 V~240 V, 50~60 Hz
Consumption: Approx. 26 W
CCIR Standard (625 lines, 50 fields)
23.39 mm/s
VHS tape, S- VHS tape
180 min. with NV-E180
Approx. 3 min. with NV-T120
Head: 2 rotary heads, helical scanning system
Luminance: FM azimuth recording
Colour signal: Comverted subcarrier phase shift
recording
Input Level: VIDEO IN (BNC); 1.0 Vp-p
75Q unbalanced
S-VIDEO (4P); Y: 1.0 Vp-p,
75Q, unbalanced
C: 0.3 Vp-p,
75Q unbalanced -
(burst level)
Output level: VIDEO IN (BNC); 1.0 Vp-p
75Q, unbalanced
S-VIDEO (4P); Y: 1.0 Vp-p,
750, unbalanced
C: 0.3 Vp-p,
750. unbalanced
(burst level)
Signal-to-Noise Ratio: 45 dB (B/W, colour)
Horizontal Resolution: VHS; 240 lines (B/W, color)
S-VHS,; 400 lines
(b/w, color)
Audio
Remote
Operating
Condition
Dimensions
SPECIFICATION
Head: Normal Audio/Control; 1 stationary head
Hi-Fi Audio; 2 rotary heads
Erase; 1 full track erase
1 Audio track erase
Track: Hi-Fi; 2 ch Normal; 1 ch
Input Level: AUDIO IN (PHONO); —8 dBv,
47 kD
unbalanced
MIC IN (Mini Jack); —60 dB, 6000
fe
Output Level: AUDIO OUTPUT (PHONO);
—8 dBv, 1 kOQ unbalanced
HEADPHONE (M3), 80
Frequency response: Normal; 80 Hz~10 kHz
Hi-Fi; 20 Hz~20 kHz
Hi-Fi Dynamic Range: 90 dB
Signal-to-Noise Ratio: 45 dB (Normal)
Mini Jack (FRONT), RS:235C (REAR)
Temperature: 41°F~104°F (5°C~40°C)
Humidity: 35%~80%
10-54" (W) x4-o" (H) x 13-io” (D)
270 mm (W)X 120 mm (H) x340 mm (D)
Approx. 12.5 tbs 5.7 kg
Standard S-VIDEO Cable (4P)
Accessory
Optional
Accessory
Remote Controller, AG-A!1
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
INTRODUCTION
This Service Manual contains all the technical information which allows service personnels to
understand and service the Panasonic S-VHS Video Cassette Recorder model AG-5700. The AG-5700 has
many special Features as described later.
