Panasonic CF-53

12
Getting Started

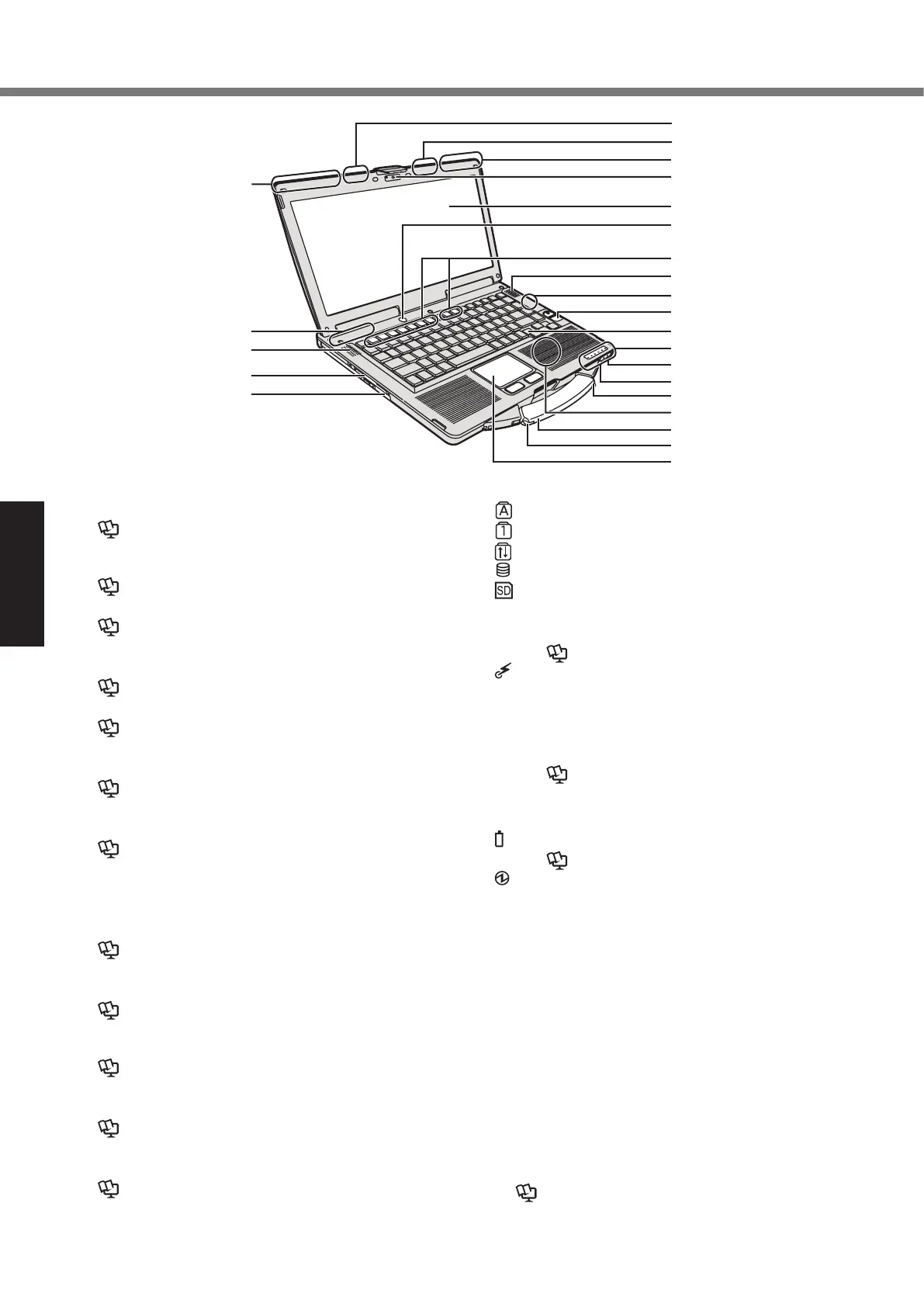

Description of Parts
B
C
D
E
A
G
A
I
C
M
L
N
O
P
Q
R
S
T
R
U
K
J
F
H
A: Wireless WAN antenna
<Only for model with wireless WAN>
è
Reference Manual “Wireless LAN”
B: Wireless LAN antenna/Bluetooth antenna
<Only for model with Bluetooth>
è
Reference Manual “Bluetooth”
C: Speaker
è
Reference Manual “Key Combinations”
D: Smart Card slot
<Only for model with Smart Card slot>
è
Reference Manual “Smart Card”
E: CD/DVD Drive
è
Reference Manual “CD/DVD Drive”
F: Wireless LAN antenna/Bluetooth antenna
<Only for model with wireless LAN>
è
Reference Manual “Wireless LAN”
G: Wireless LAN antenna/Bluetooth antenna
<Only for model with wireless LAN and without GPS>
è
Reference Manual “Wireless LAN”
GPS antenna
<Only for model with GPS>
H: Camera
<Only for model with Camera>
è
Reference Manual “Camera”
I: LCD
<Only for model with touchscreen>
è
Reference Manual “Screen Input Operation”
J: Power switch
K: Function key
è
Reference Manual “Key Combinations”
L: Wireless LAN antenna/Bluetooth antenna
<Only for model with wireless LAN and GPS>
è
Reference Manual “Wireless LAN”
M: Fingerprint Reader
<Only for model with Fingerprint Reader>
è
Reference Manual “Fingerprint Reader”
N: Keyboard
O: LED indicator
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Drive status
: SD Memory Card status
(Blinking: During access or a password is re-
quested)
è
Reference Manual “SD Memory Card”
: Wireless ready
This indicator lights when Wireless LAN, Blue-
tooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
è
Reference Manual “Disabling/Enabling
Wireless Communication” “Wireless LAN”
“Bluetooth” “Wireless WAN”
: Battery status
è
Reference Manual “Battery Power”
: Power status
(Off: Power off/Hibernation, Green: Power on,
Blinking green: Sleep, Blinking green rapidly:
Cannot power on or resume due to low tempera-
ture.)
P: Microphone jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos-
sible, or malfunctions may occur as a result.
Q: Headphone jack
You can connect headphones or amplied speakers.
When they are connected, audio from the internal
speakers is not heard.
R: Stylus Holder
<Only for model with touchscreen>
S: RFID Reader
<Only for model with RFID Reader>
è
Reference Manual “RFID Reader”
T: Carrying handle
U: Touch pad
