Panasonic CS-A24BD1P Service Manual

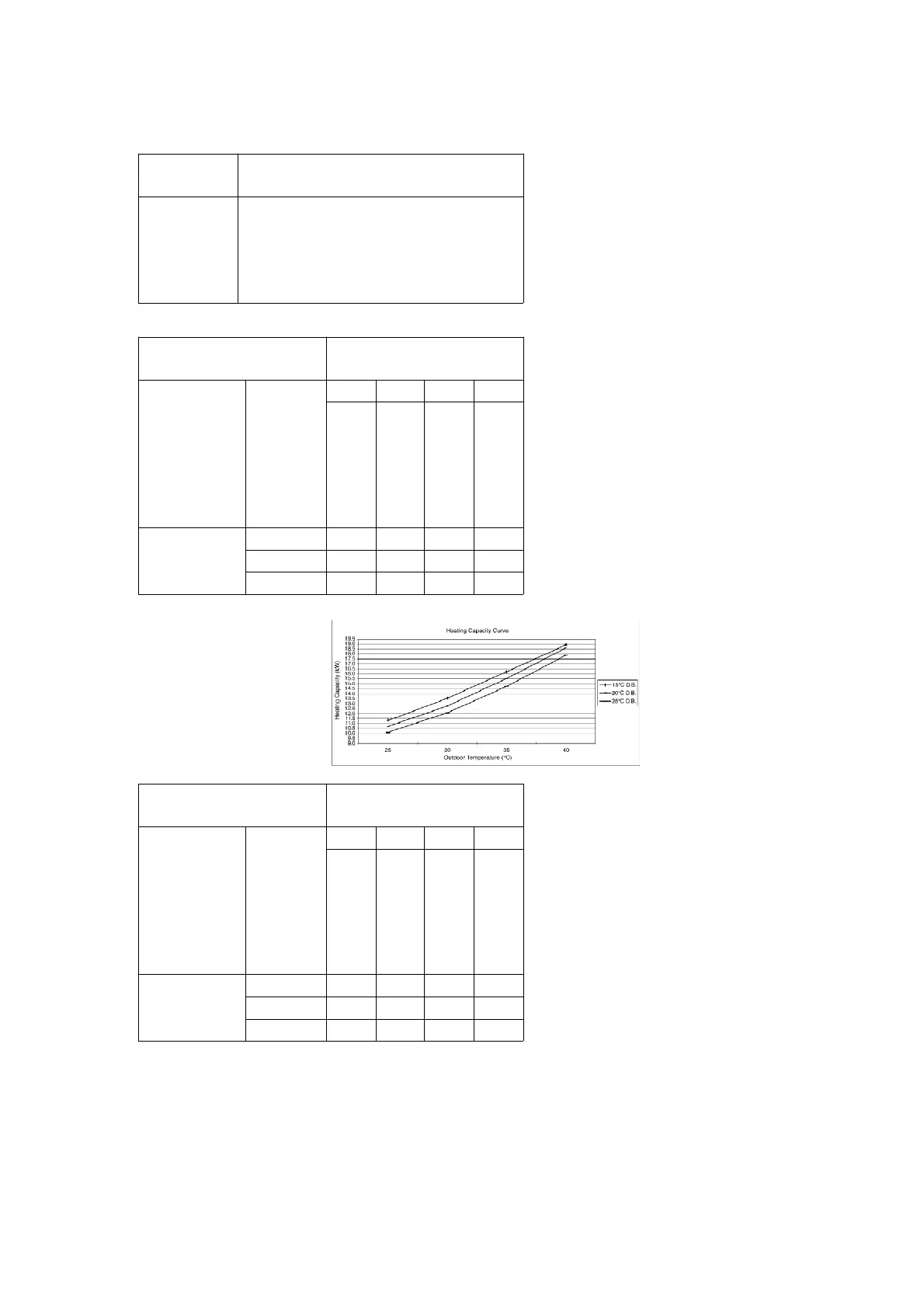

Model Heating capacities are based on
conditions below.
CS-
A50BB4P
Heating
capacity
15.5 kW
3 phase, 50Hz, 400V / Indoor
temperature 20°C D.B. / Outdoor
temperature 7°C D.B. 6°C W.B. /
Standard air volume 31m
3
/min
Inlet Air Outdoor Temperature (°C
W.B.)
External
Static
Pressure
(Pa) Air
Volume (m
3
/
min)
Entering
Air Dry
Bulb (°C)
-6 0 6 12
H.C. H.C. H.C. H.C.
15 11.3 13.6 16.3 18.9
31 20 10.7 12.8 15.5 18.6
25 10.08 12.1 14.7 17.8
Inlet Air Outdoor Temperature (°C
W.B.)
External
Static
Pressure
(Pa) Air
Volume (m
3
/
min)
Entering
Air Dry
Bulb (°C)
-6 0 6 12
IPT IPT IPT IPT
15 3.48 3.98 4.72 5.57
31 20 3.68 4.22 4.97 6.06
25 3.88 4.47 5.22 6.60
88
