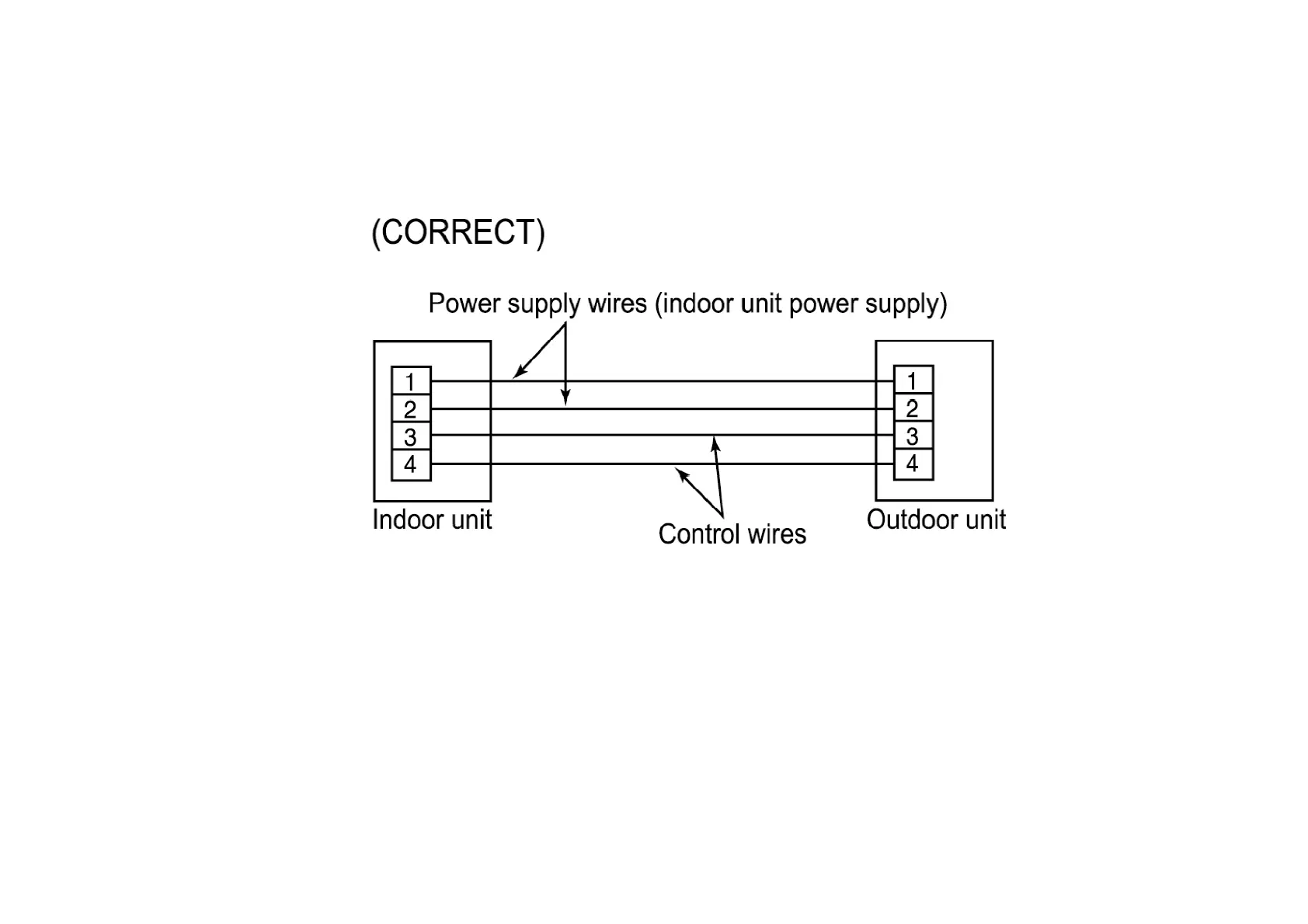

the drive wires (connected to terminals [1] and [2]) and the control wires (connected to terminals
[3] and [4]) are connected correctly. If they are connected incorrectly, connect them correctly.
Normal operation should then commence.
179
