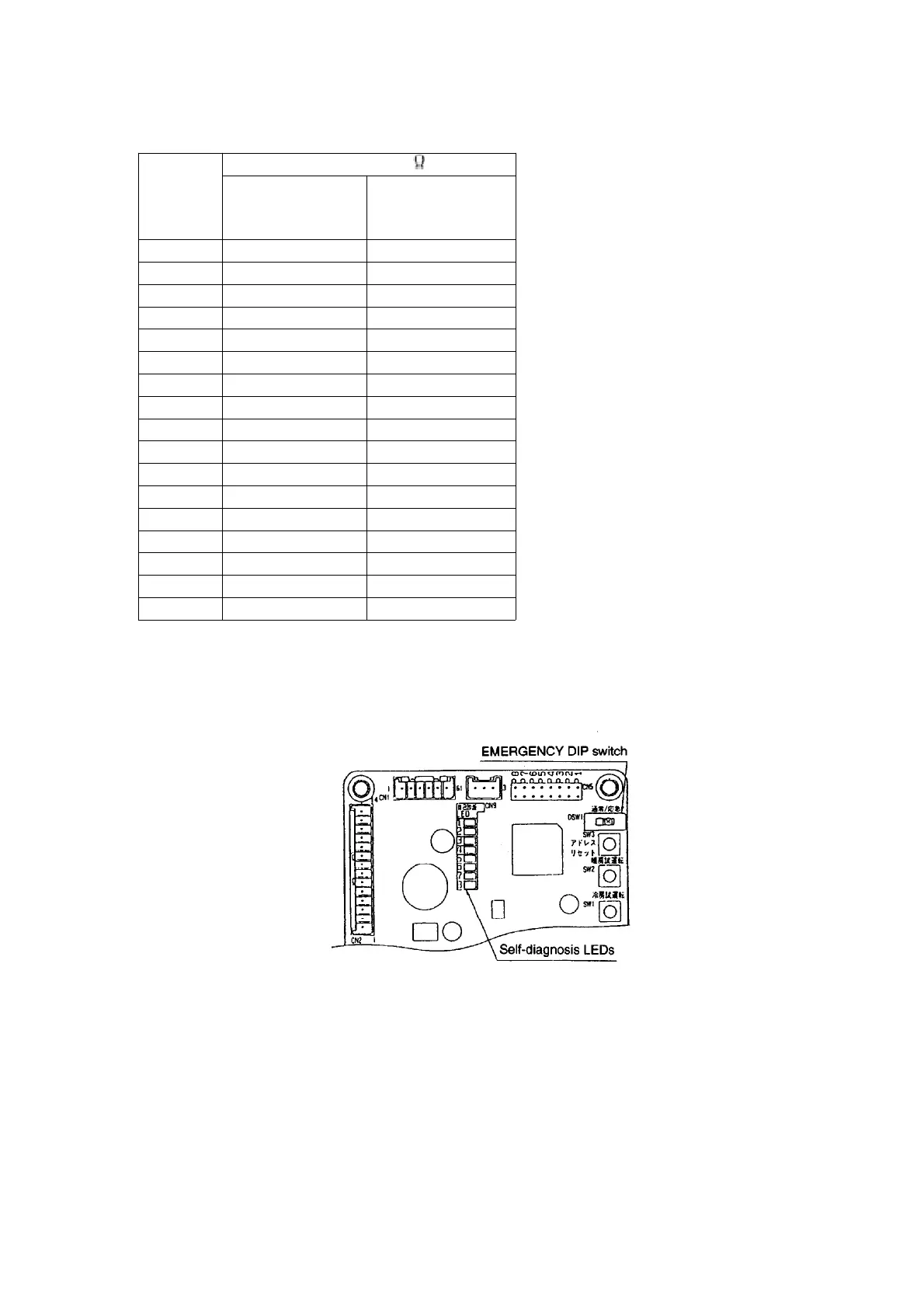

Temperature
Resistance value (k ) ± 5%
Room
temperature
thermistor
Pipe temperature
thermistor
-20°C 205.8 197.8
-10°C 114.6 111.9
-5°C 87.3 85.4
0°C 67.0 65.8
5°C 51.8 51.0
10°C 40.4 39.9
15°C 31.7 30.7
20°C 25.1 25.0
25°C 20.0 20.0
30°C 16.1 16.0
40°C 10.4 10.6
50°C 6.9 7.1
60°C 4.7 4.9
70°C ___ 3.5
80°C ___ 2.5
90°C ___ 1.8
100°C ___ 1.4
The pipe temperature thermistor resistance value are the same for
the indoor and outdoor units.
<When a thermistor abnormality is judged to have occurred>
- Set only the thermistor which shows an abnormality to the
condition shown in the table below to carry out emergency
operation
