Operating Hz
Indoor Temp. (D.B./W.B.) (°C) Outdoor Temp. (D.B./
Maximum Minimum Maximum
Cooling 50 32/23 21/15 43/-
Heating 50 27/- 16/- 24/18
10. PIPE LENGTH

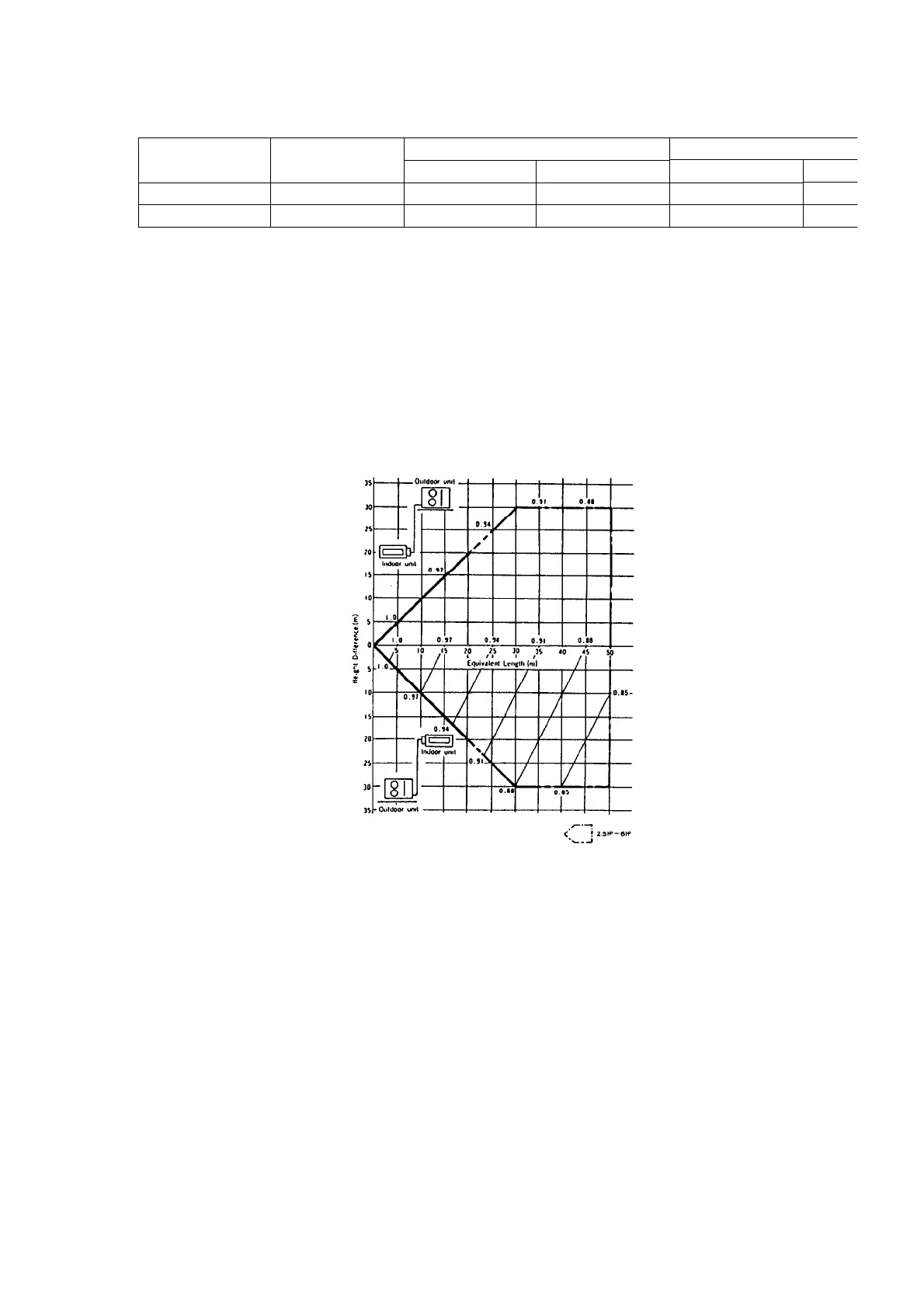

10.1. CORRECTION OF COOLING AND HEATING CAPACITIES
Correction of cooling and heating capacities according to the connecting pipe length. / The data
of cooling capacities (marked on the name plate) are based on 5 metres connecting pipe and
horizontal installation. / (Cooling)
/ / / Equivalent Length = actual pipe length + / number of elbow x ELE + number of oil / trap x
ELO / ELE : equivalent length of elbow. / ELO : equivalent length of oil trap.
10.2. REFRIGERANT ADDITIONAL CHARGE
- The piping length exceeds 30 metres. / APPLICABLE FOR ALL
MODELS
Before shipment, this air conditioner is filled with the rated
amount of refrigerant subject to 30m piping length. (The rated
amount of refrigerant is indicated on the name plate.) But when
