Manual Fan Speed:-

−

− −

−

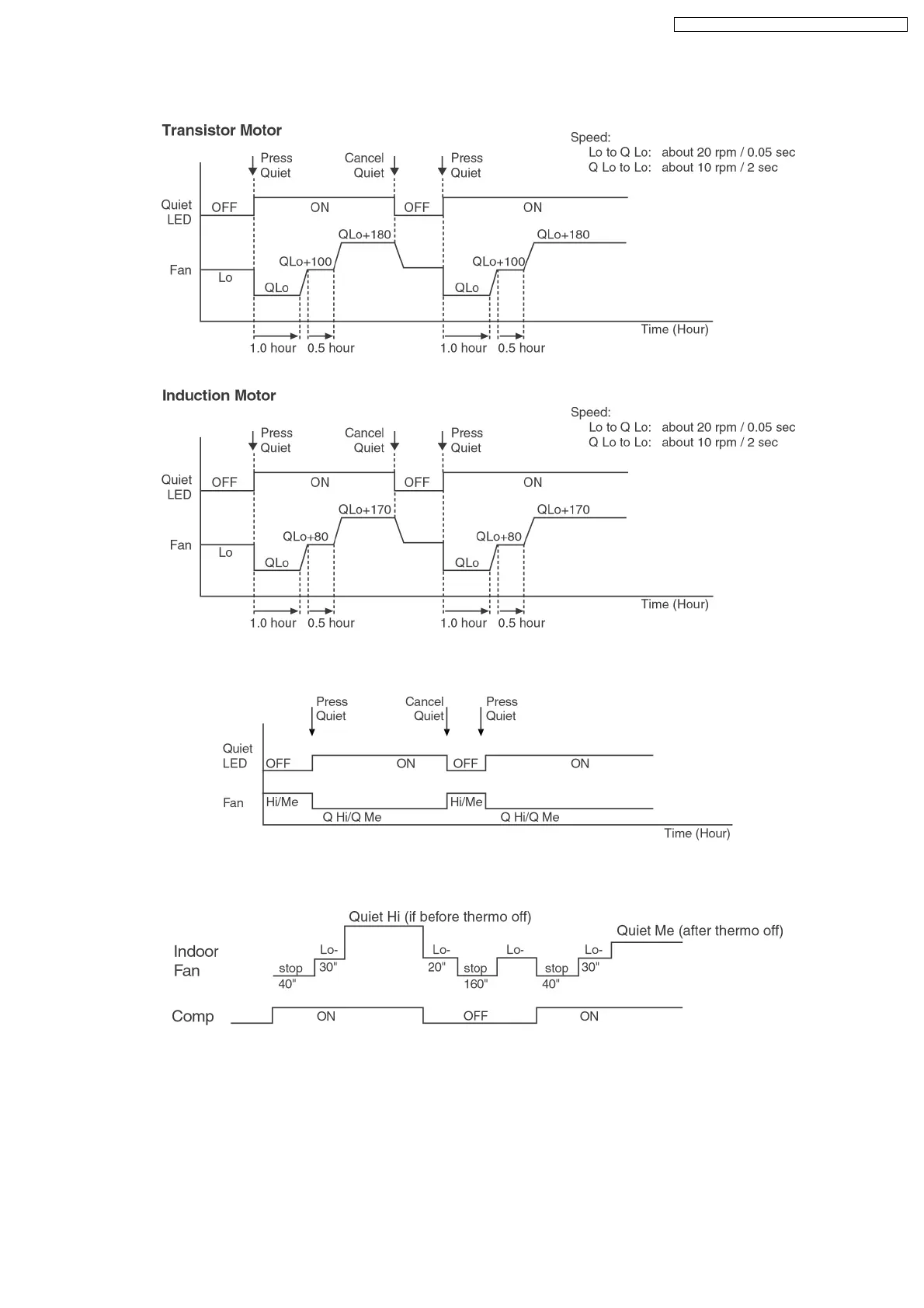

RPM control during Lo cool

−

− −

−

RPM control during Hi & Me cool

•

• •

•

Auto Fan Speed:-

•

• •

•

Quiet Mode Operation will stop if:-

−

− −

−

Quiet mode button is pressed again.

−

− −

−

Stopped by ON/OFF switch.

−

− −

−

Timer OFF activates.

−

− −

−

Powerful mode button is pressed.

−

− −

−

When change mode to Air Circulation mode.

CS-C18CKR CU-C18CKR / CS-C24CKR CU-C24CKR

Default Chapter1
- Table of Contents1
- Air Conditioner1
1 Features2
2 Functions3
3 Product Specifications6
4 Dimensions10
5 Refrigeration Cycle Diagram12
6 Block Diagram13
7 Wiring Diagram15
8 Operation Details17
- Indoor Fan Speed Control17
- Cooling Mode Operation18
- Soft Dry Mode Operation22
- Air Circulation Mode Operation24
- Automatic Mode Operation24
- Powerful Mode Operation25
- Random Auto Restart Control25
  - Airflow Direction Control26
  - Delay on Timer Control27
- Remote Control Signal Receiving Sound27
- Ionizer Operation28
9 Operating Instructions33
10 Installation Instructions41
- Safety Precautions41
- Indoor Unit44
- Connect the Cable to the Indoor Unit46
- Outdoor Unit47
11 2-Way, 3-Way Valve51
- Evacuation of the Equipment (for Europe & Oceania Destination)52
- Pumping down53
- Air Purging of the Piping and Indoor Unit58
12 Servicing Information64
- Indoor Electronic Controllers Removal Procedures64
- Cross Flow Fan and Indoor Fan Motor Removal Procedures65
13 Troubleshooting Guide68
- Refrigeration Cycle System68
- Diagnosis Methods of a Malfunction of a Compressor69
14 Technical Data70
15 Exploded View72
16 Replacement Parts List73
17 Exploded View74
18 Replacement Parts List75
19 Electronic Circuit Diagram76
- Remote Control83
  - Board84
  - Board (C24Ck)85
