8.11.3. Soft Starter (C24CK only)

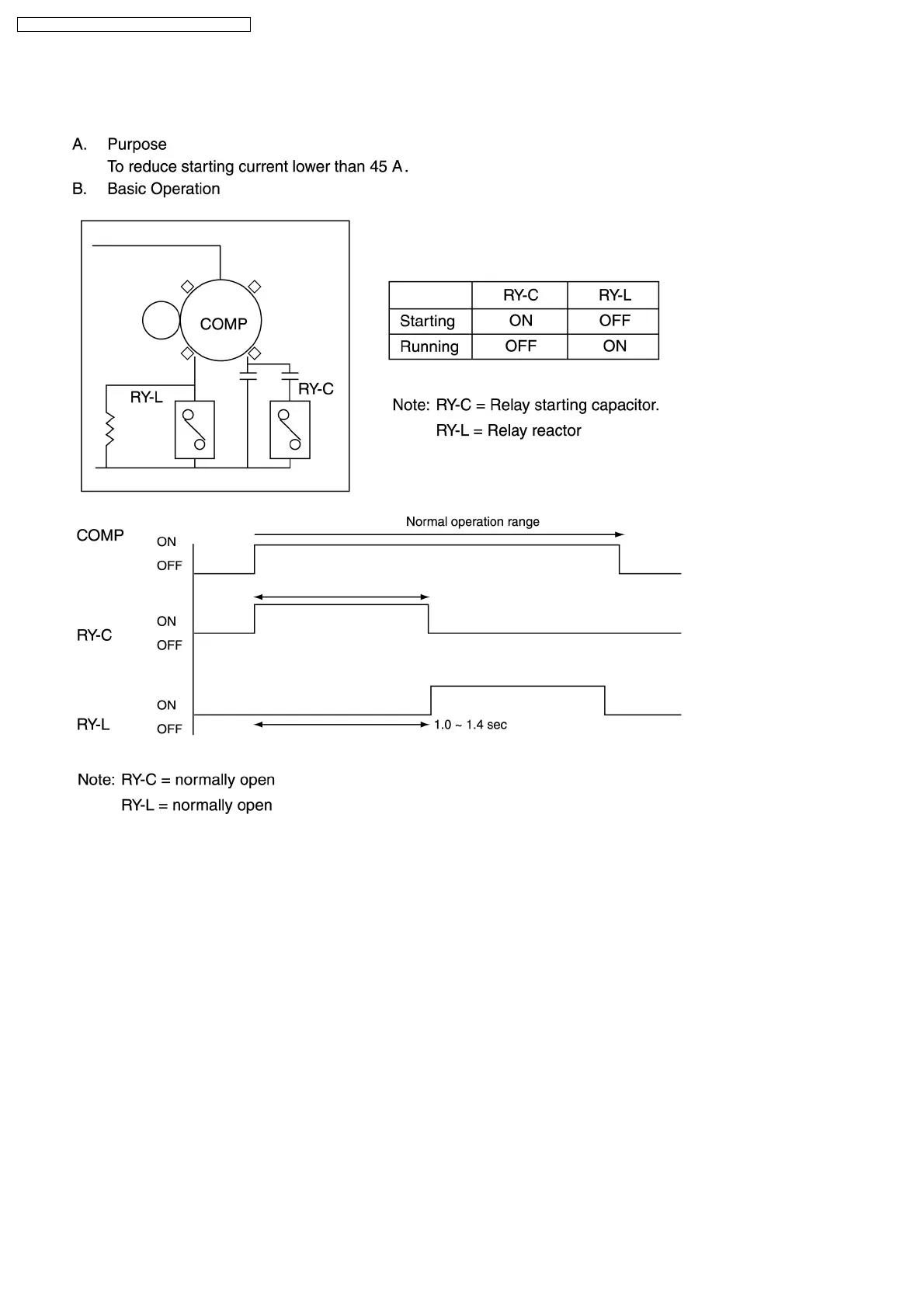

1. When indoor relay is turn ON, starting capacitor will be turn ON through RY-C for ~ 1 second.
After that reactor will be turn ON through RY-L and in the same time RY-C will turn OFF cause starting capacitor to be OFF.
2. When the unit operation ON by remote controller or thermostat OFF -
→
ON the starter kit will be functioned.
3. When the unit operation OFF --
→
ON by the inner protector, the starter kit will be not function, mean the unit will be ON as a
normal operation.
