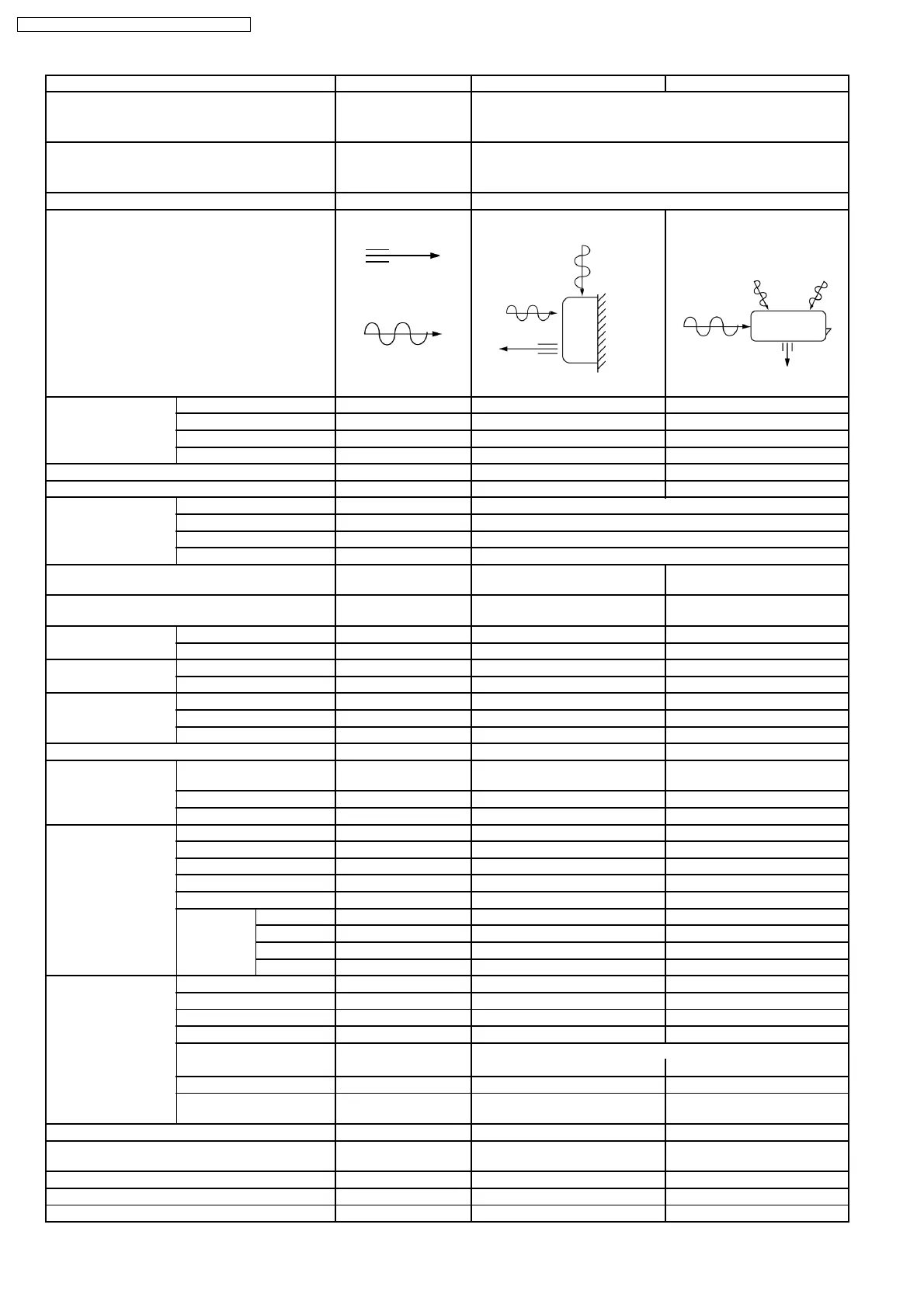

Panasonic CS-C18CKR - Page 8

Unit CS-C24CKR CU-C24CKR
Power Source Phase, Voltage, Cycle Single, 230 - 240, 50 Hz
Cooling Capacity kW (BTU/h) 7.03 (24,000) - 7.03 (24,000)
Moisture Removal l/h (Pint/h) 4.0 (8.5)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) 13.9 (492) - 13.9 (492) 26.7 (940) - 28.4 (1,004)
Indoor Air (Me) m
3
/min (cfm) 15.4 (544) - 15.4 (544) —
Indoor Air (Hi) m
3
/min (cfm) 16.9 (597) - 16.9 (597) 46.5 (1,640) - 47.5 (1,680)
Indoor Air (SHi) m
3
/min (cfm) 17.5 (617) - 17.5 (617) —
Noise Level dB (A) High 46 - 46, Low 40 - 40 High 54 - 54
Power Level dB 59 - 59 67 - 67
Electrical Data Input Power kW 2.51 - 2.61
Running Current A 12.0 - 12.2
EER W/W (BTU/hW) 2.80 - 2.69 (9.56 - 9.20)
Starting Current A 43.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 5/8”
L ; Half Union 1/4”
G ; 3-way valve 5/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (2.5 mm
2
) —
Dimensions Height inch (mm) 10 - 13/16 (275) 29 - 17/32 (750)
Width inch (mm) 39 - 9/32 (998) 34 - 7/16 (875)
Depth inch (mm) 8 - 9/32 (210) 13 - 19/32 (345)
Net Weight lb (kg) 24 (11.0) 130 (59.0)
Compressor Type — Rotary (1 cylinder) rolling piston
type
Motor Type — Induction (2-poles)
Rated Output kW — 2.2
Air Circulation Type Cross-flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-poles) Induction (6-poles)
Input W 44.8 - 53.5 182 - 204
Rated Output W 30 66
Fan Speed Low rpm 1,220 - 1,220 450 - 480
Medium rpm 1,350 - 1,350 —
High rpm 1,480 - 1,480 785 - 800
SuperHigh rpm 1,530 - 1,530 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2 × 15 2 × 34
FPI 21 18
Size (W × H × L) mm 810 × 315 × 25.4 864.1
884.1
× 714.0 × 25.4
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (cm
3
) — SUNISO 4GDID or ATMOS
M60 (1,130)
Refrigerant (R-22) g (oz) — 1,520 (53.7)
Thermostat Electronic Control Mechanical Control
Protection Device — Inner Protector
8
CS-C18CKR CU-C18CKR / CS-C24CKR CU-C24CKR
