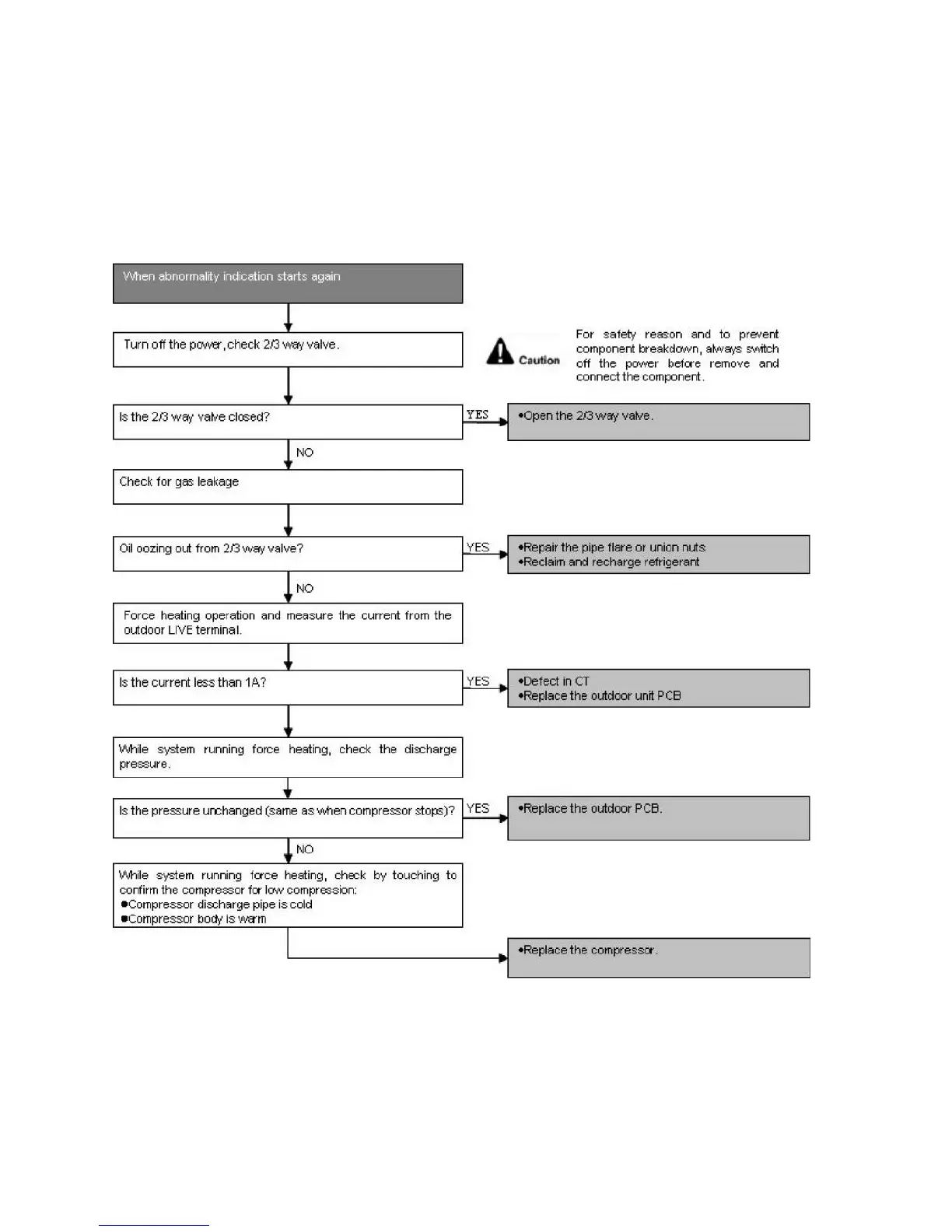

16.4.5 H16 (Outdoor Current Transformer Open Circuit)

Malfunction Decision Conditions

 A current transformer (CT) is detected by checking the compressor running frequency (≥ rated frequency) and

CT detected input current (less than 0.65A) for continuously 20 seconds.

Malfunction Caused

 CT defective

 Outdoor PCB defective

 Compressor defective (low compression)
