Panasonic CS-E21GKR - Outdoor Unit Exploded View CU-E18 GKR CU-21 GKR; CU-E18 GKR CU-21 GKR Outdoor Unit Exploded View

83

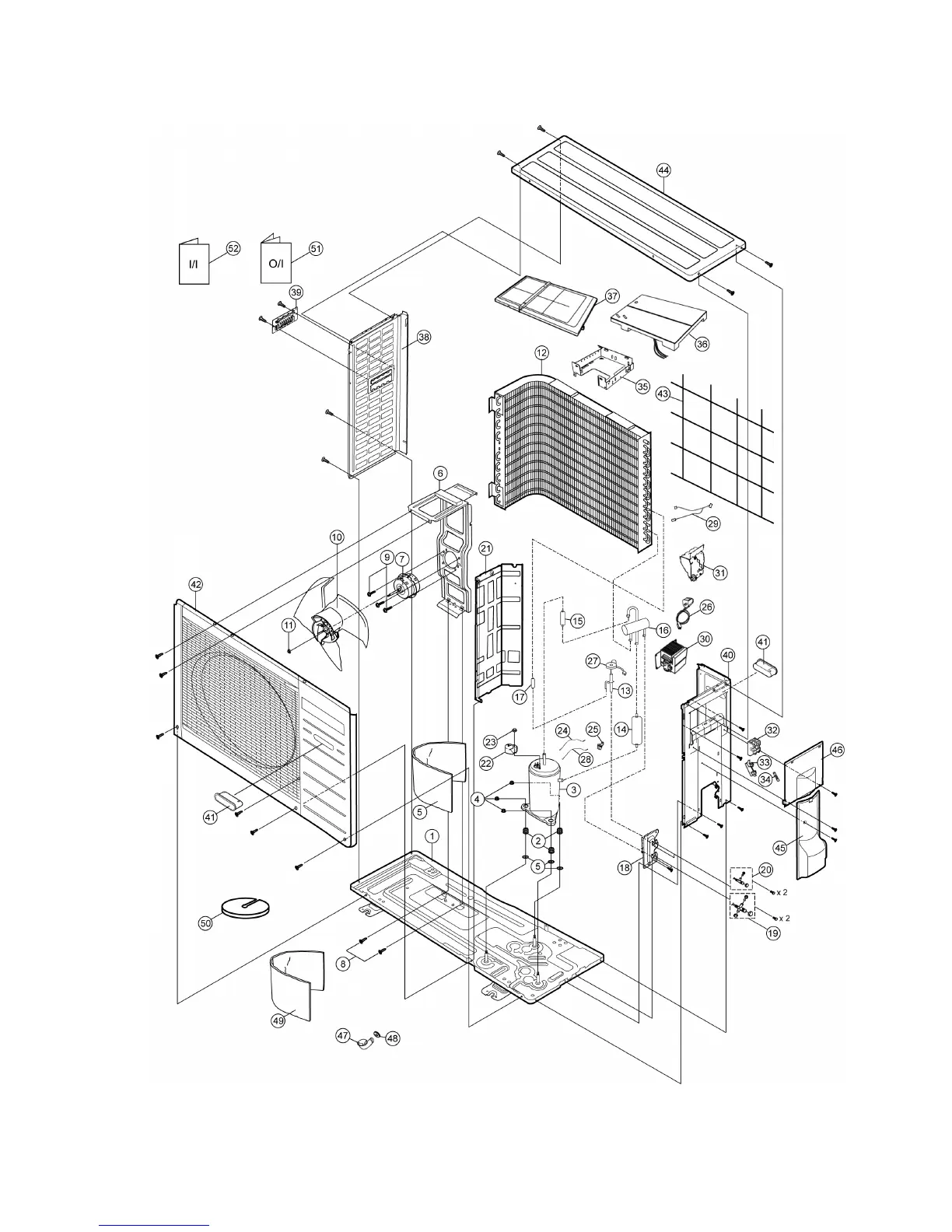

17.2. Outdoor Unit
CU-E18GKR CU-21GKR
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
