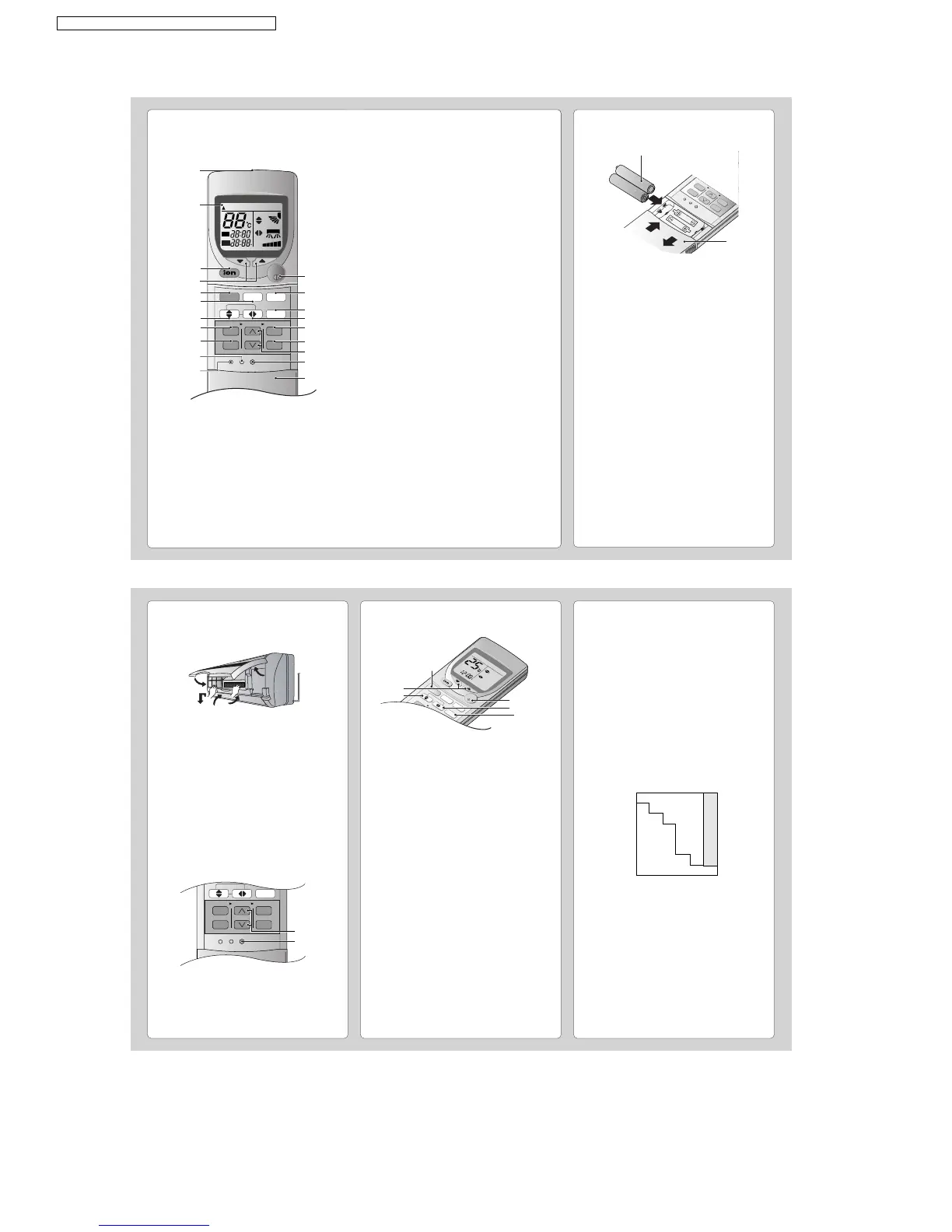

NAME OF EACH PART
■ Remote Control
● Remote Control Signal.
• Make sure it is not obstructed.
• Maximum distance : 10 m.
• Signal received sound.
One short beep or one long beep.
● Notes for Remote Control.
• Do not throw or drop.
• Do not get it wet.
• Certain type of fluorescent lamps may affect
signal reception. Consult your dealer.
● How to Insert the Batteries
1
Slide down the remote control cover completely
2
Insert the batteries
– Be sure the direction is correct
– 12.00 at display - flashing
• Set the current time (CLOCK) immediately to
prevent battery exhaustion.
● About the batteries
• Can be used for approximately one year.
● Observe the following when replacing the
batteries
• Replace with new batteries of the same type.
• Do not use rechargeable batteries (Ni-Cd).
• Remove the batteries if the unit is not going to be
used for a long period.
1 Signal Transmitter
2 Operation Display
3 Ionizer Mode Operation Button
4 Room Temperature Setting Button
(Illuminating button)
5 Operation Mode Selection Button
6 Quiet Mode Operation Button
7 Vertical Airflow Direction Button
8 ON-Timer Button
9 OFF-Timer Button
0 Reset Point
(Press with fine-tipped object to clear the memory)
! Check Point
To be used by the service technician only.
@ OFF/ON Button
(Illuminating button)
# Powerful Mode Operation Button
$ Fan Speed Selection Button
% Horizontal Airflow Direction Button
^ Timer Set Button
& Timer Cancellation Button
* Time-Setting Button
( Clock Button
) Remote Control Cover
AUTO
O
F
AUTOHEAT
DRYFA NCOOL
FAN
AUTO
AUTO
RESET
CLOCK
AIR SWING
OFF
CANCEL
1
2
3
TIMER
POWERFUL
AUTO
MANUAL
ECONOMY
SLE
ON
SET
FAN SPEED
MODE
CHECK
TEMP
AUTAUTO
ON
OFF
AUTAUTOHEAHEAT DRDRYFANANCOOLCOOL
FANAN
AUTAUTO
AUTAUTO
CLOCK
FAN SPEED
AIR SWING
OFF
CANCEL
ON
SET
1
2
3
TIMER
$
^
&
%
(
*
3
8
7
9
0
4
)
CHECK RESET
2
1
!
MODE
POWERFUL
QUIET
$
5
6
OFF/ON
#
PREPARATION BEFORE OPERATION
■ Indoor Unit
1
Connect the power supply cord to an independent
power supply
2
Open the front panel
3
Remove the air filters
4
Fit the air purifying filters in place
5
Insert the air filters
6
Close the front panel
■ Remote Control
– To set the current time
1
Press 1.
2
Then press 2 to increase or decrease the time.
3
Press 1 again.
Set time at display will light up.
AUTO
AUTO H EAT DRY FANCOOL
FAN
AUTO
CLOCK
FAN SPEED
AIR SWING
OFF
CANCEL
ON
SET
1
2
3
TIMER
1
2
RESETCHECK
6
2
1
4
5
3
■ Setting Temperature
• Press 3 to increase or decrease the temperature.
• The temperature can be set between 16°C ~ 30°C.
(Not adjustable during Fan Operation.)
• Recommended temperature:
HEAT : 20°C ~ 24°C
COOL : 26°C ~ 28°C
DRY : Approx. room temperature
■ Automatic Operation
• At the start of the Automatic operation, Heating,
Cooling or Soft Dry is automatically selected according
to the outdoor temperature, indoor temperature and
setting temperature.
• The operation mode changes every half hour, when
necessary.
HOW TO OPERATE
■ To start the operation
• Press 1.
•
POWER indicator (green) on the indoor unit will light up.
(LED blinks when the room temperature is low at the
start of heating or operation mode is selected during
Automatic Operation.)
The power monitor lamps light up to show the
compressor operating condition.
• To stop, press once more.
■ Setting Mode
• Press 2 to select:-
AUTO – Automatic Operation
HEAT – Heating Operation
COOL – Cooling Operation
DRY – Soft Dry Operation
FAN – Fan Operation
OFF
ON
HEAHEAT DRDRYFANANCOOL
COOL
CHECK
TEMP
AUTAUTO
AUTAUTO
FANAN
AUTO
RESET
CLOCK
AIR SWING
OFF
CANCEL
1
2
3
TIMER
OFF/ON
POWERFUL
ON
SET
FAN SPEED
MODE
AUTO
QUIET
2
3
5
1
6
4
13°C 19°C 21°C 23°C 25°C
36°C
32°C
31°C
18°C
16°C
(Ex) Setting Temperature at 25°C
Outdoor Temperature
Room Temperature
C
O
O
L
I
N
G
S
O
F
T
D
R
Y
H
E
A
T
I
N
G
42
