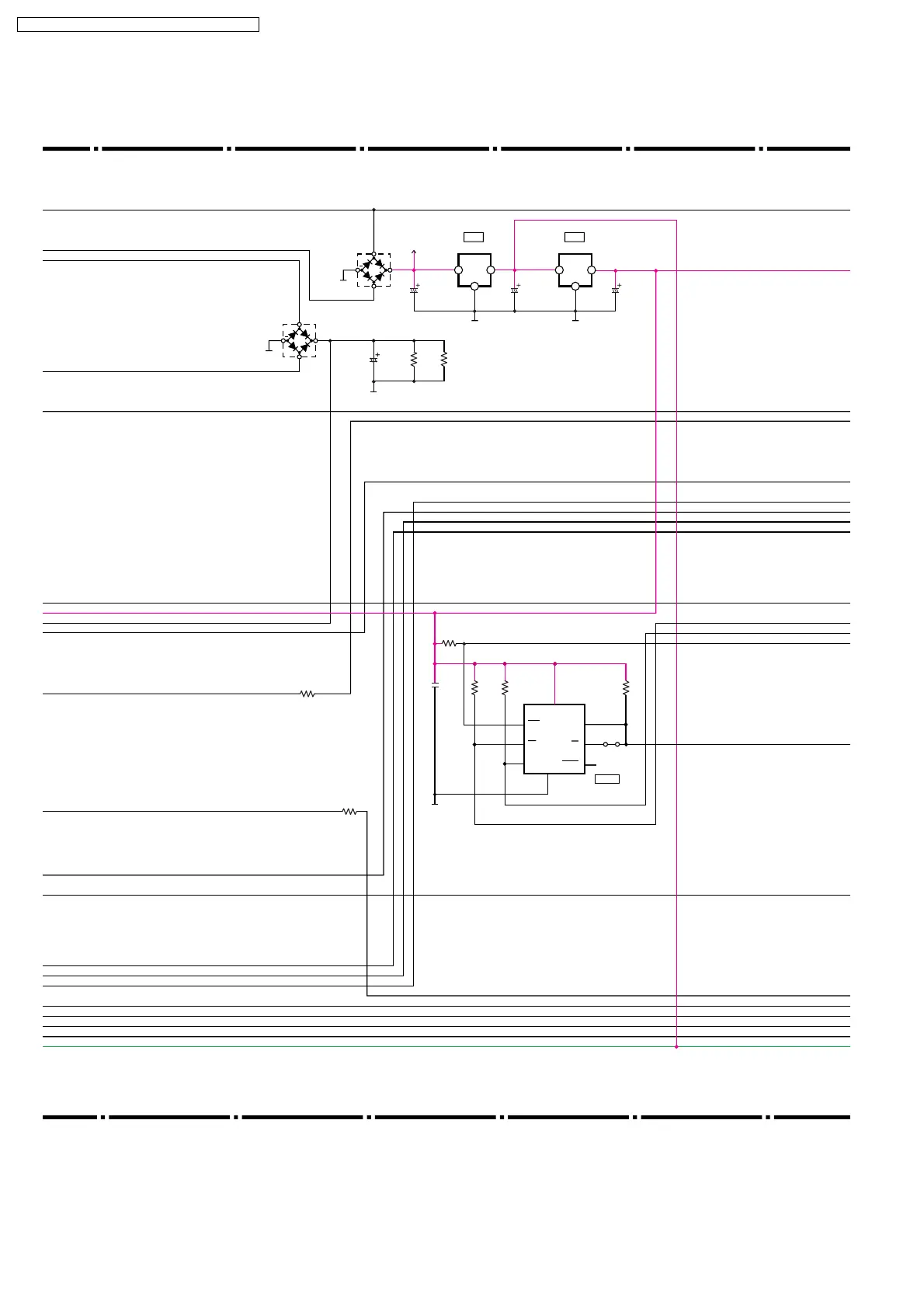

SCHEMATIC DIAGRAM 2/4
C30
470µ
63V
R46
22kΩ
R71
22kΩ
R112
1kΩ
R113
160Ω 1/4W
1
2
4
3
DB02
+
~
~
1
2
4
3
DB03
+
~
~
IC08
NR
G
I
12V
REGULATOR
O
C31
3300µ
35V
IC09
G
I
5V
REGULATOR
O
C33
470µ
25V
C30
470µ
63V
C34
100µ
16V
IC03
D0
4
6
5
7
1
3
8
2
CS
RST
SCK
BUSY
D1
BR9080F
JP8
R33
10kΩ
R34
10kΩ
R35
10kΩ
R44
10kΩ
C18
1µ
16V
88
CS-E9DKDW CU-E9DKD / CS-E12DKDW CU-E12DKD
