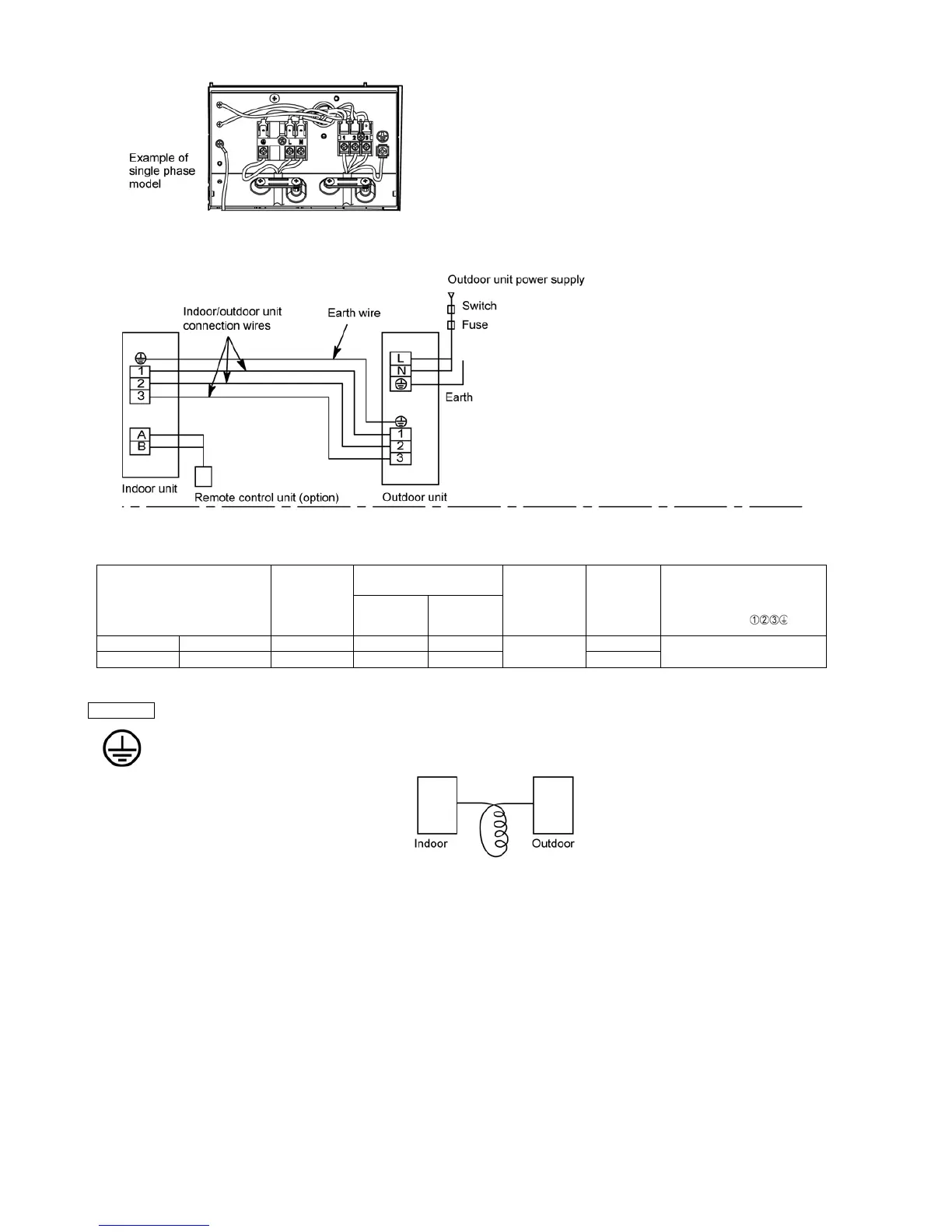

Earth lead wire shall be longer than other lead wires as shown
in the figure for the electrical safety in case of the slipping out of
the cord from the anchorage.
Outdoor Unit/Single-Phase Model
• Power supply specifications
Model name
Leakage
current
breaker (A)
Circuit breaker
(Minimum Capacity) Minimum
power
supply cables
4mm
2
cable
based on
length (m)
Indoor/outdoor unit connection
power cables
(terminals )
Switch (A) Fuse (A)
CU-YL24HB*** 220/230/240V~ 30 30 20
4mm
2
14
2.5mm
2
x 4
CU-YL28HB*** 220/230/240V~ 30 30 20 14
NOTE
1. Where ground work (earth) is carried out, do not connect the ground return to the gas pipe, water line pipe, grounded circuit of
the telephone and lightning rod, or ground circuit of other product in which earth leakage breaker is incorporated. (Such action is
prohibited by statute, etc.)
Make sure the indoor and outdoor connection wires are detangled. (There might be effect to received outside noise.)
2. Use the standard power supply cables for Europe (such as H05RN-F or H07RN-F which conforms to CENELEC (HAR) rating
specifications) or use the cables based on IEC standard. (245IEC57, 245IEC66)
3. Select the particular size of electrical wire for power supply cables in accordance with the standards of the given nation and
region.
