10. When installing the product in a place where it will be
affected by typhoon or strong wind such as wind
blowing between buildings, including the rooftop of a
building and a place where there is no building in
surroundings, fix the product with an overturn
prevention wire, etc. (Overturn prevention fitting
model number: K-KYZP15C)
11. If installing in a location which is prone to snowfall,
place the installation base as high as possible, and be
sure to install a roof or enclosure which does not allow
snow to accumulate.
12. Avoid installing the unit in places where petroleum
products (such as machine oil), salinity, sulphurous,
gases or high-frequency noise are present.
13. Be sure to leave enough space around the outdoor unit to maintain proper performance and to allow access for routine
maintenance.

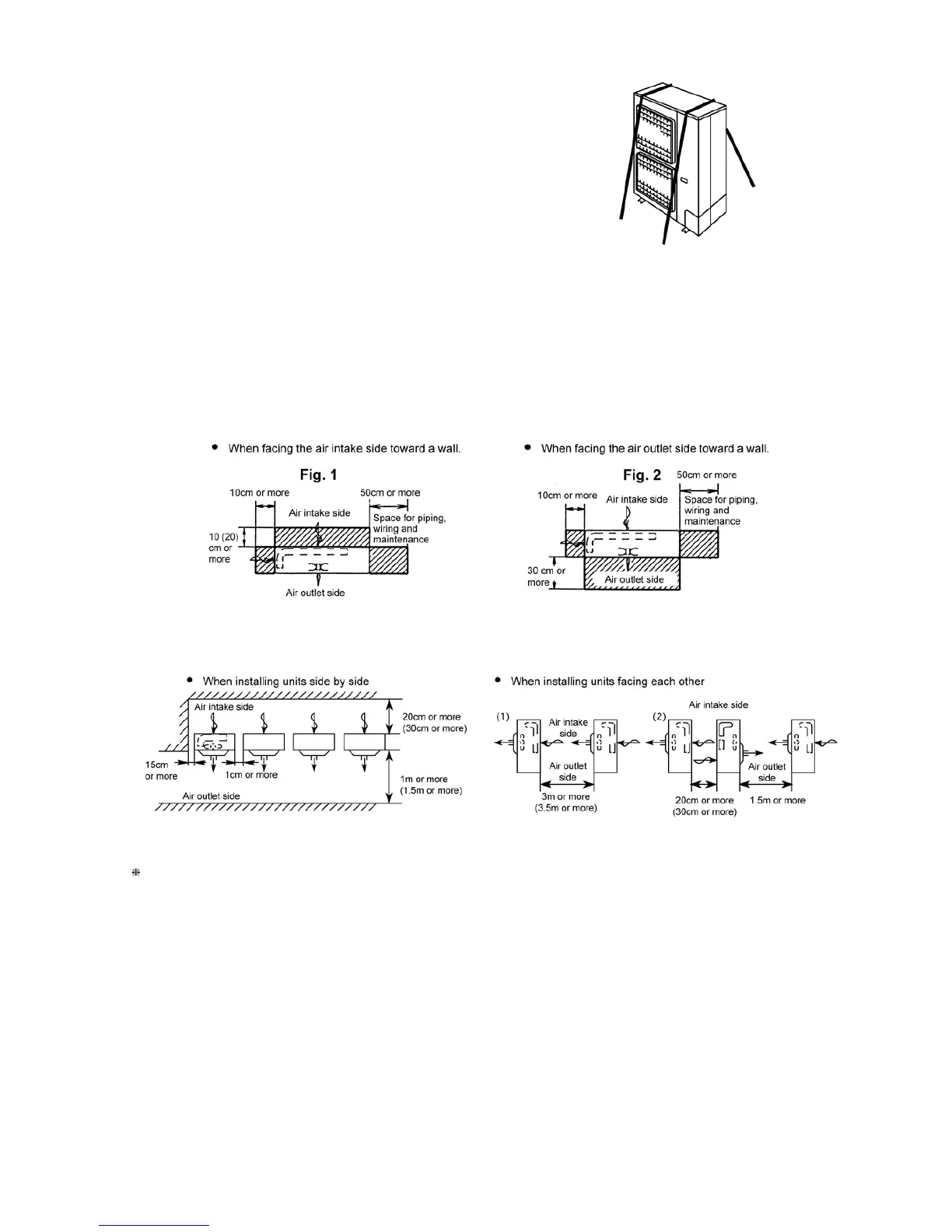

• Allow enough space from any obstacles as shown in Fig.1.2 below in order to prevent short-circuits from occurring.
(If installing more than one outdoor unit, make the necessary space available as outlined in 14.)
However, there should be at least 1 meter of free space above the unit.
• The height of any obstacles at the air intake and outlet sides should not be greater than the height of the outdoor unit.
14. If installing more than one outdoor unit, allow enough space around each unit as shown below.
• The distance given above are the minimum distance required in order to maintain proper performance.
Allow as much space as possible in order to get the best performance from the units.
Maintain sufficient space above the unit.
Values inside brackets indicate distances when installing the 5HP.
