23

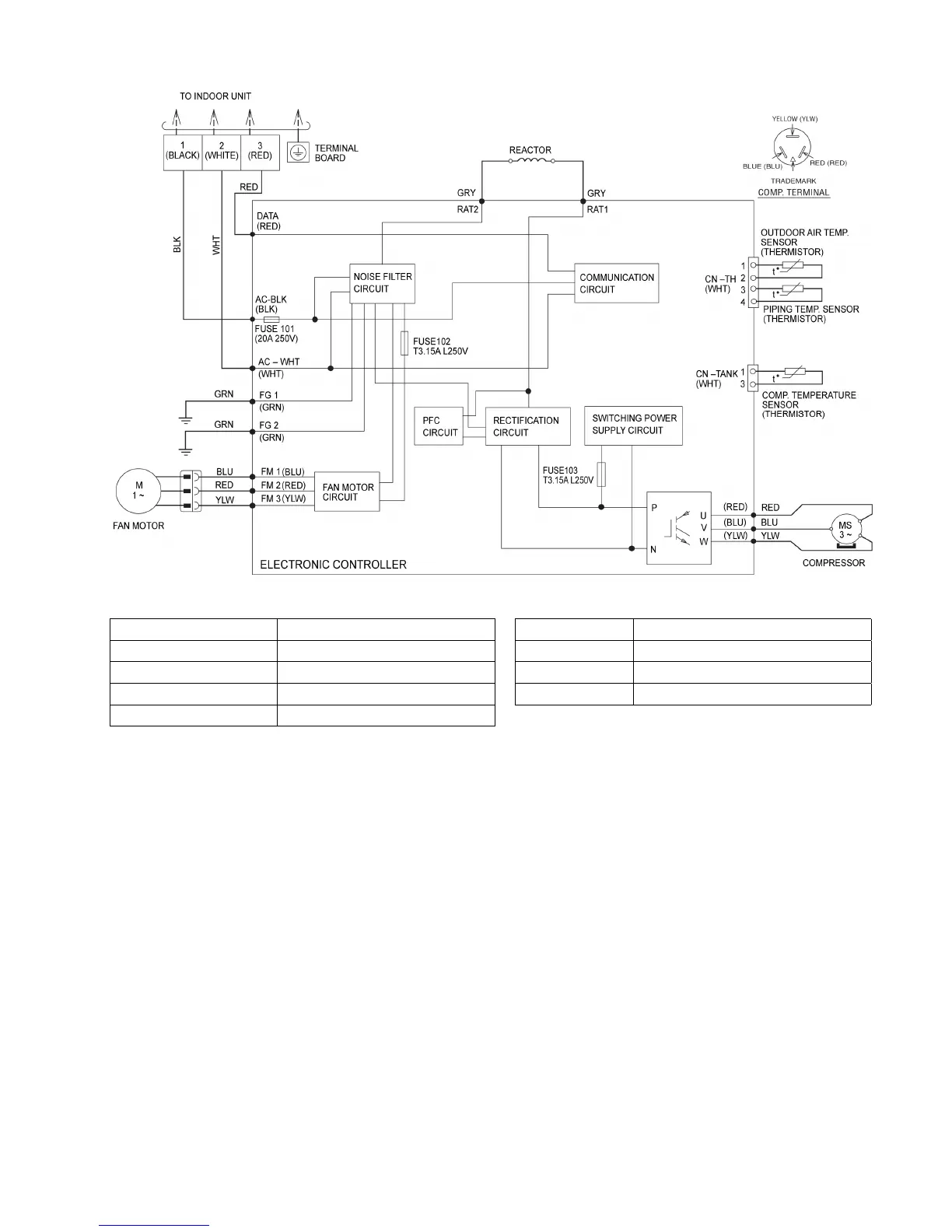

7.2.2 CU-PS12PKV
Resistance of Compressor Windings
Resistance of Fan Motor Windings
MODEL CU-PS12PKV
MODEL
CU-PS12PKV
CONNECTION 5RS092XCD21
CONNECTION
CWA951466
U-V 1.152
Ω
YELLOW-BLUE
262.7
Ω
U-W 1.152
Ω
RED-YELLOW
271.0
Ω
V-W 1.152
Ω
22
24
