1. The Electronic Controller, a Signal Receiver and an
Indicator (Fig. 3) can be seen by the below steps:
•
• •
•
Open the Intake Grille and remove the screw at the front
of the Front Grille. (Fig. 1)
•
• •
•
Remove the 3 caps and 3 screws at the bottom of the
Front Grille. (Fig. 1)
•
• •
•
Remove the Front Grille by releasing the 3 hooks at the
top of the Front Grille. (Fig. 1)
•
• •
•
Unhook the tabs at the Control Board to remove the
Control Board Cover. (Fig. 2)
2. To remove the Electronic Controllers:
•
• •
•
Release the 2 Particular Piece. (Fig. 3)
•
• •
•
Release the CN-REC/DISP connectors. (Fig. 4)
•
• •
•
Release the CN-TH connector. (Fig. 4)
•
• •
•
Release the CN-MAIN connector. (Fig. 4)
•
• •
•
Release the CN-001 connector. (Fig. 4)
•
• •
•
Release the CN-002 connector. (Fig. 4)
•
• •
•
Release the CN-STM1 connector. (Fig. 4)
•
• •
•
Release the CN-STM2 connector. (Fig. 4)
•
• •
•
Release the CN-ION connector. (Fig. 4)
•
• •
•
Release the hooks that hold the Electronic Controller.
(Fig. 3)

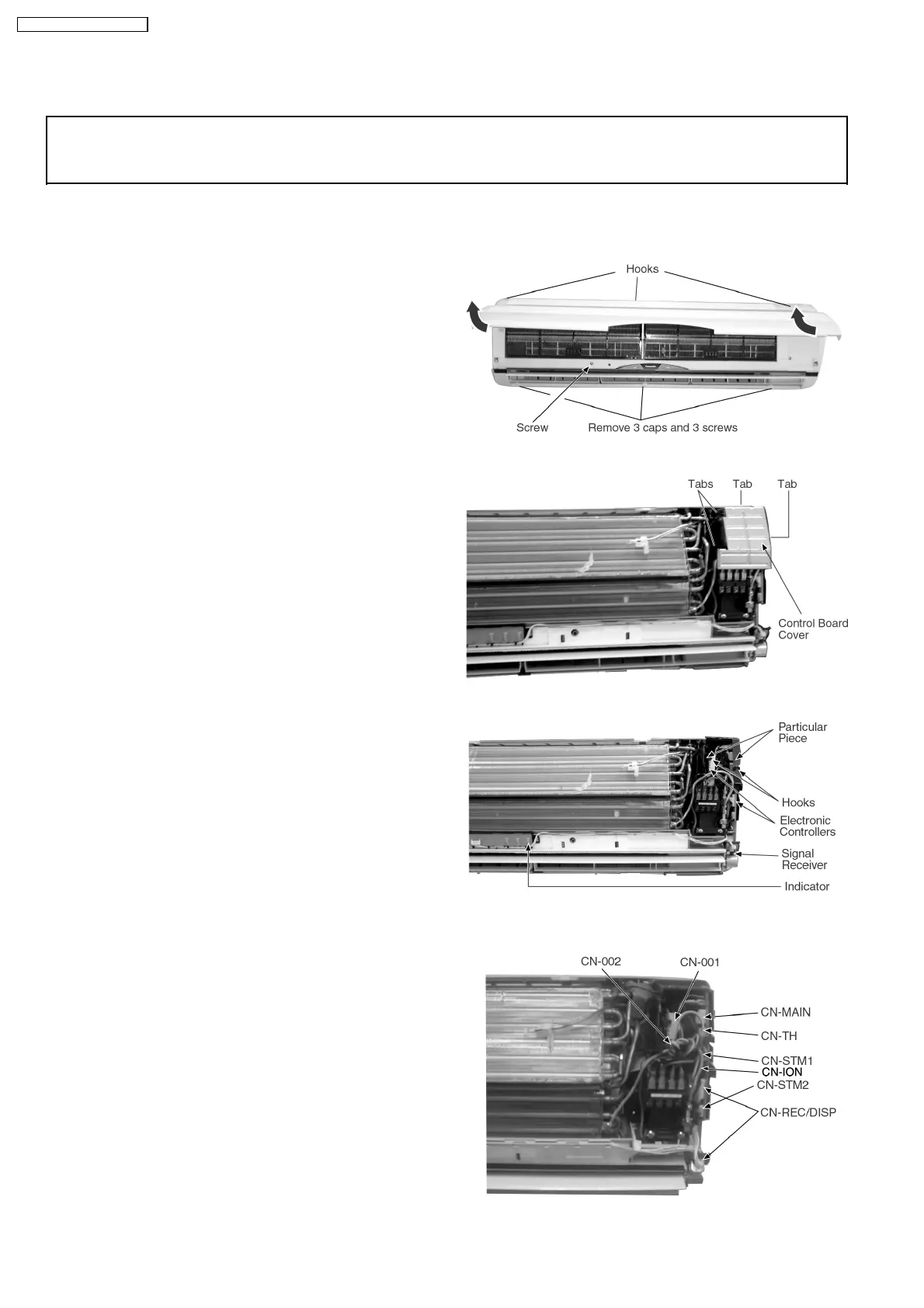

Fig. 1
Fig. 2
Fig. 3
Fig. 4
12 Servicing Information
Caution:
•
• •
•
Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use
a high temperature soldering iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ± 10°C).
•
• •
•
Pb free solder will tend to splash when heated too high (about 1100° F/600°C).
12.1. Indoor Electronic Controllers Removal Procedures
52
CS-PW18CKE CU-PW18CKE
