93

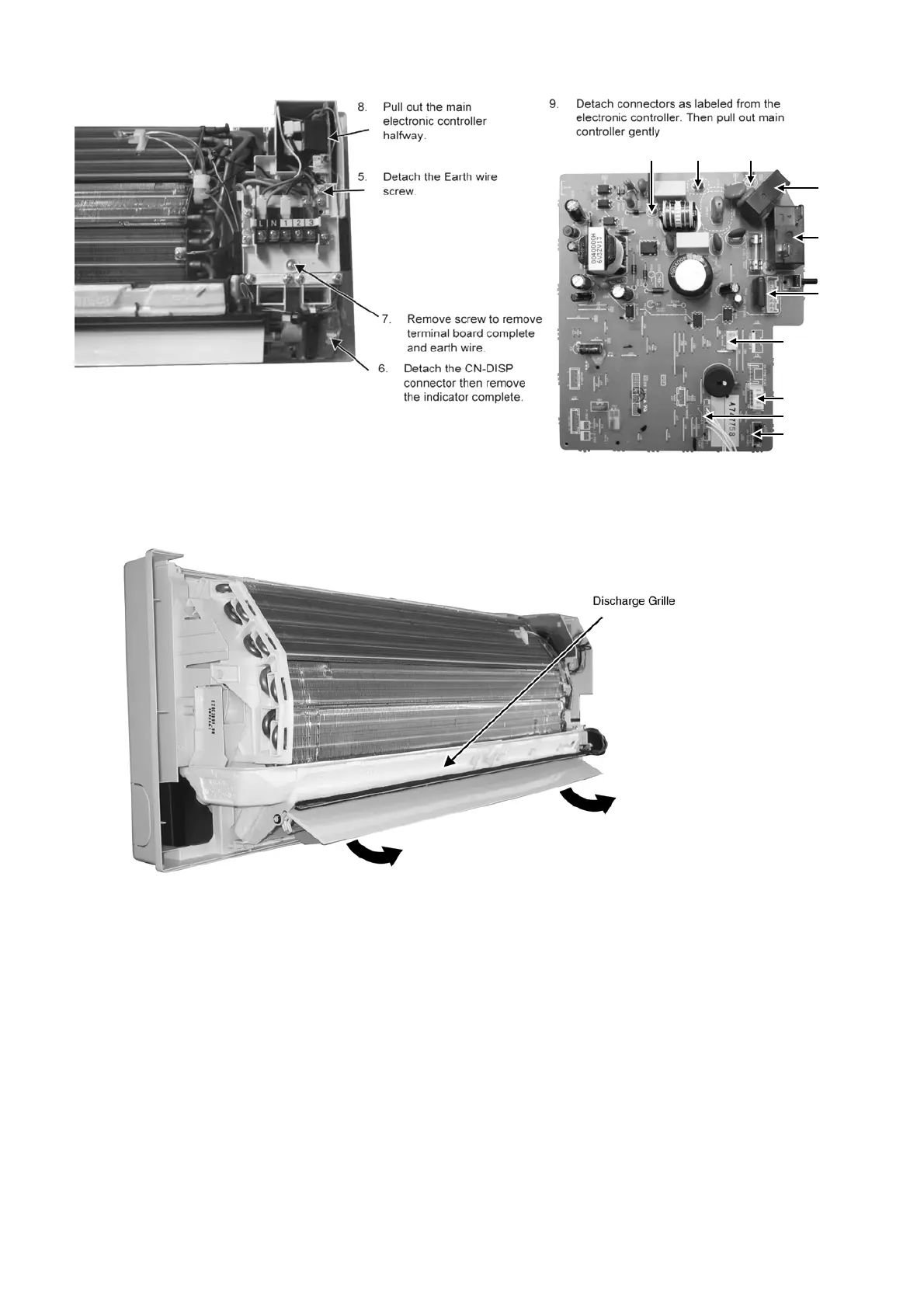

16.1.1.3 To remove power electronic controller
CN-FM
CN-STM1
CN-TH
CN-DISP
CN-RMT
RY-PWR
AC303 G301AC304
RY-PWR2
Figure 3 Figure 4
16.1.1.4 To remove discharge grille
10. Pull out to remove the drain hose
from the discharge grille
11. Then pull the discharge grille
downward gently to dismantle it
Figure 5
To Next Page
