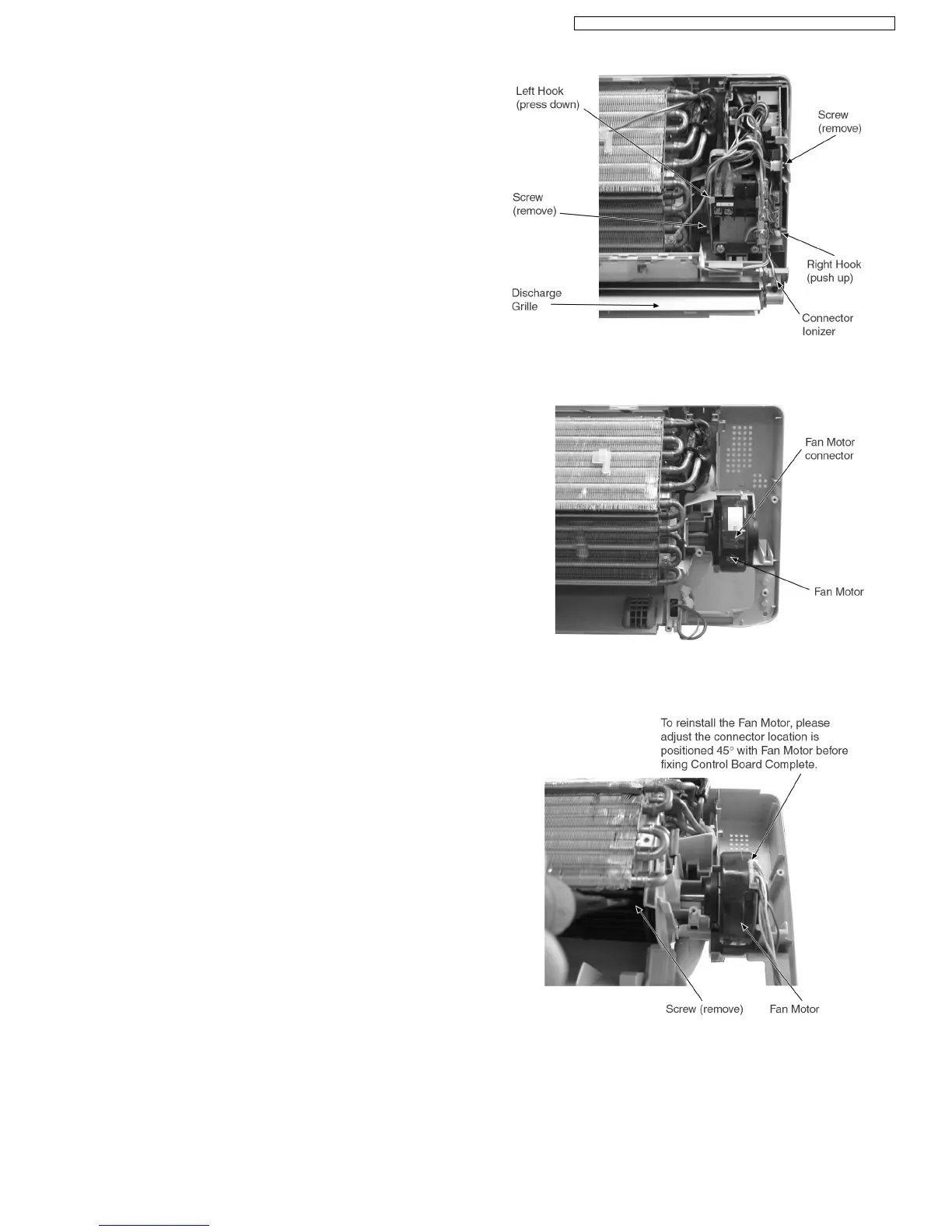

Pulling out the Drain Hose from outlet to remove the
Discharge Grille. (Fig. 5)
−
Removing the right and left screws. (Fig. 5)
−
Then remove the Control Board by pressing down the
hook at the left and pushing up the right hook. (Fig. 5)
−
Releasing connector lead wire Ionizer. (Fig. 5)
−
Release the Fan Motor leadwire by pressing the hook at
the center of the connector. (Fig. 6)
−
Remove the screw at the Cross Flow Fan. (Fig. 7)
−
REMINDER - To reinstall the Fan Motor, adjust the
connector of the Fan Motor as shown in the Fig. 7.
Fig. 5
Fig. 6
Fig. 7
