Panasonic CS-V7CKP Service Manual

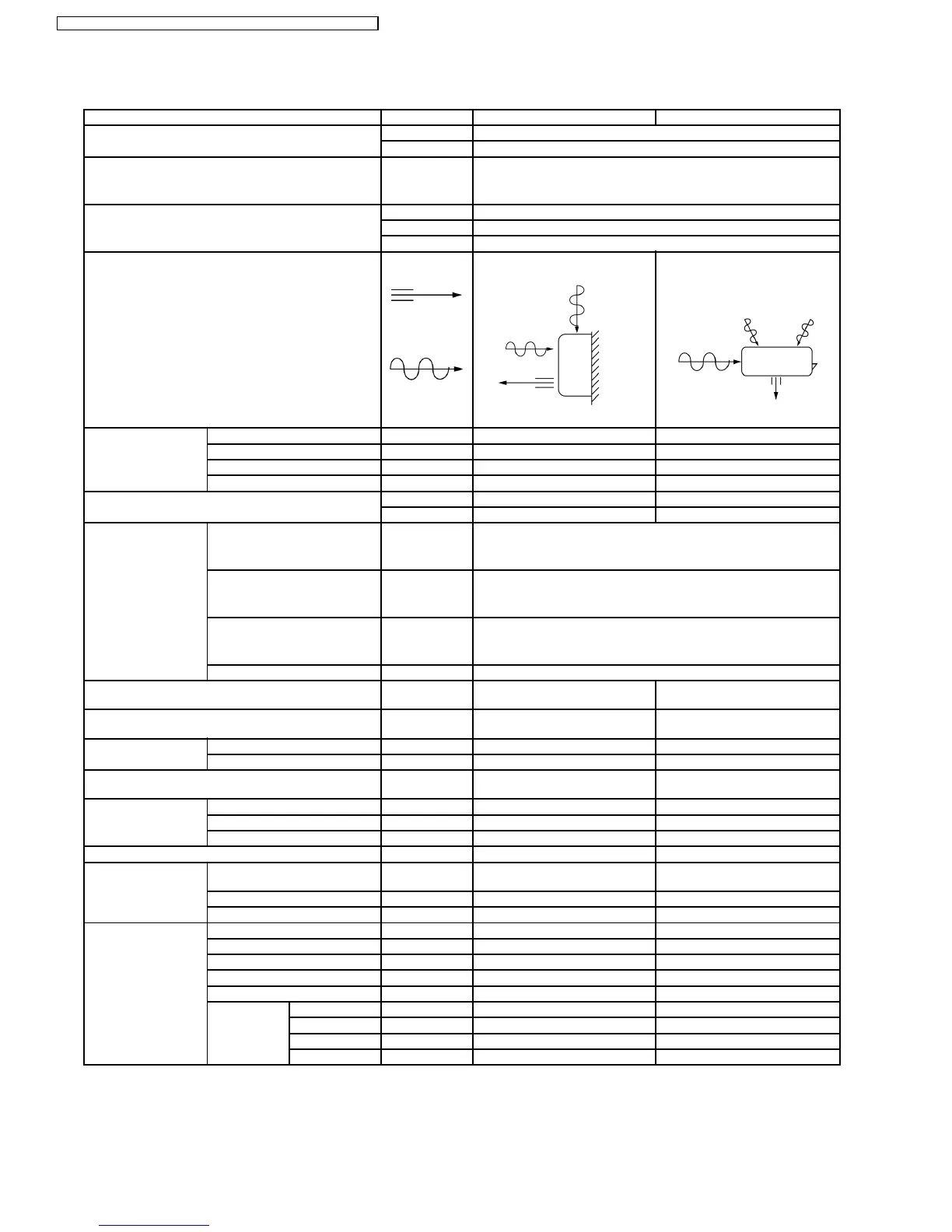

3 Product Specifications
Unit CS-V7CKP CU-V7CKP5
Cooling Capacity kW (kcal/h) 2.40 (2,060)
BTU/h 8,190
Moisture Removal l/h (Pint/h) 1.5 (3.2)
Phase Single
Power Source V 230
Cycle 50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) 6.4 (230) —
Indoor Air (Me) m
3
/min (cfm) 7.4 (260) —
Indoor Air (Hi) m
3
/min (cfm) 8.5 (300) 33.0 (1,160)
Indoor Air (SHi) m
3
/min (cfm) 9.4 (330) —
Noise Level dB (A) High 33, Low 26 High 46
Power level dB High 46 High 61
Electrical Data Input W 650
Running Current A 2.9
EER W/W (BTU/hW) 3.69 (12.6)
Starting Current A 12.5
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8”
L ; Half Union 1/4”
G ; 3-way valve 3/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length
Number of core-wire
m 1.9
3 (1.0 mm
2
)
—
—
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) 20 (9.0) 71 (32)
Compressor Type — Rotary (1 cylinder)
rolling piston type
Motor Type — Induction (2-poles)
Rated Output W — 670
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W 49.2 60.4
Rated Output W 15 30
Fan Speed Low rpm 800 —
Medium rpm 920 —
High rpm 1,050 830
SuperHigh rpm 1,140 —
6
CS-V7CKP CU-V7CKP5 / CS-V9CKP CU-V9CKP5 / CS-V12CKP CU-V12CKP5
