Panasonic CS-W24EKR User Manual

4
MODE
AIR
SWIN
G
FAN S PEED
QUIET
POWERFUL
1
2
3
TIMER
ON
OFF
CANCE
L
SET
RESET
CLOCK
OFF/ON
TEMP
COOL
AUTO
AU
T
T
O
AUTO
FAN
LCD display
Off/On
Fan speed selection
Memory reset
Clock setting
Temperature setting
Powerful operation
Operation mode
Quiet operation
Timer setting
Ion operation
Airflow direction
adjustment
Transmitter
■ About
Remote Control Preparation

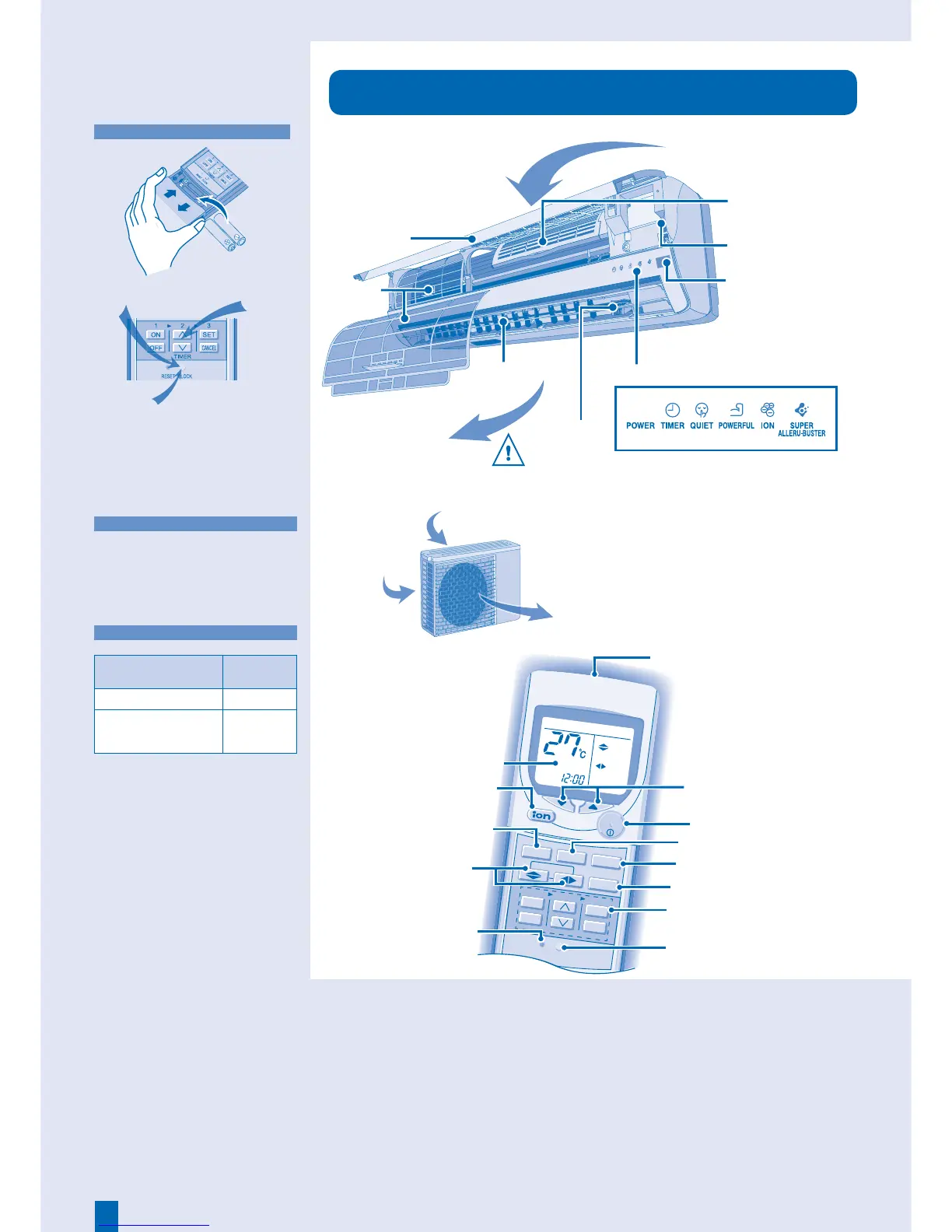

PRODUCT OVERVIEW
Air inlet (rear)
Air outlet
• Make sure it is not obstructed.
• Maximum distances: 10m.
• Certain fluorescent lights may
interfere with signal transmission.
Please consult your nearest dealer.
Remote Control Signal
Auto OFF/ON Button
5. Press again.
6. Close the cover.
• Timer operation will be based on
current time set.
• The batteries can be used for
approximately 1 year.
3. Press CLOCK.
Air inlet (side)
Indoor Unit
Indoor Unit
Outdoor Unit
Outdoor Unit
Remote Control
Remote Control
1. Press and
pull out.
2. Insert AAA
or R03
batteries.
4. Press to
set time.
Q
U
IET
PO
WERFUL
ION
SUPER
ALLERU-BUSTER
TIM
ERPOW
E
R
Air intake
Airflow direction
louver
Ionizer
Air filter
Front panel
Supersonic air
purifying device
Auto OFF/ON
button
Receiver
Discharged air
Do not touch
during operation
Indicator
Action Mode
Press once Automatic
Press and hold until
you hear one beep,
then release.
Cooling
• To turn off, press the AUTO OFF/ON
button again.
• To switch the remote control signal
receiving sound off or on.
1. Press until a single beep sound is
heard and release.
2. Press again until a double beep
sound is heard and release.
3. Press to switch the sound on or
off.
(Long beep - OFF; short beep
- ON)
