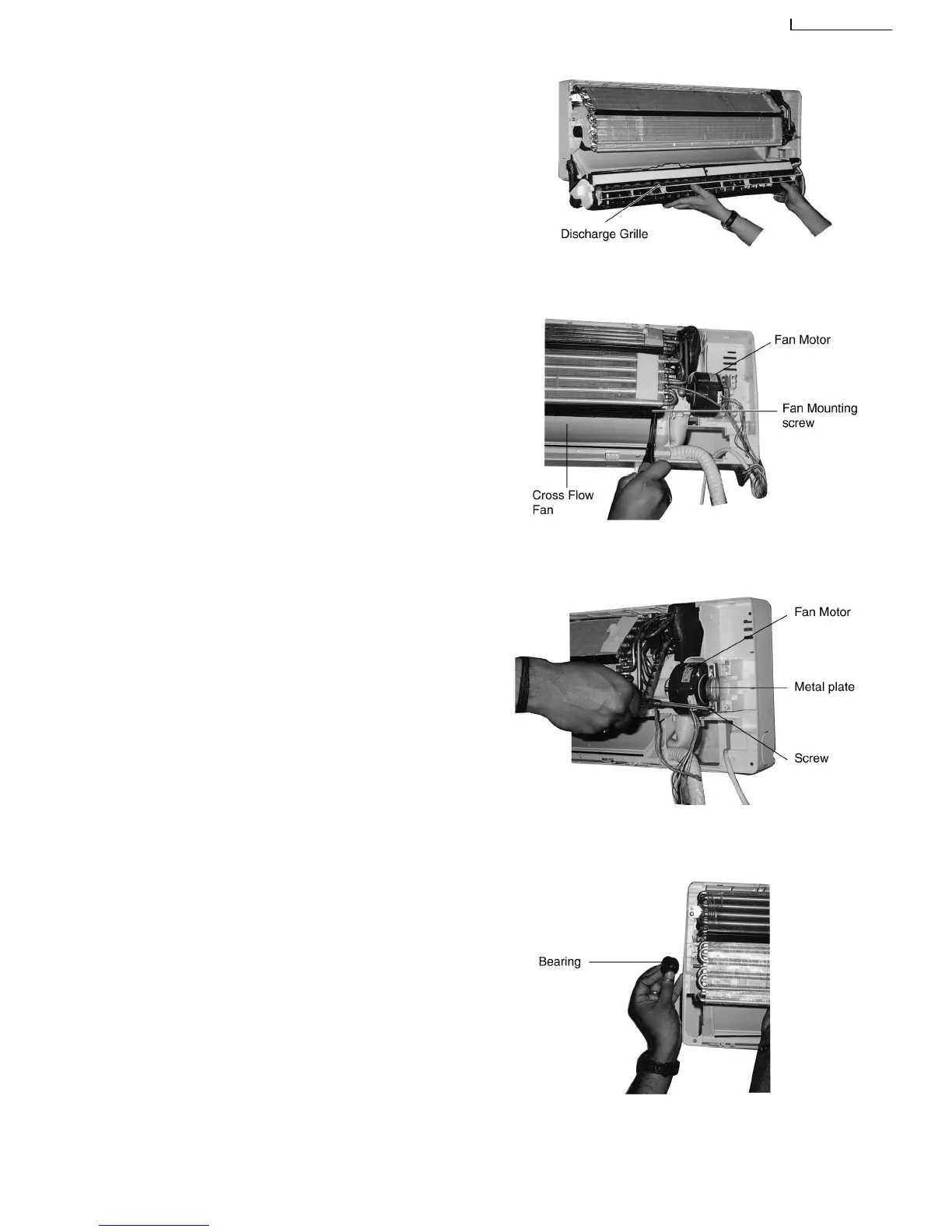

3. Remove the Discharge Grille.
Remove the Discharge Grille and then pull the
Discharge Grille in a down and forward direction.
4. Remove the Indoor Fan Motor.
Loosen the Fan Mounting Screw at the junction with
Cross Flow Fan.
Loosen the screw at the left side of the evaporator.
Pull off the Bearing at the left of the Cross Flow Fan.
Fig. 4
Fig. 5
Fig. 6
Fig. 7
59
CS-A28BKP5/CU-A28BKP5
