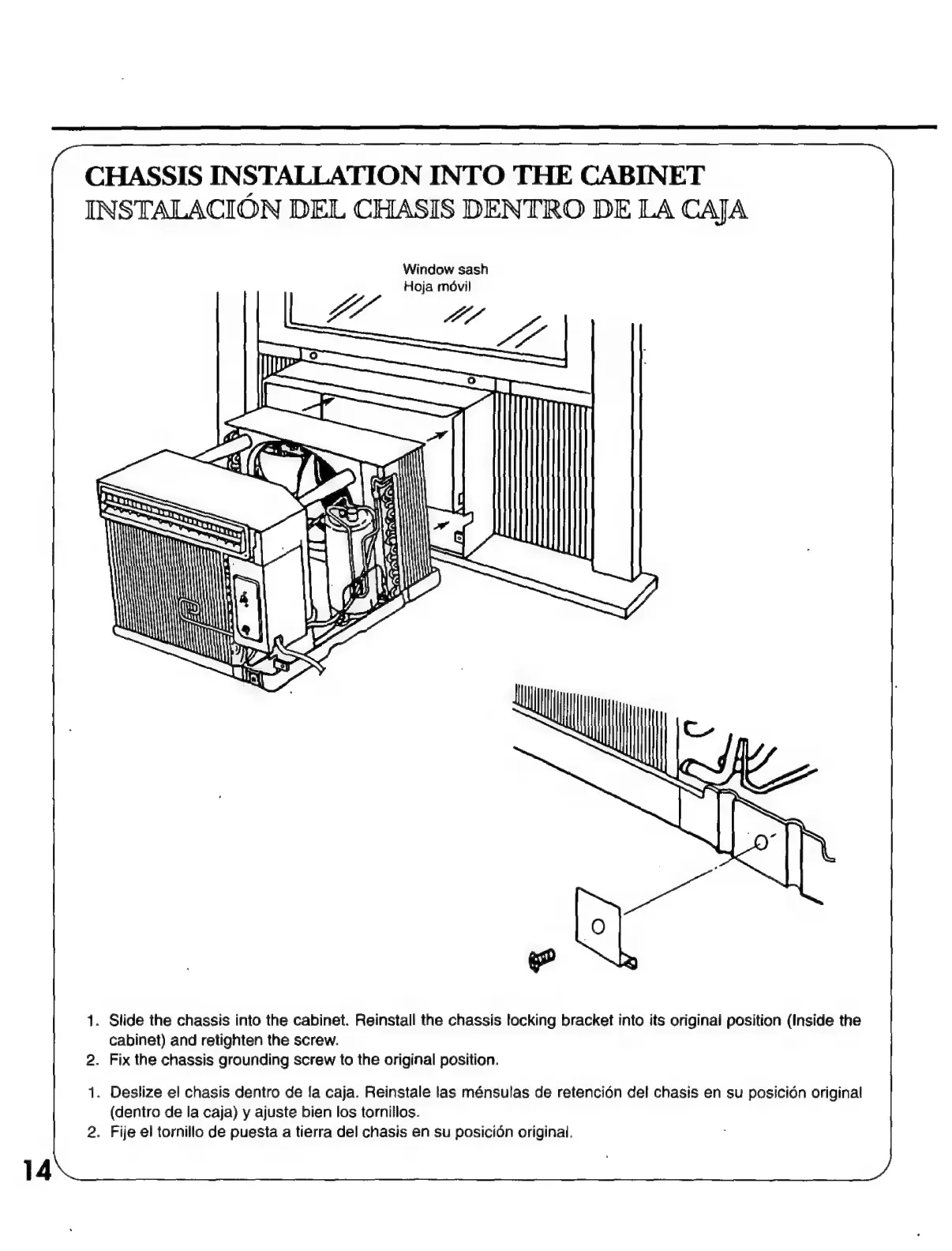

CHASSIS
INSTALLATION
INTO
THE
CABINET
INSTALACION
DEL
CHASIS
DENTRO
DE
LA
CAJA
Window
sash
Hoja
móvil
AW
=
E
oss
lini
.
Slide
the
chassis
into
the
cabinet.
Reinstall
the
chassis
locking
bracket
into
its
originai
position
(Inside
the
cabinet)
and
retighten
the
screw.
.
Fix
the
chassis
grounding
screw
to
the
original
position.
.
Deslize
el
chasis
dentro
de
la
caja.
Reinstale
las
ménsulas
de
retención
del
chasis
en
su
posición
original
(dentro
de
la
caja)
y
ajuste
bien
los
tornillos.
.
Fije
el
tornillo
de
puesta
a
tierra
del
chasis
en
su
posición
original.
