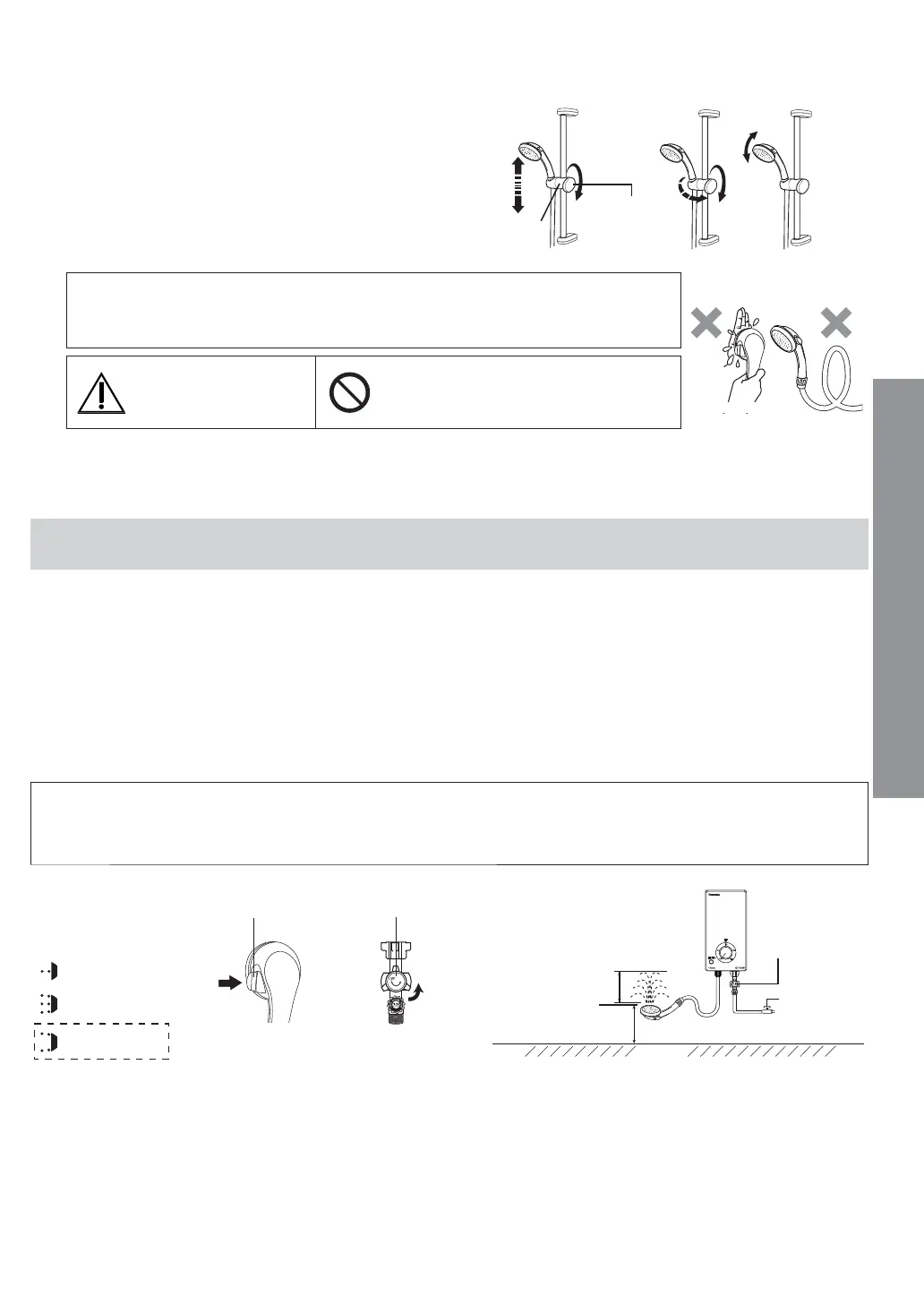

WATER FLOW RATE ADJUSTMENT
1. How to adjust to maximum water fl ow rate.
Step 1 : For DH-3VS1, DH-3VP1, DH-4VS1, DH-4VP1, DH-6VS1: Select Wide Shower mode on the Shower Head
using the Shower Select Button (refer Figure 1).
Step 2 : Turn OFF the Main Water Valve.
Step 3 : Turn the Shower Head upward at waist height.
Step 4 : Turn the Water Volume Knob anticlockwise to maximum volume position.
Step 5 : Gradually turn On the Main Water Valve and adjust the splashing height (H) of the shower.
It is recomended to adjust the water splashing height (H) at 100 cm ~ 110 cm (approximately 3 L/min).
(If splashing height (H) is too high, hot water temperature will drop because of an excessive fl ow rate).
Note:
1. Pay attention to shower temperature when reducing the volume of water.
The shower temperature will become very hot if the water fl ow rate is too low.
2. Water Volume Knob is at maximum position at this stage (refer Step 4).
Please adjust it to suitable fl ow rate using the Water Volume Knob by turning it clockwise.
MAX
Spot Shower
Normal Shower
Wide Shower
Shower Select Button
Water Volume Knob
Waist Height
H = 100 cm ~ 110 cm
Floor
Main Water
Valve
Water Volume Knob
Figure 1 Figure 2
Press
7. After using this Unit, please turn off the Power Knob and turn off the water supply by turning the Water Volume
Knob clockwise until the water fl ow is completely stopped.
8. For model DH-3VS1 / DH-3VP1 / DH-4VS1/ DH-6VS1 only:
Shower Head can be set to various position.
(a) (b)
(c)
Shower Hanger
Knob
Shower
Hanger
a) Loosen Shower Hanger Knob and adjusted higher or
lower position.
Tighten Shower Hanger Knob.
b) Loosen Shower Hanger Knob and adjusted to the left or
right position.
Tighten Shower Hanger Knob.
c) Adjust the angle of Shower Head upward or downward.
Note: In case of no water supply, close the Water Volume Knob by turn it clockwise
and make sure Power Knob is in Off condition (ELB indicator LED will light off).
This to prevent unnecessary water fl ow from Shower Head after the water supply
recovered.
CAUTION
Do not block the Shower Head with hand,
towel or bend the Shower Hose. The water
fl ow rate will drop and water temperature
may become very hot.
