16
RQT8881

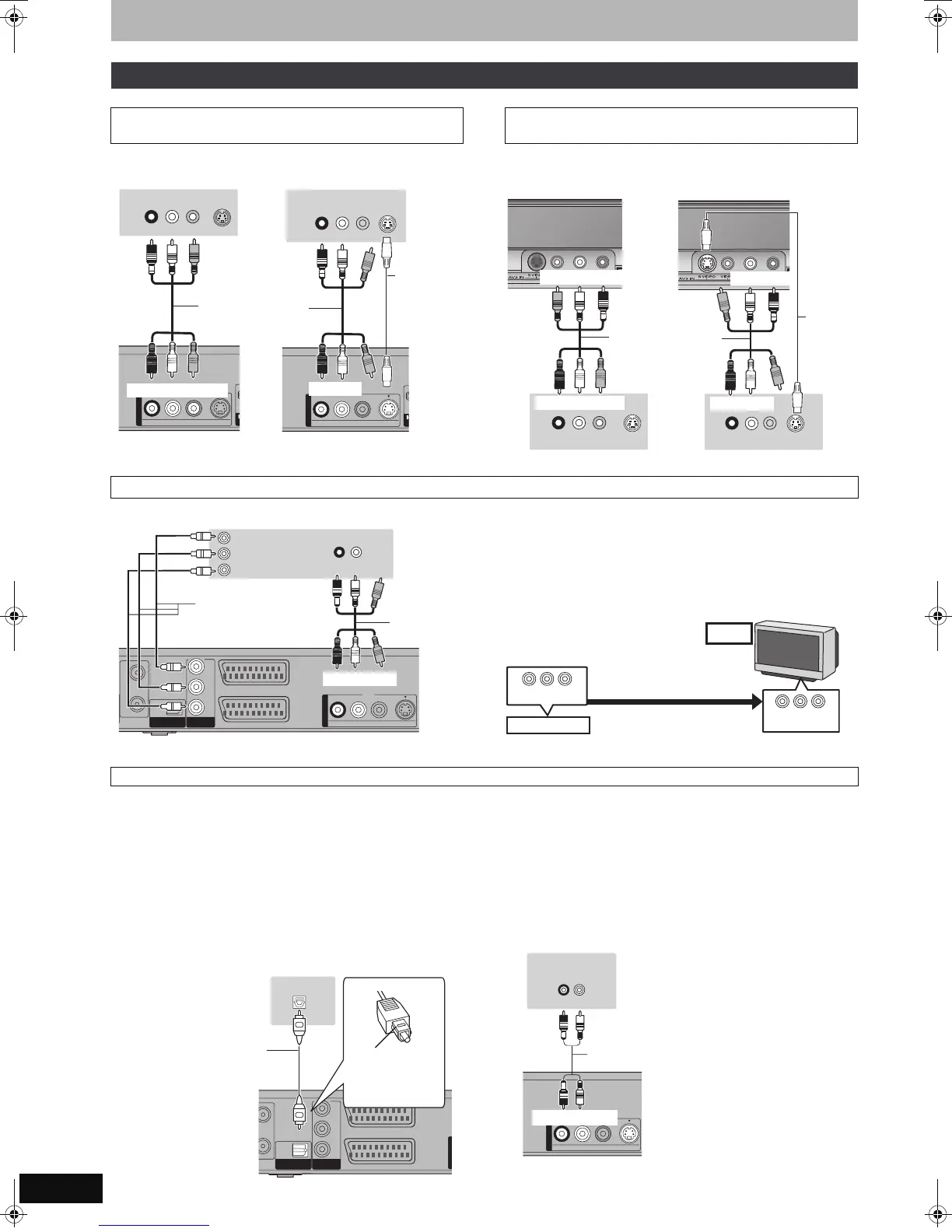

STEP 1 Connection
§
Leave “Yellow” unconnected.
The S VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal. (Actual results depend on the television.)
The S VIDEO terminal achieves a more vivid picture than the VIDEO
terminal. (Actual results depend on the television.)
COMPONENT VIDEO terminals can be used for either interlace or
progressive output (➡ 81) and provide a purer picture than the S
VIDEO OUT terminal.
≥Connect to terminals of the same colour.
If you have a regular television (CRT: cathode ray tube)
Use component output with progressive “Off” (The default setting
➡ 65), even if it is progressive compatible, because progressive
output can cause some flickering. This is the same for multi system
televisions using PAL mode.
For progressive output (➡ 24)
∫
Connecting an amplifier with a digital input terminal
≥To enjoy multi-channel surround sound DVD-Video, connect an
amplifier with Dolby Digital, DTS and MPEG decoders.
[Required]setting]
“Digital Audio Output” in the Setup menu (➡ 64)
≥When this unit is connected to an amplifier with an Optical digital
audio cable and connected to a television with an HDMI cable, you
can enjoy the highest quality of audio from the disc by setting
“Digital Audio Output” to “Optical Only” in the Setup menu (➡ 65).
In this case audio is only output from the amplifier not the
television.
≥Before purchasing an optical digital audio cable (not included),
check the terminal shape of the connected equipment.
≥You cannot use DTS Digital Surround decoders not suited to DVD.
∫ Connecting a stereo amplifier
Other connections
Connecting a television with AUDIO/VIDEO or
S VIDEO terminals
S VIDEOVIDEO
R-AUDIO-L
OUT
S VIDEO
IN
AUDIO IN
R L
VIDEO
IN
S VIDEOVIDEO
R-AUDIO-L
OUT
S VIDEO
IN
AUDIO IN
R L
VIDEO
IN
§
§
Red White Yellow
Red White Yellow
This unit’s rear panel
Audio/Video cable
(included)
Television’s rear panel Television’s rear panel
Red White
S Video
cable
Red White
This unit’s rear panel
Connecting a VCR with AUDIO/VIDEO or
S VIDEO terminals
R L
AUDIO OUT
VIDEO
OUT
S VIDEO
OUT
R L
AUDIO OUT
VIDEO
OUT
S VIDEO
OUT
§
§
This unit’s front panel
Red White Yellow
Ye l l ow W hit e Red
Audio/Video cable
(included)
VCR’s rear panel
This unit’s front panel
S Video
cable
VCR’s rear panel
White Red
Red White
Connecting a television with COMPONENT VIDEO terminals
RF
IN
RF
OUT
AV2
(
DECODER/EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
S VIDEOVIDEO
R-AUDIO-L
PR
PB
Y
OUT
AUDIO IN
R L
PR
PB
Y
COMPONENT
VIDEO IN
§
§
Red White
Red White
Video cable
Audio/Video
cable
(included)
Television’s rear panel
This unit’s rear panel
COMPONENT VIDEO OUT
COMPONENT
VIDEO IN
CRT
This unit
Progressive output
DO NOT
Connecting an amplifier or system component
AV2
(
DECODER/EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
PR
PB
Y
OPTICAL IN
Optical digital audio cable
Do not bend sharply when
connecting.
This unit’s rear panel
Insert fully, with
this side facing
up.
Amplifier’s rear panel
S VIDEOVIDEO
R-AUDIO-L
OUT
AUDIO IN
R L
Red White
Red White
Audio cable
This unit’s rear panel
Amplifier’s rear panel
EH575.book Page 16 Tuesday, January 30, 2007 10:30 AM
