7. Operation Instructions
7.1. Taking out the Disc from DVD-Drive Unit when the Disc cannot
be ejected by OPEN/CLOSE button
7.1.1. Forcible Disc Eject
7.1.1.1. When the power can be turned off.
1. Turn off the power and press [STOP] [CH UP] keys on the front panel simultaneously for 5
seconds.
7.1.1.2. When the power can not be turned off.
1. Press [POWER] key on the front panel for over 10 seconds to turn off the power forcibly,
and press [STOP] [CH UP] keys on the front panel simultaneously for 5 seconds.
7.1.2. When the Forcible Disc Eject can not be done.
1. Turn off the power and pull out AC cord.
2. Remove the Top Case.
3. Put deck so that bottom can be seen.

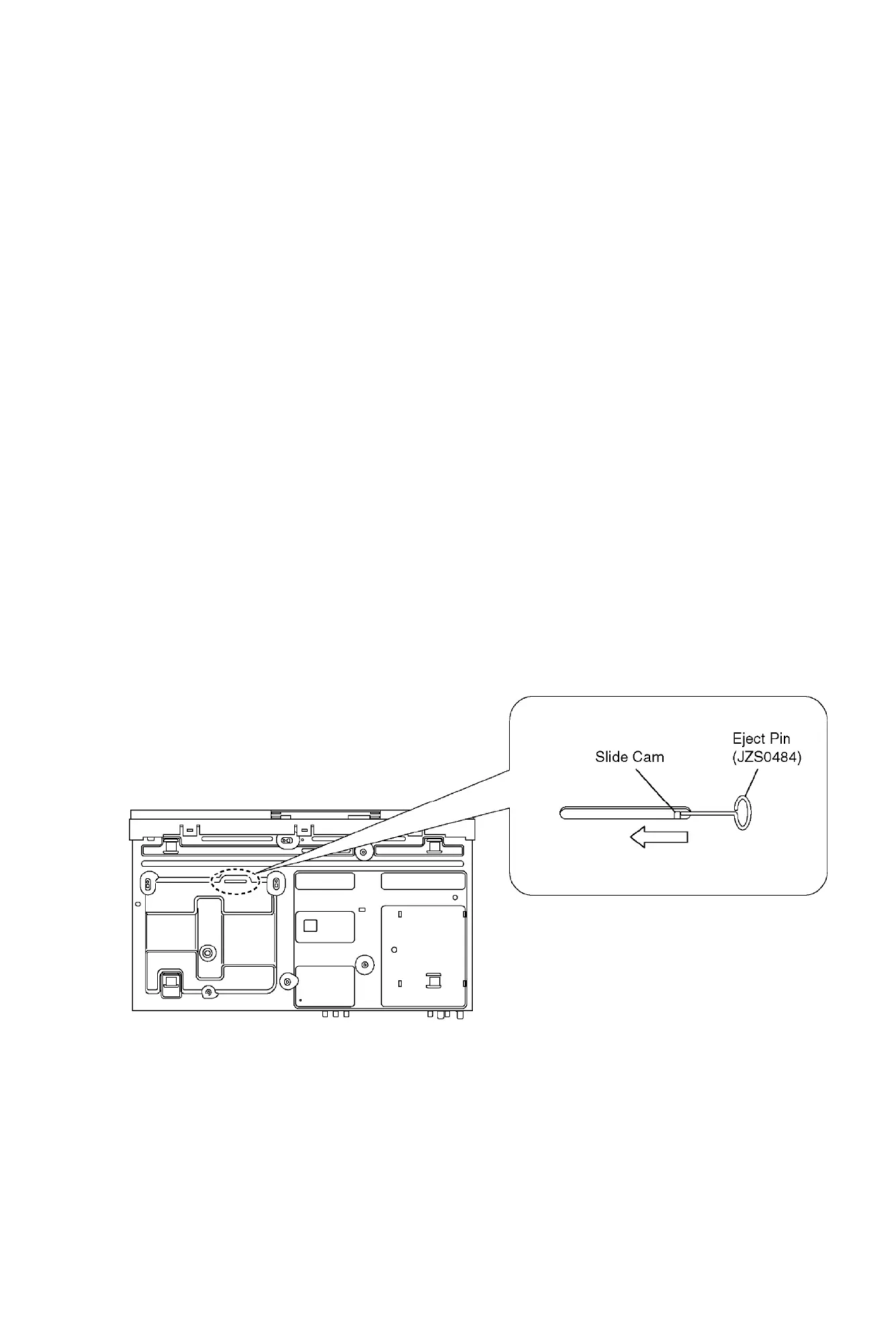

4. Slide SLIDE CAM by Eject Pin (JZJ0484) or minus screw driver (small) in the direction of
arrow to eject tray slightly.
5. Put deck upward, and push out Tray by Eject Pin (JZS0484) or minus screw driver (small).
