Part Number Description Compatibility
RFKZ0365 Extension Cable (MainP.C.B. - Digital P.C.B. / 64 Pin) New
RFKZ0240 Extension Cable (MainP.C.B. - Power P.C.B. / 19 Pin) Same as E75V/ES30V Series
JZS0484 Eject Pin Same as E50 Series
RFKZ03D01K Lead Free Solder (0.3mm/100g Reel) New
RFKZ06D01K Lead Free Solder (0.6mm/100g Reel) New
RFKZ10D01 Lead Free Solder (1.0mm/100g Reel)) New
RFKZ0316 Solder Remover (Lead free 10W temperature Solder/180g) New
RFKZ0328 Flux New
RFKZ0329 Bottle of Flux New
10. Disassembly and Assembly Instructions

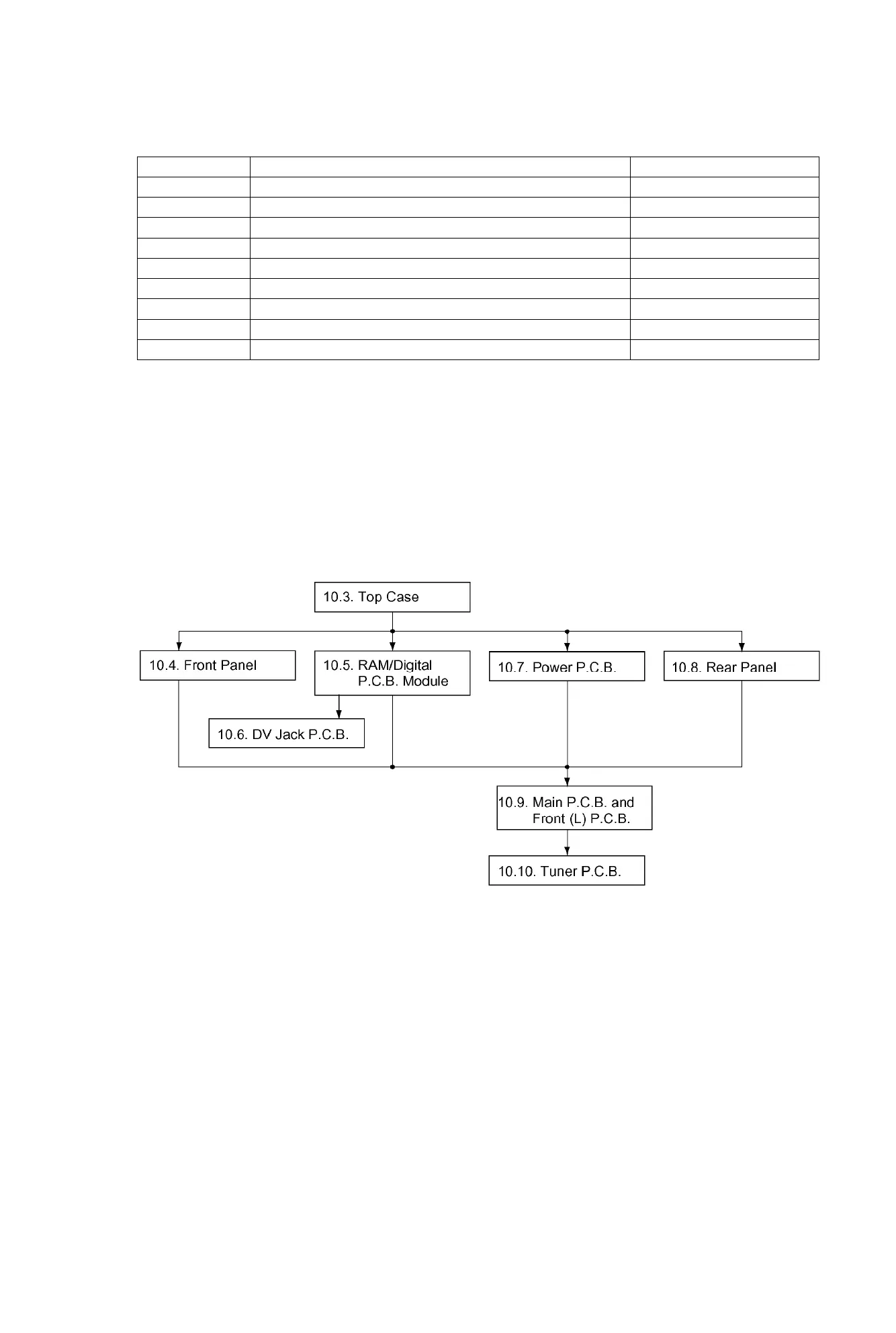

10.1. Disassembly Flow Chart
The following chart is the procedure for disassembling the casing and inside parts for
internal inspection when carrying out the servicing.
To assemble the unit, reverse the steps shown in the chart below.
10.2. P.C.B. Positions
34
