Panasonic DMR-EX768EB - Basic Connection; Connecting to a Television Only

10
RQT9167
 Before connection, turn off the mains for all connected equipment and read the appropriate operating
instructions.
Be sure to read the Caution for AC Mains Lead on page 3.

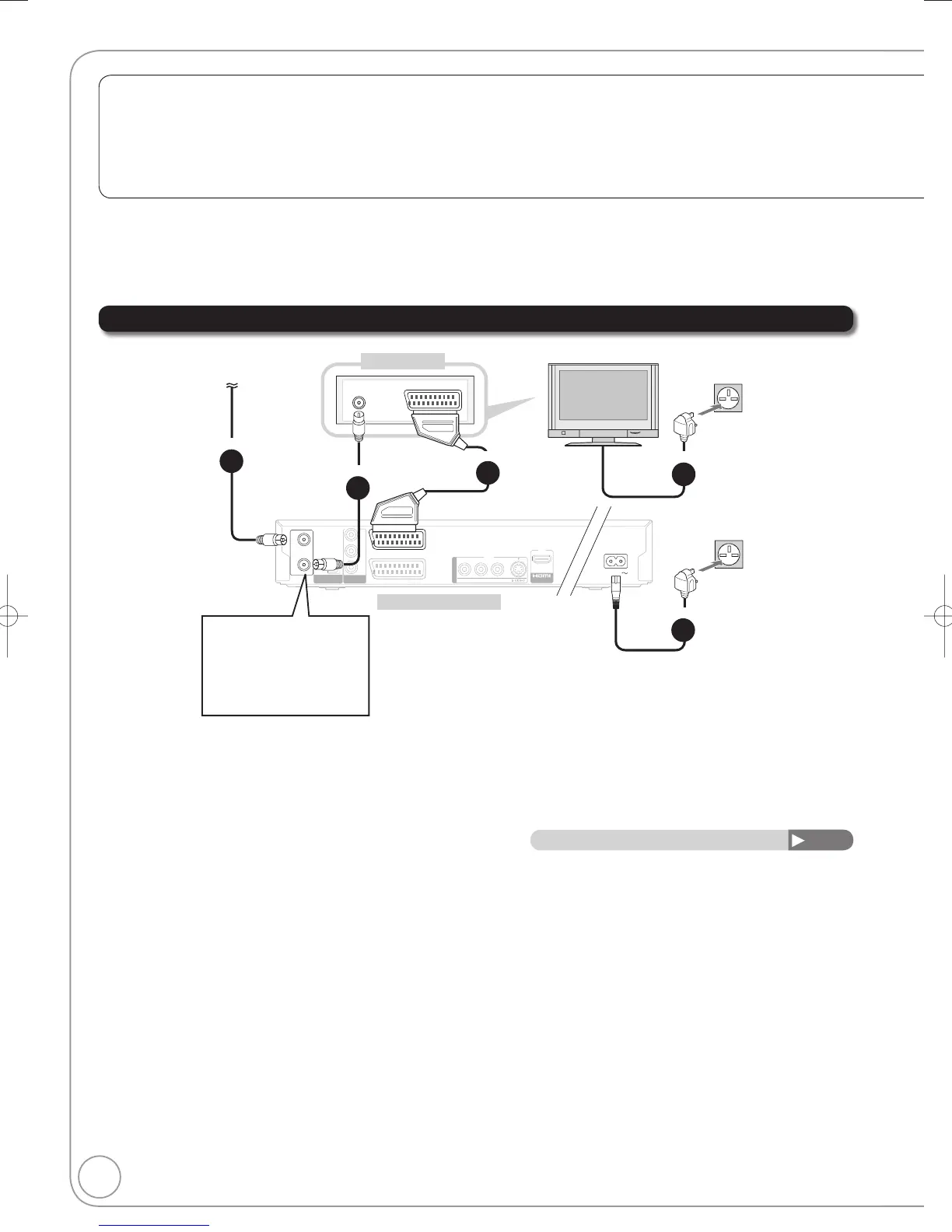

Connecting to a Television only
 Aerial cable to the “RF IN” on the unit.
 RF coaxial cable (included) from the “RF OUT” on the unit to the “RF IN” on the TV.
 21-pin Scart cable from the “AV1 (TV)” on the unit to the “AV” on the TV.
 AC mains lead (included) from the “AC IN~” on the unit and the TV to a household mains socket.
After completing the above connections, proceed to the TV Tuning (¼ 13).
Connections other than the 21-pin Scart cable 12, 69
Basic Connection
Rear of this unit
Rear of TV
RFRF
ININ
RFRF
OUTOUT
AV1
(
TV
)
OPTICAL
DIGIDIGITAL AL AUDIO OUUDIO OUT
(PCM/BITSTREAM)
(PCM/BITSTREAM)
COMPONENTCOMPONENT
VIDEO OUTVIDEO OUT
VIDEO
R-
A
UDIO-
L
P
R
P
B
Y
OUTOUT
AAV OUV OUTT
A
V2
A
A
(
EXT
)
AC IN
OUT
AV OUT
RF IN
AV
2
Step
1
Step
3
Step
4
Step
4
Step
The RF coaxial cable cannot
be used for showing pictures
from the unit. The unit must
be connected using another
method, e.g. 21-pin Scart
cable to show pictures from
the unit on the television set.
To the aerial
To household
mains socket
To household
mains socket
Use of the RF coaxial cable
 Keep the RF coaxial cables as far away as possible from other cables.
 Do not roll up the RF coaxial cables.
