13
Ceiling / 天花板
Approximately 5mm /
大約 5毫米
Upper Canopy /
上罩蓋
(80.6)
(62~64)
(7~8)
(4~5)
(4~5)
(80.6)
(57)
(9~10)
L1 L2
L1
200V Class Regulator / 200V 等級調節器
F)

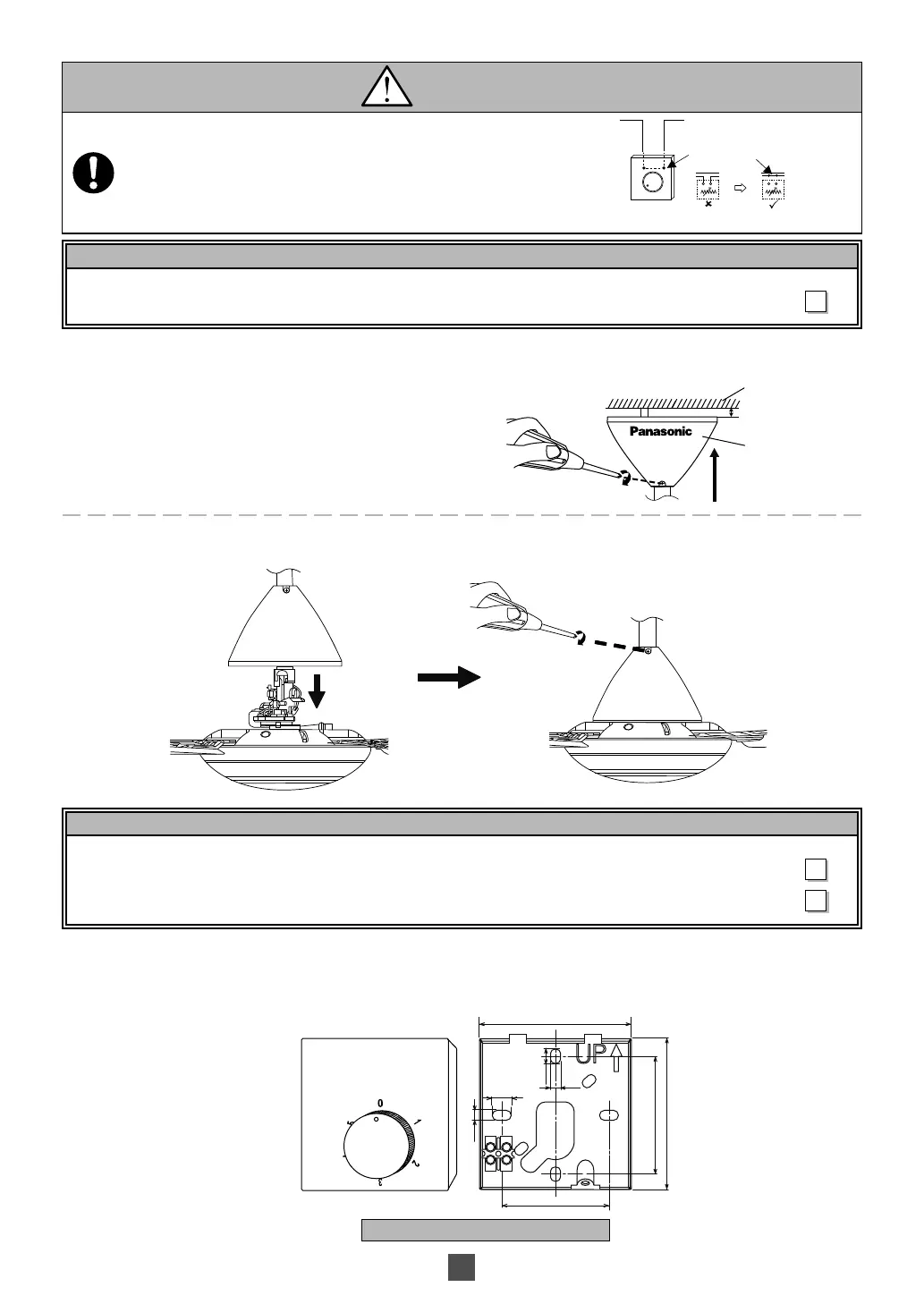

Fix the Canopy /
安裝罩蓋
1
1
Adjust Upper Canopy position and fi x Upper Canopy
to Pipe fi rmly by screwing them as shown.
The distance of Upper Canopy and Ceiling is approximately 5mm.
調整上罩蓋的位置，然後如圖所示將上罩蓋旋緊至導管。
上罩蓋與天花板的距離大約是 5 毫米。
G)
Installation of Speed Regulator /
調速器的安裝
1
1
The dimension for the Speed Regulator is shown in the Diagram.
調速器的尺寸如圖所示。
CAUTION /
注意
Should there be a dimmer switch, disconnect it and reconnect the wiring as shown.
如果有調光開關，切斷該連接，然後如圖所示再次進行接線。
Connect Directly /
直接連接
Power Supply / 電源
Dimmer Switch /
調光開關!
2
2
Pull down Lower Canopy untill it stop and fi x to Pipe fi rmly by screwing them as shown.
如圖所示拉下下罩蓋直至下罩蓋停止，然後將之旋緊至導管。
Check Point After Installation /
安裝後的重點檢查
Check / 檢查
1. The wiring is connected properly to the power supply.
電線已正確地連接了電源線。
Check Point After Installation /
安裝後的重點檢查
Check / 檢查
1. The Upper Canopy is securely fi xed.
上罩蓋已固定。
2. The Lower Canopy is securely
fi x e d .
下罩蓋已固定。
