Wood Screw / 木螺絲
Holes / 孔
Wall Plug / 壁式插座
Live Wire / 火線
L
1
Speed Regulator Base /
調速器基地
Terminal 1 / 端子 1
Screw / 螺絲
Regulator Cover/
調節器蓋子
L 1
Switch /
開關
Live Wire /
火線
2
2

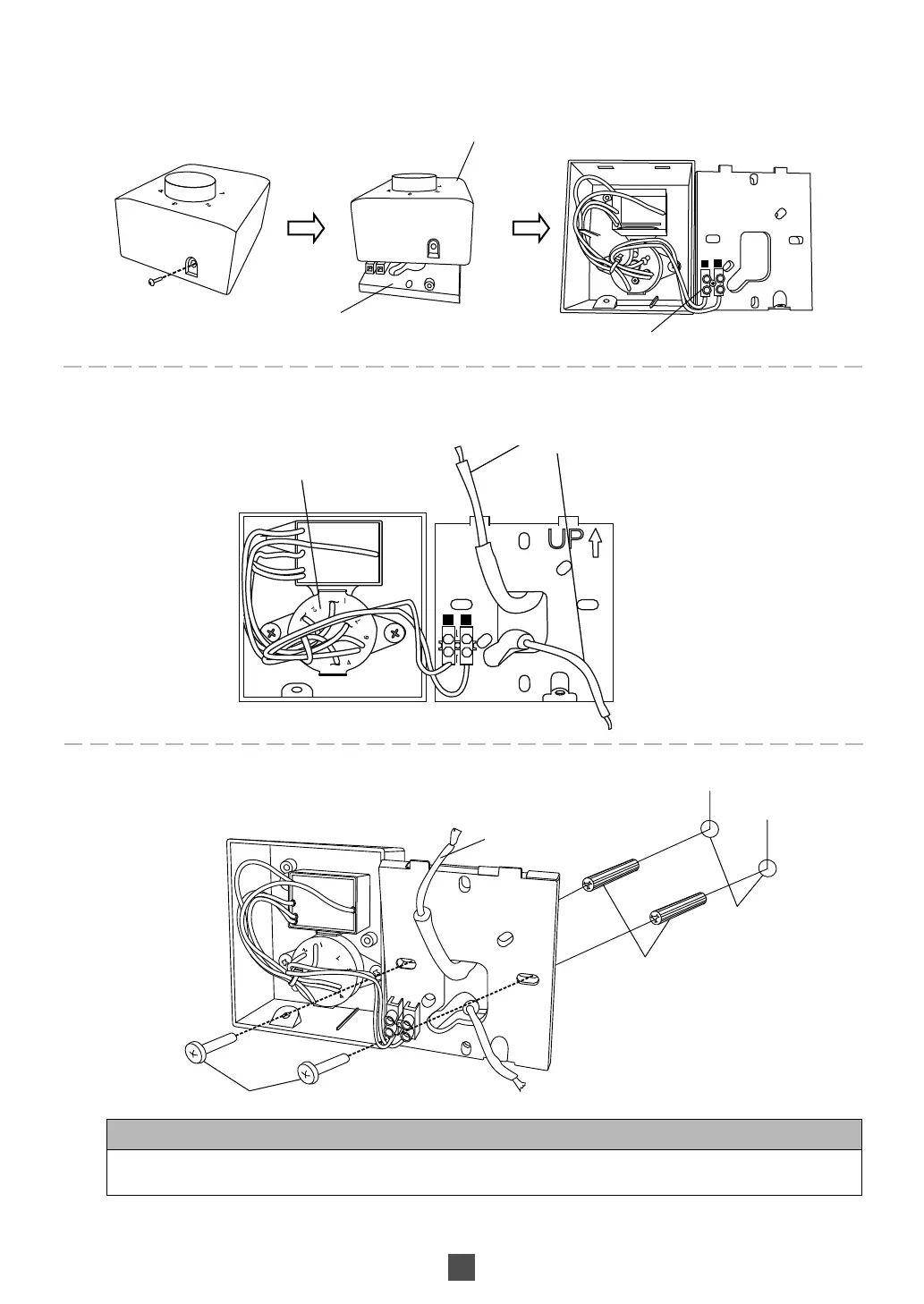

Loosen the screw from the Speed Regulator Cover. Open the Speed Regulator by lifting up the Speed Regulator Cover from the base.
鬆開調速器蓋子上的螺絲。從底部提起調速器蓋子以打開調速器。
3
3
Insert the live wire from the wall through the hole of the Speed Regulator Base as shown.
如圖所示將火線從牆壁通過調速器底部的孔插入。
4
Fix the Speed Regulator box to the wall by screwing the screws as shown.
如圖所示鎖緊螺絲以安裝調速器箱至牆壁。
ATTENTION /
留意留意
Wood Screw and Wall Plug is not supplied.
木螺絲和壁式插座並不提供 。
