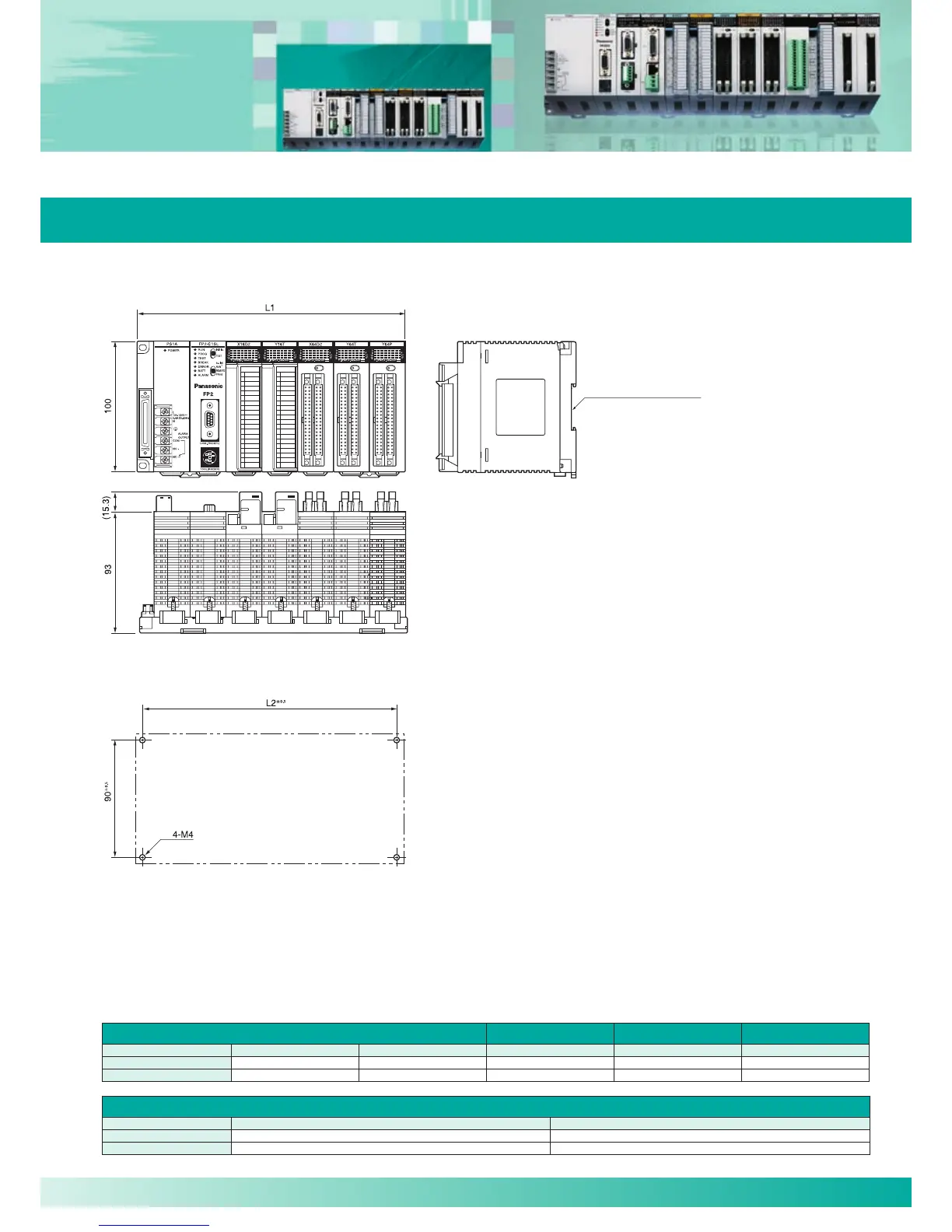

Dimensions
FP2/FP2SH
DIN rail mounting groove
(35-mm wide DIN EN50022)
* The illustration shows a conventional 7-module type backplane.
Mounting dimension (Tolerance: 1.0)
in mm
FP2/FP2SH
Product Types
Conventional backplanes
5-module 7-module 9-module 12-module 14-module
L1 (mm) 140 209 265 349 405
L2 (mm)
130 199 255 339 395
H type backplane
11-module (master backplane) 10-module (expansion backplane)
L1 (mm) 349 349
L2 (mm)
339 339
