Panasonic FZ-10

r®
Connect the
control pad.
r,
Player
AC1 20V outlet
/TT\ Connect the
V^Jy
power cord.

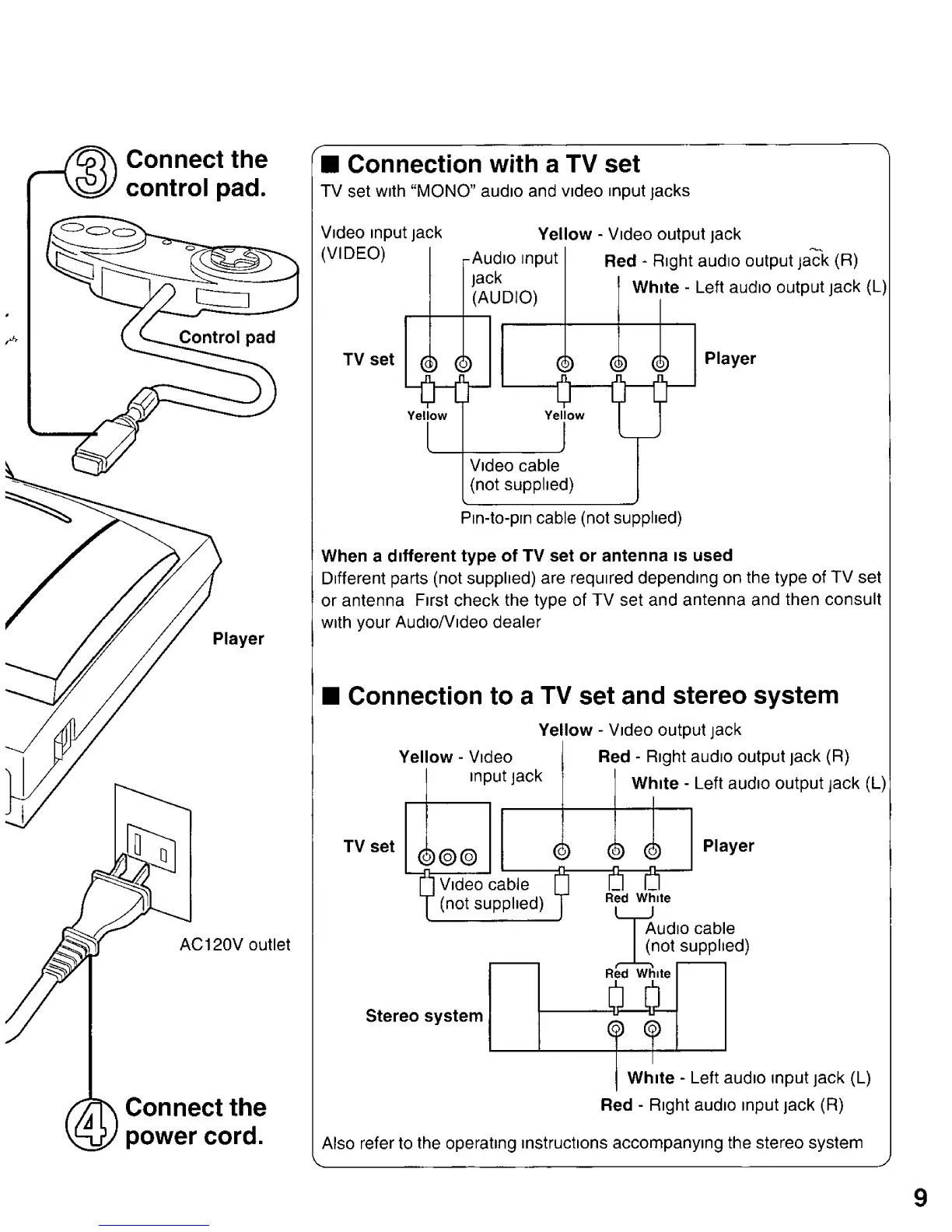

Connection
with a TV set
TV
set
with
"MONO"
audio and video
input jacks
"A
Video input jack
(VIDEO)
Yellow
-
Video output jack
TV set
r
Audio
input
jack
(AUDIO)
i<
I
Yellow
Red
-
Right
audio
output
jack
(R)
White
-
Left audio
output
jack (L)
Player
Video cable
(not supplied)
Pin-to-pin cable (not
supplied)
When
a
different type of TV set or
antenna is used
Different parts
(not
supplied)
are required
depending
on the type of
TV
set
or
antenna
First
check
the type of TV set and
antenna and then
consult
with
your Audio/Video dealer
Connection to a
TV
set
and stereo
system
Yellow
-
Video output
jack
Yellow
-
Video
input
jack
TV set
Video cable
(not
supplied)
Red
-
Right audio output
jack
(R)
White
-
Left
audio
output jack (L)
Player
Audio cable
(not
supplied)
Stereo system
White
-
Left audio input jack (L)
Red
-
Right audio input jack (R)
Also
refer
to
the operating instructions accompanying the
stereo
system
