Framework
1.1
Device External Cable

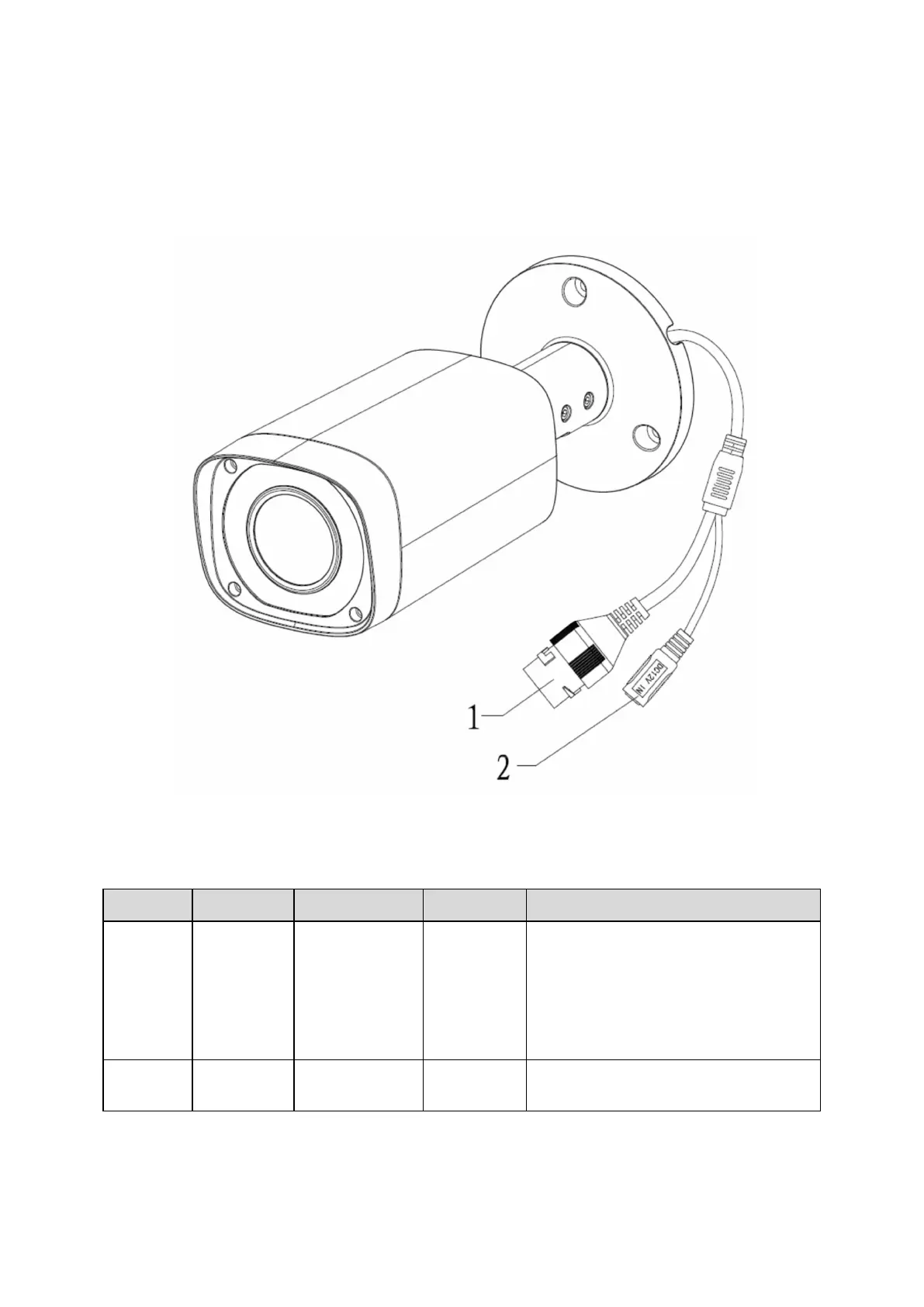

You can refer to the following figure for device external cable information. See Figure 1-1.
Figure 1-1
Please refer to the following sheet for detailed information.
SN Port Port Name Connection Note
1 LAN Network port
Ethernet
port
Connect to standard Ethernet cable.
Note:
Before making crystal head, pull the
anti-dust cover (default), waterproof
cover (optional) through network
cable.
2 DC 12V
Power input
port
- Power port. Input DC 12V.
