Preparation
10
VQT0V86

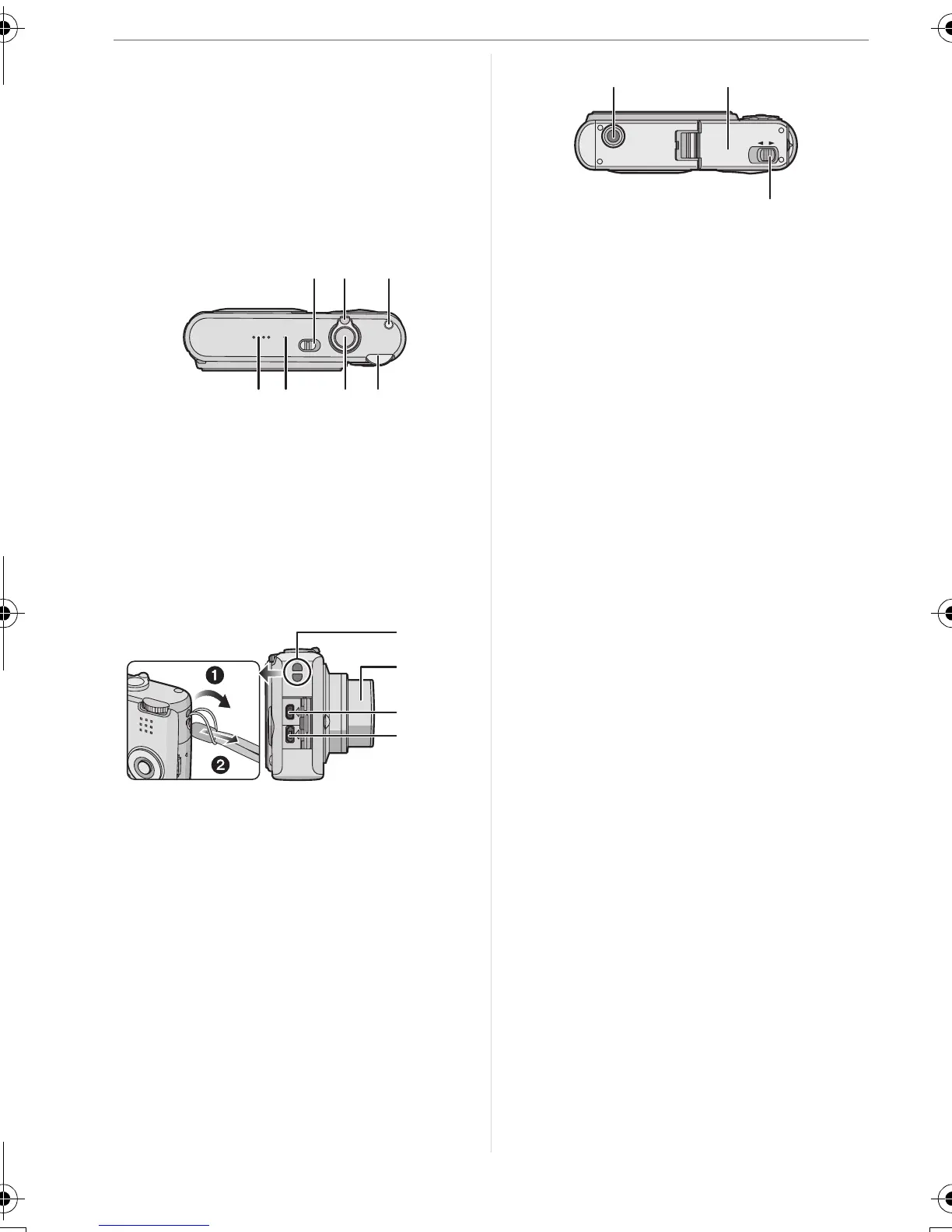

(P64)/Backlight compensation in simple
mode (P26) button
6 [MENU/SET] button (P17)
7 Status indicator (P12)
8 [DISPLAY/LCD MODE] button
(P33, 35)
9 Single or burst mode (P44)/
Delete (P31) button
10 Camera ON/OFF switch (P11, 16)
11 Zoom lever (P27)
12 Optical image stabilizer button (P43)
13 Speaker (P61)
14 Microphone (P56, 66, 76)
15 Shutter button (P22, 56)
16 Mode dial (P5)
17 Strap eyelet
18 Lens barrel
19 [DIGITAL/AV OUT] socket (P80, 82, 86)
20 [DC IN] socket (P80, 82)
•
Always use genuine
Panasonic AC
adaptor (DMW-AC5; optional).
• This camera cannot charge the battery
even though the AC adaptor (DMW-AC5;
optional) is connected to it.
21 Tripod receptacle
• When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
22 Card/Battery door (P13, 14)
23 Release lever (P13, 14)
10
13
11
14 15 16
12
DIGITAL
AV OUT
DC IN
17
18
19
20
OPEN LOCK
21 22
23
