Before Use
- 8 -

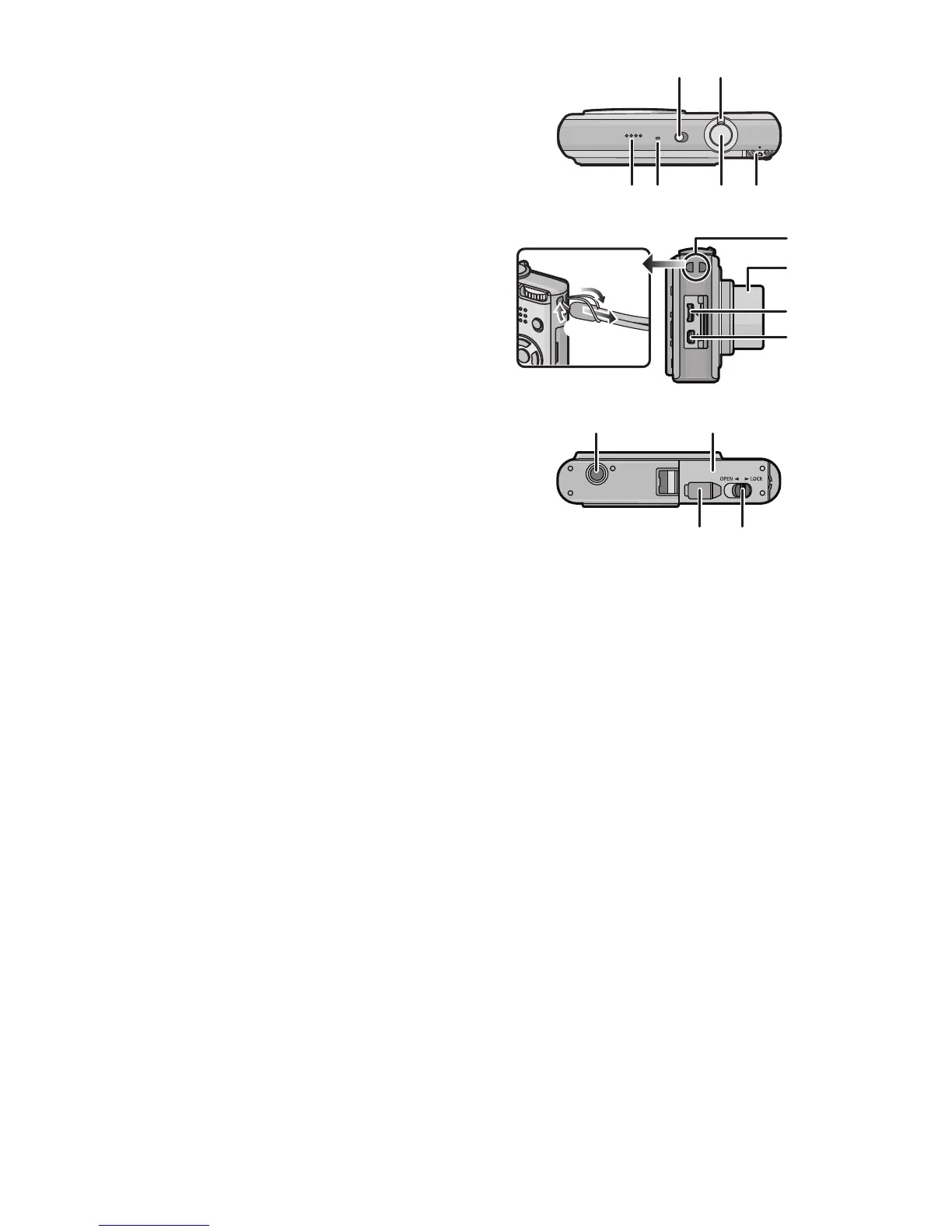

11 Camera ON/OFF switch (P18)
12 Zoom lever (P40)
13 Speaker (P108)
14 Microphone (P73, 97, 122)
15 Shutter button (P32, 73)
16 Mode dial (P30)
17 Hand strap eyelet
•
Be sure to attach the hand strap when
using the camera to ensure that you will
not drop it.
18 Lens barrel
19 [COMPONENT OUT] socket (P135)
20 [AV OUT/DIGITAL] socket (P124, 127,
133)
21 Tripod receptacle
•
When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
22 Card/Battery door (P14)
23 Release lever (P14)
24 DC coupler cover (P15)
•
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used. For
connection details, refer to P15.
11 12
13 14 15 16
18
20
19
1
21 22
2324
