Preparations
26

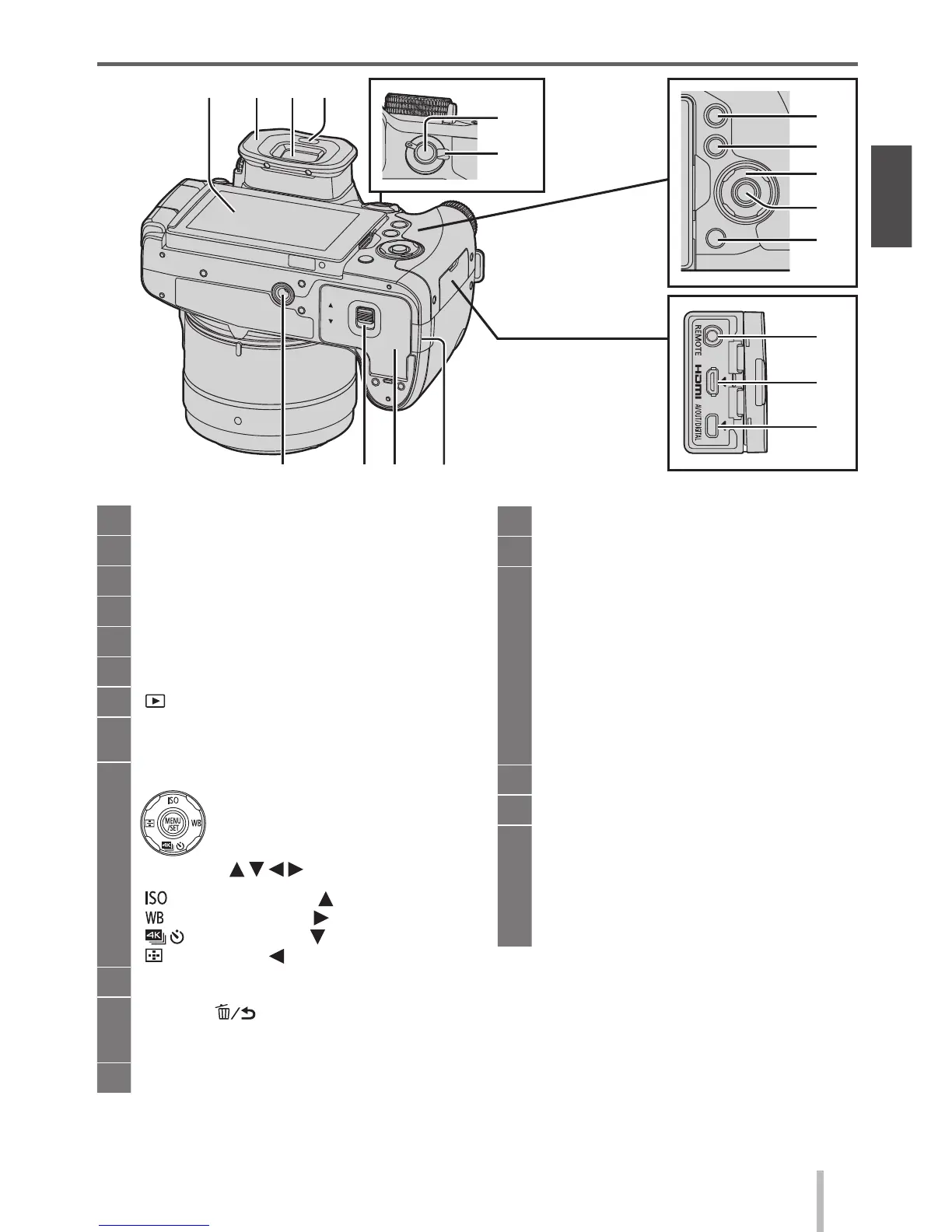

Touch screen / monitor (→17, 22, 48)
27
Eye cup
28
Viewfinder (→22)
29
Eye sensor (→22)
30
[AF/AE LOCK] button
31
Focus mode lever (→19)
32
[ ] (Playback) button (→36)
33
[DISP.] button
Use this to change display.
34
Cursor button
• Selection of items or setting of
values etc., is performed.
• In this manual, the button that
is to be used is indicated by
.
[ ] (ISO sensitivity) ( )
[
] (White Balance) ( )
[
] (Drive Mode) ( ) (→30)
[
] (AF Mode) ( )
35
[MENU/SET] button
36
[Q.MENU ] (Delete/Cancel) button
(→24, 38) /
[Fn3] button (→24)
37
[REMOTE] socket
38
[HDMI] socket
39
[AV OUT/DIGITAL] socket
40
DC coupler cover (→15)
• Always use a genuine Panasonic AC
adaptor (DMW-AC10E: optional).
• When using an AC adaptor, ensure
that the Panasonic DC coupler (DMW-
DCC8: optional) and AC adaptor
(DMW-AC10E: optional) are used.
• When using an AC adaptor, use the
AC mains lead supplied with the AC
adaptor.
41
Card/Battery door (→15)
42
Release lever (→15)
43
Tripod mount
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inch) or more. Doing so may
damage this unit or the unit may not be
secured properly on the tripod.
